IR-1100-SPMI Expansion Module LEDs
There are 6 LEDs in the Expansion Module. Four LEDs show the status of digital input and output. One LED
shows the SFP port status and one LED shows the mSATA status. The LED behavior is shown in Table 5 .
Table 5: Expansion Module LEDs
DefinitionLED
Off - InactiveSolid Yellow- ActiveDigital I/O as Input
Off - InactiveSolid Yellow- ActiveDigital I/O as Output
Off - No LinkSolid Yellow - Port link with no activityFlashing Yellow - Port link healthy with activitySFP
Off - Not powered on or no activityFlashing Green - mSATA being accessedmSATA
Cisco IR-1100-SP Expansion Module
The IR-1100-SP Expansion Module is the same as the IR-1100-SPMI module, without the Digital I/O and
mSATA components.
The following lists the hardware platform features for the Cisco IR-1100-SP:
• 1 GE SFP (see the supported list of SFP’s here: SFP Module, page 26 )
• 1 Pluggable slot
Cisco Pluggable Module
The Pluggable Module provides the flexibility of adding different interfaces to the IR1101 platform, for
example, a cellular module.
Pluggable LTE Module
Highlights of the LTE Pluggable Module are:
• All Cellular interfaces are supported through a Pluggable Module
• Micro-Sim, 3FF size. Cisco recommends Industrial Temp micro SIMs that are rated from -40C to +105C.
Figures Figure 8 and Figure 9 show an example of a Pluggable Module. In this case, the LTE Pluggable
Module.

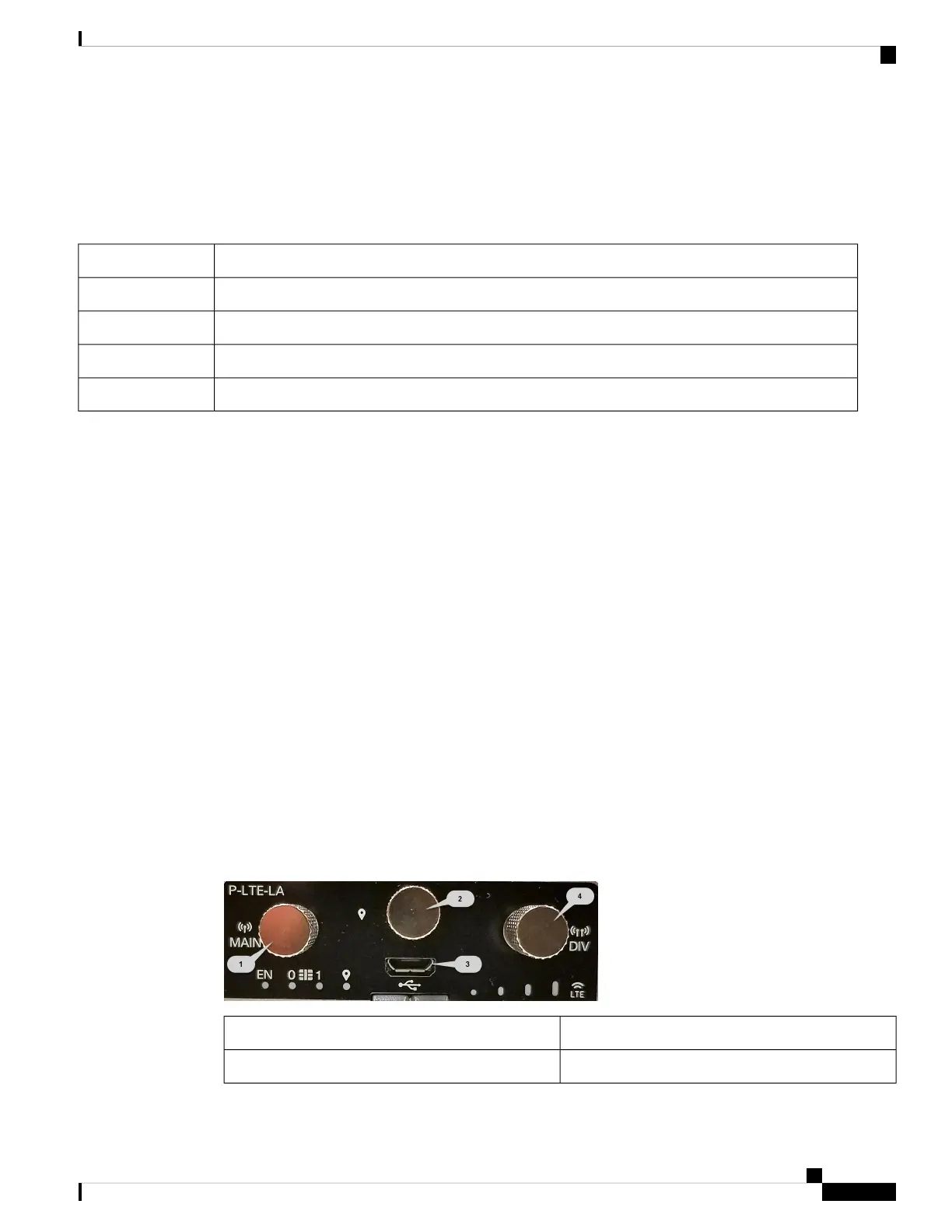

Figure 8: LTE Pluggable Module (front)
LTE-Main SMA1
GPS SMA2
IR1101 Industrial Integrated Services Router Hardware Installation Guide
17
