Cisco NCS 5000 Series Hardware Installation Guide

The Cisco NCS 5001 router is a small form factor dense GE/10GE aggregation systems. Powered by industry
leading routing operation system, IOS-XR, the system also offers rich functions such as third party application
hosting, machine-to-machine interface, telemetry and flexible package delivery.

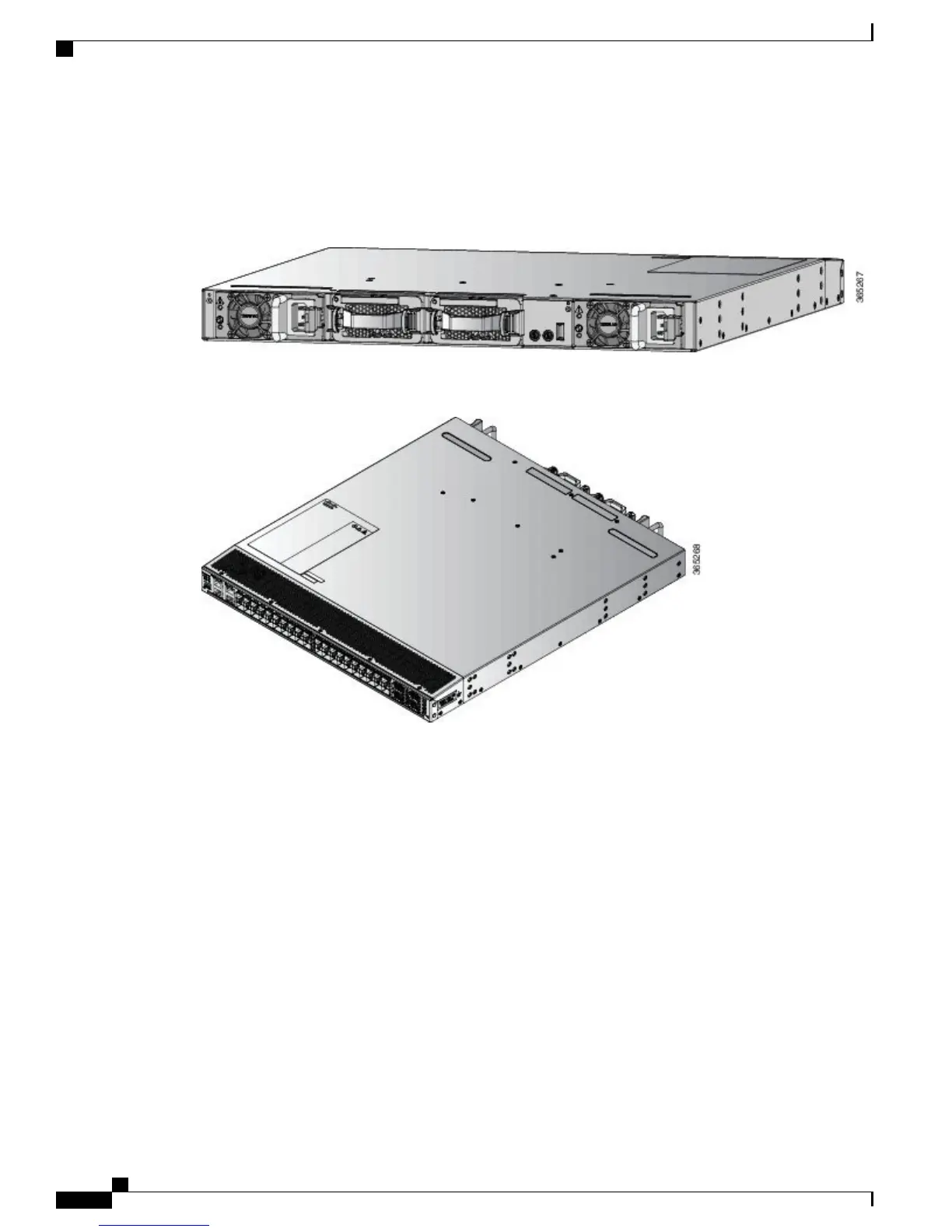

Figure 1: Cisco NCS 5001 Router - Back (Fan Side) View
Figure 2: Cisco NCS 5001 Router - Front (Port Side) View
Ports
Cisco NCS 5001 router consists of the following ports:
•
40 x One GE/10GE SFP+ ports
◦
16 x Regular 10G SFP+ Ports
◦
24 x DWDM and ZR Capable 10G SFP+ Ports (Purple in color)
•
4 x 100G QSFP28 ports (Light Green in color)
Features
The Cisco NCS 5001 router has the following features:
•
Two 1+1 redundant, hot-swappable power supplies, which provide port side intake or exhaust for cooling
•
Two 1+1 redundant, hot-swappable fan modules, which provide port side intake or exhaust for cooling
