Chapter 9 Replacement Procedures
Replacing the Front Doors and Frame Assembly on the Cisco Nexus 7010 Chassis
Installing the Front Doors and Frame Assembly
After you have finished moving the chassis to its rack (or after you have removed the doors and frame
for their replacement), you can install the front doors and frame assemblies.
To install the front doors and frame assembly, follow these steps:
Step 1 Align the bottom frame assembly so that its four screw holes align to screw holes in the bottom of the
chassis, and then screw in four M4 x 6 mm screws to attach the bottom frame to the chassis (see
Figure 9-20).

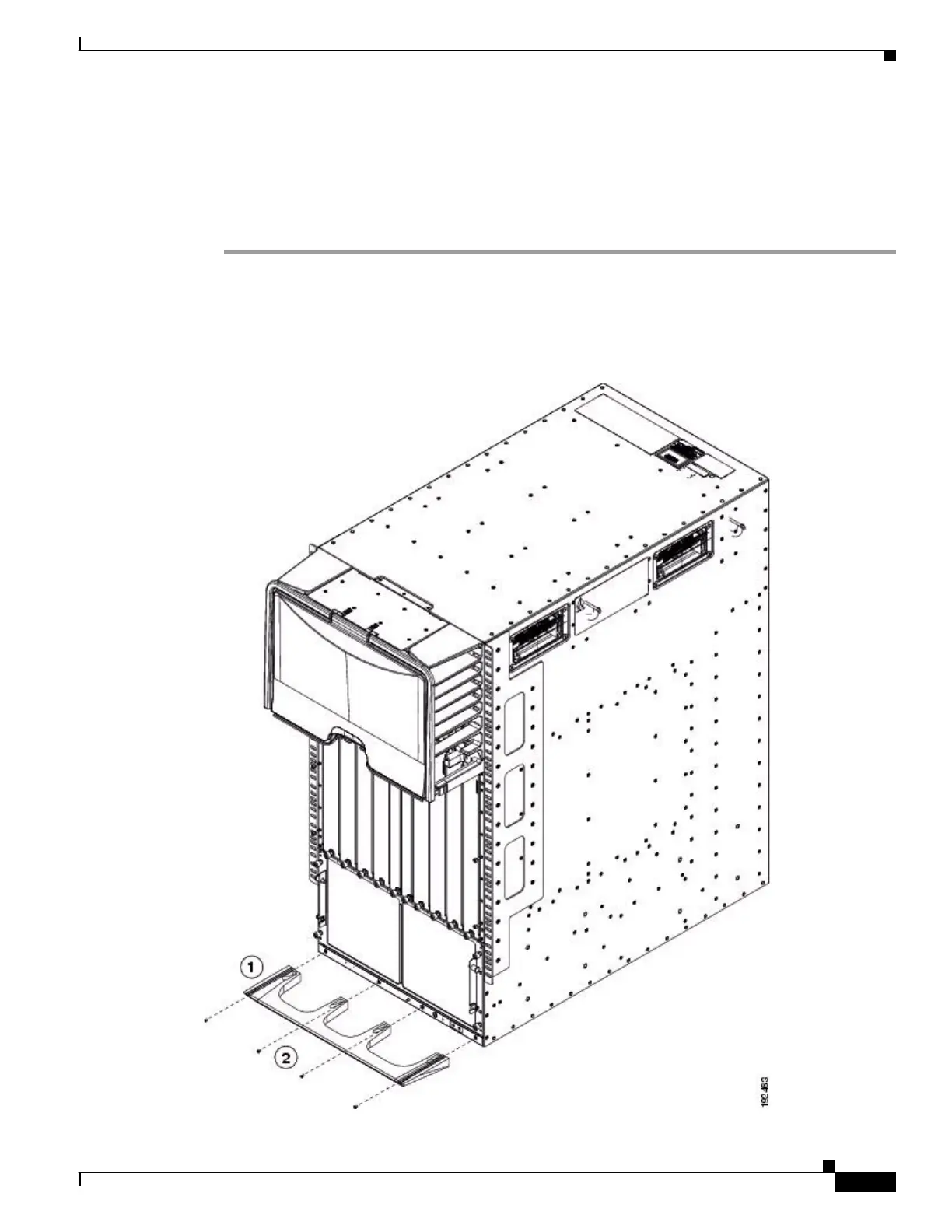

Figure 9-20 Installing the Bottom Frame
