Cisco Nexus 7000 Series Hardware Installation And Reference Guide

Send document comments to nexus7k-docfeedback@cisco.com
3-16
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-06
Chapter 3 Installing a Cisco Nexus 7010 Chassis
Installing and Formatting CompactFlash Cards

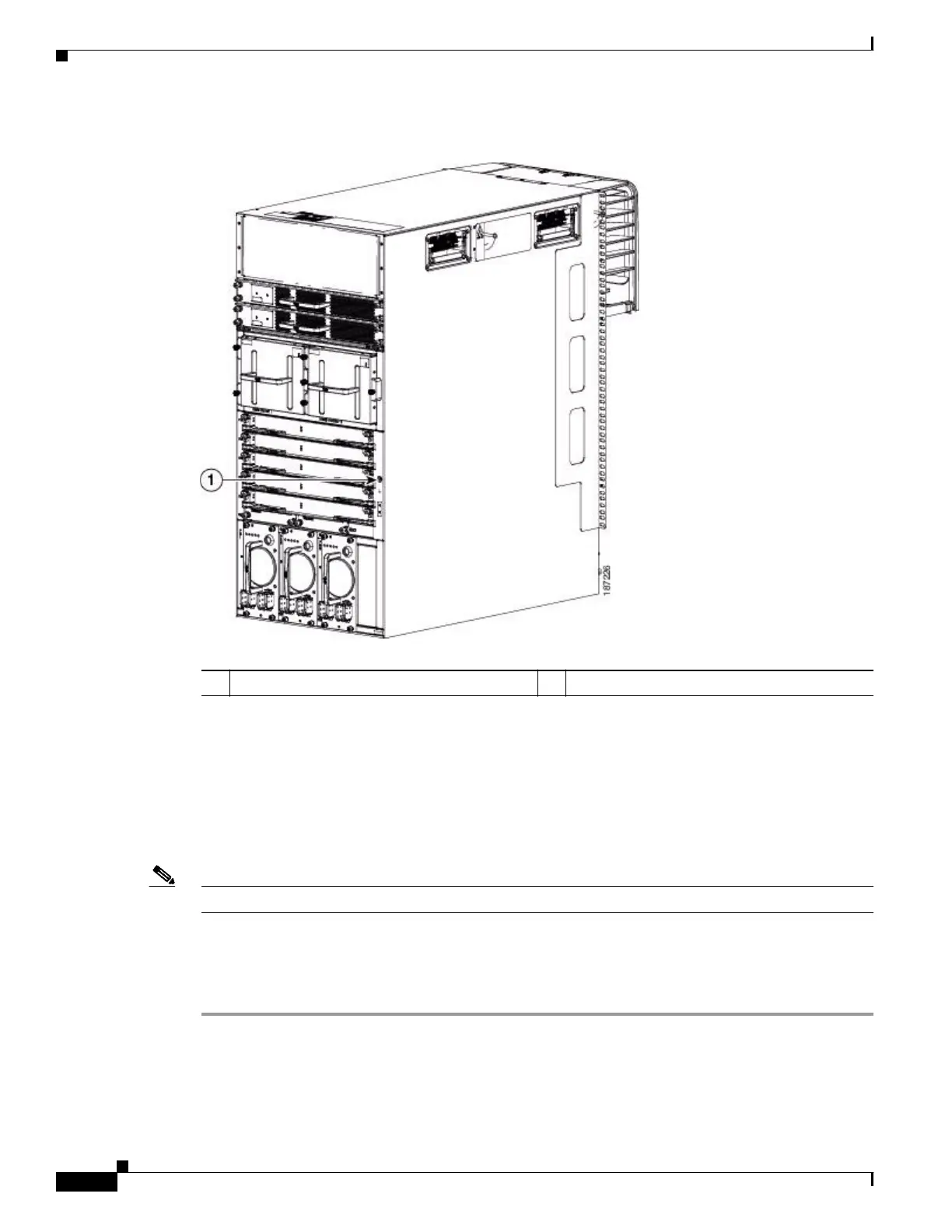

Figure 3-9 ESD Grounding Port on the Rear of the Cisco Nexus 7010 Chassis
Installing and Formatting CompactFlash Cards
Each supervisor module on a Cisco Nexus 7000 Series switch is shipped with a CompactFlash card
installed in the LOG FLASH reader. The EXPANSION FLASH reader is left empty, but you can
optionally install a card in that reader. For the card to function with the reader, you must make sure that
it is either formatted for the reader before installing it or format it after installing it.
Note The LOG FLASH and EXPANSION FLASH readers require different formats for their cards.
To replace an installed CompactFlash card, see the “Replacing a CompactFlash Card” section on
page 9-41.
To install a CompactFlash card, follow these steps:
Step 1 Align the card with the slot for the CompactFlash reader slot labeled LOG FLASH or EXPANSION
FLASH as shown in Figure 3-10. The grooves on the thin side of the card must begin on the end of the
card that goes into the reader first.
1 ESD grounding port

Cisco Nexus 7000 Series Specifications

General

Chassis	Modular
Operating System	Cisco NX-OS
Latency	Sub-microsecond
IPv6 Support	Yes
Redundancy	Power supplies, fans, supervisors, fabric modules
Power Supply	AC or DC
Layer Support	L2, L3
Network Management	CLI, SNMP
Virtualization	VRF, vPC
Ports	10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Fibre Channel, Fibre Channel over Ethernet (FCoE)
Supported Modules	Various (1G, 10G, 40G, 100G)
Features	FCoE, OTV, LISP
MPLS Support	Yes
Quality of Service (QoS)	Yes
Security Features	ACLs, Cisco TrustSec, Control Plane Policing (CoPP)
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5 to 95% noncondensing
MTBF	Varies by model
Number of Slots	Varies by model (9-slot, 10-slot, 18-slot)
