Chapter 4 Installing a Cisco Nexus 7010 Chassis
Installing the Front Doors and Frame Assembly

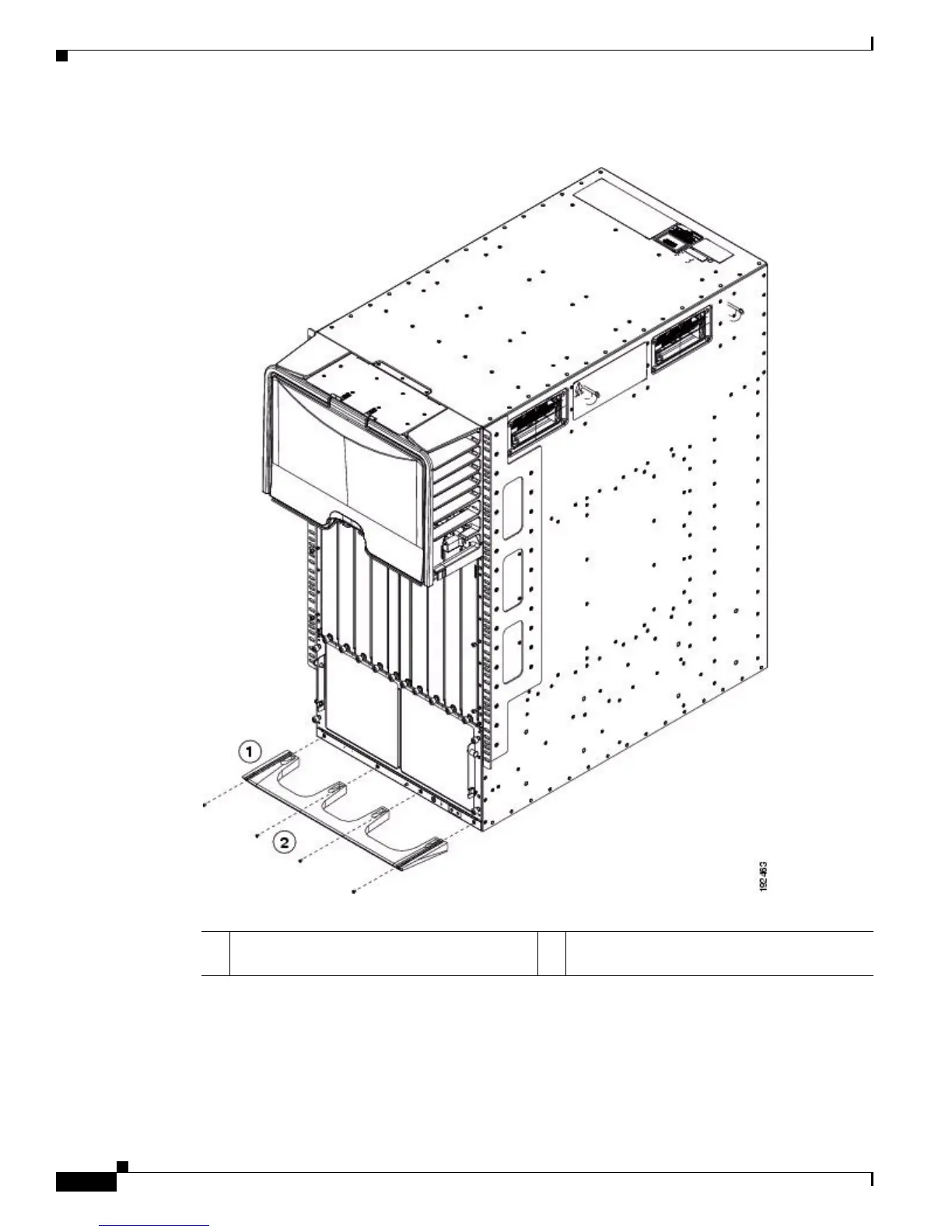

Figure 4-11 Installing the Bottom Frame
Step 2
For each of the two front doors, match the two alignment pins on the door frame to the alignment holes
on the chassis. Position each door frame immediately under the cable management area (see
Figure 4-12).
1 Bottom frame assembly with screw holes
aligned to screw holes in chassis
2 Four M4 x 6 mm screws
