Chapter 4 Installing a Cisco Nexus 7010 Chassis
Installing the Front Doors and Frame Assembly

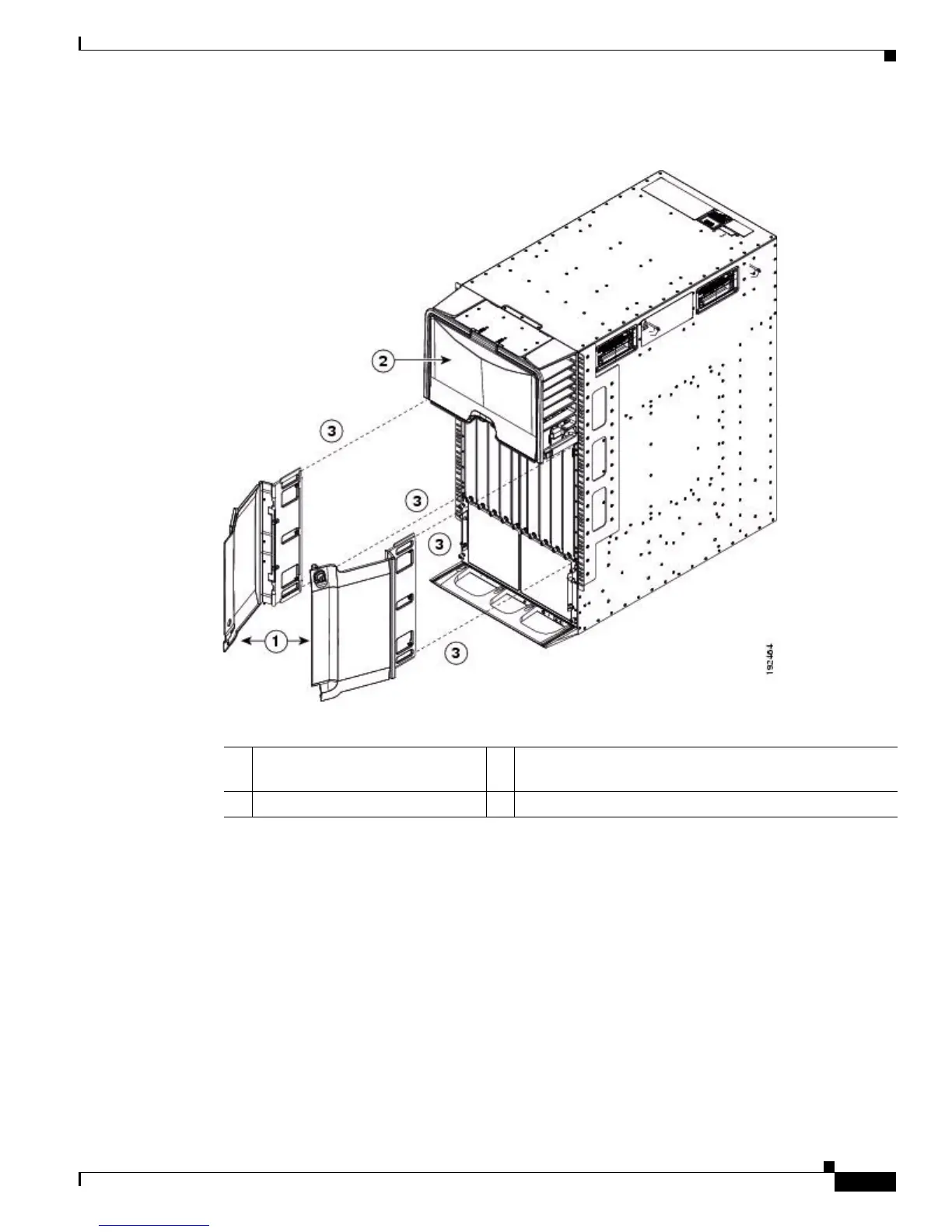

Figure 4-12 Installing the Front Doors
Step 3
Tighten three screws for each door frame (see Figure 4-13).
1 Front door frames. 3 Place door frame on front edge of chassis and
immediately under the cable management area.
2 Cable management area.
