5-17
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 5 Installing a Cisco Nexus 7018 Chassis
Installing the Cable Management Frame
To install the cable management assemblies on the Cisco Nexus 7018 switch chassis, follow these steps:
Step 1 Attach a lower cable management assembly (800-31343-01) onto the two hooks that protrude from the
lower half of the left rack-mount bracket that is attached to the Cisco Nexus 7018 switch chassis, and
loosely fasten the assembly to the chassis with four flat-head M4x10 screws as shown in Figure 5-8.

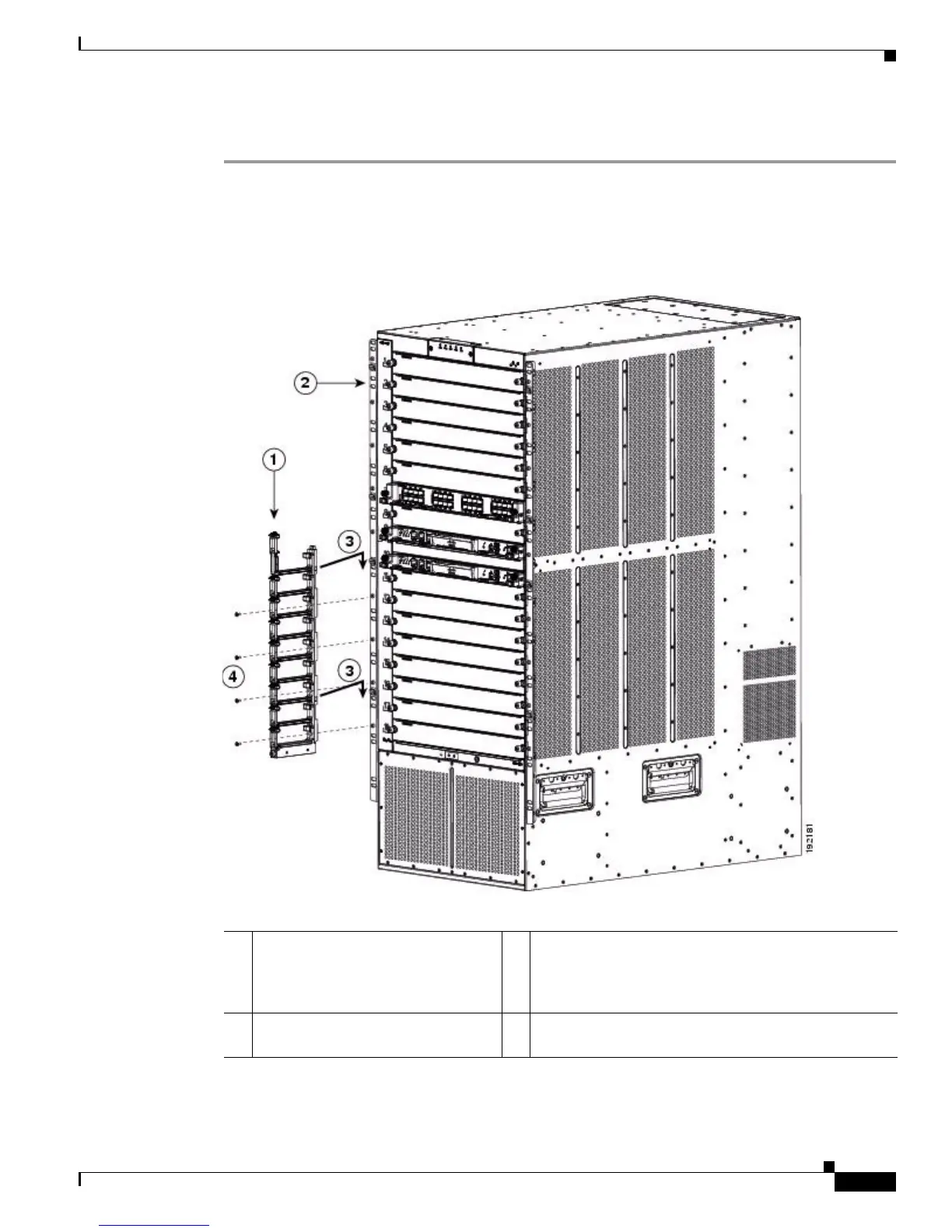

Figure 5-8 Attaching a Lower Cable Management Assembly to a Rack-Mount Bracket
Step 2
Repeat Step 1 to attach a lower cable management assembly to the right side of the chassis.
1 Lower cable management assembly. 3 Position the assembly so that the two lower hooks on
the rack-mount bracket fit inside the two holes on the
assembly, and then slide the assembly down so that it is
held by the hooks.
2 Rack-mount bracket. 4 Loosely fasten the assembly to the rack-mount bracket
with four M4x10 screws. Do not tighten these screws.
