Chapter 5 Installing a Cisco Nexus 7018 Chassis
Installing the Cable Management Frame
Step 3 Attach an upper cable management assembly (800-31342-01) onto the two hooks that protrude from the
upper half of the left rack-mount bracket that is attached to the Cisco Nexus 7018 switch chassis, and
loosely fasten the assembly to the chassis with four flat-head M4x10 screws as shown in Figure 5-9.

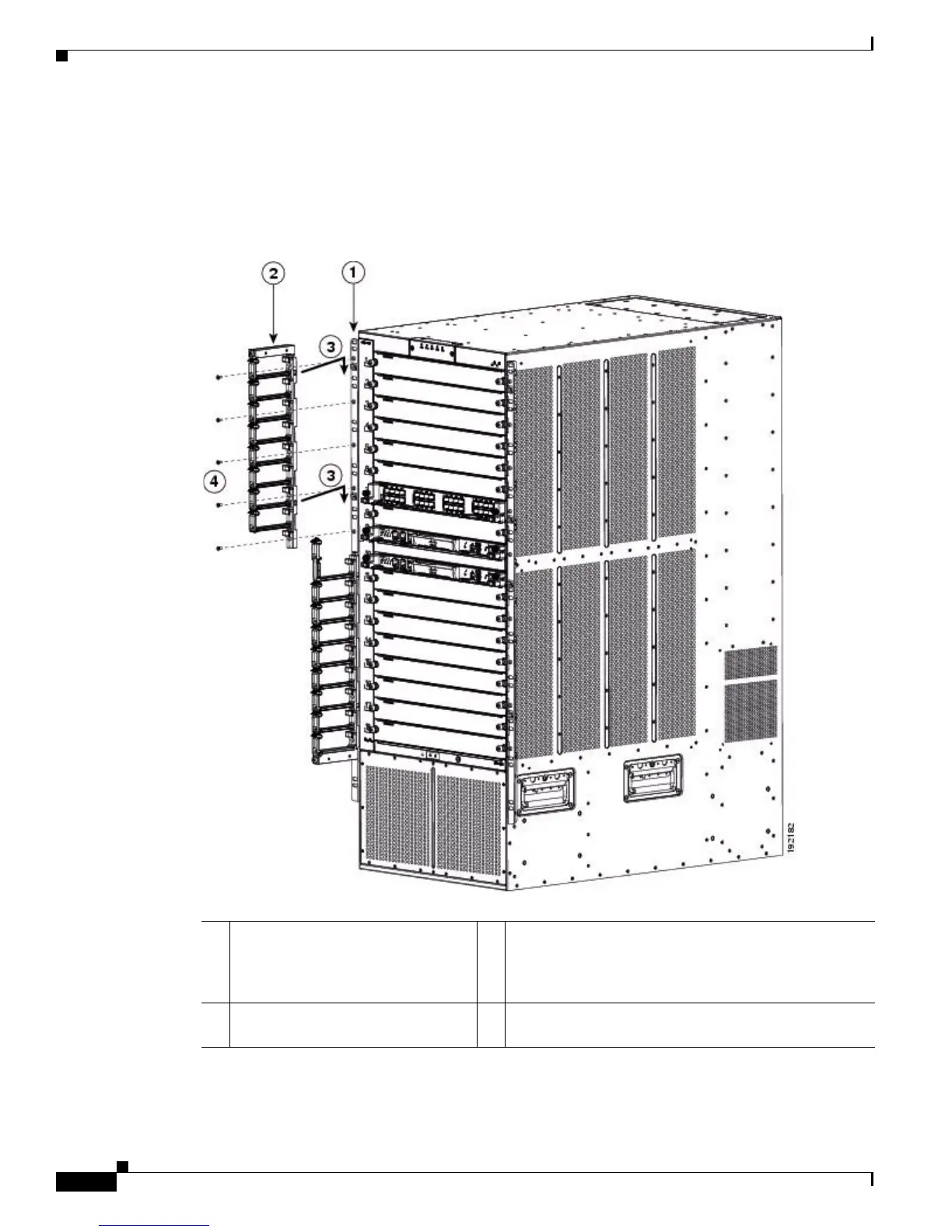

Figure 5-9 Attaching a Left Cable Management Assembly to a Rack-Mount Bracket
Step 4
Repeat Step 3 to attach an upper cable management assembly to the upper right side of the chassis. When
completed, the chassis will appear as shown in Figure 5-10.
1 Rack-mount bracket. 3 Position the assembly so that the two upper hooks on
the rack-mount bracket fit inside the two holes on the
assembly, and then slide the assembly down so that it is
held by the hooks.
2 Upper cable management assembly. 4 Loosely fasten the assembly to the rack-mount bracket
with four M4x10 screws. Do not tighten these screws.
