5-19
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 5 Installing a Cisco Nexus 7018 Chassis
Installing the Cable Management Frame

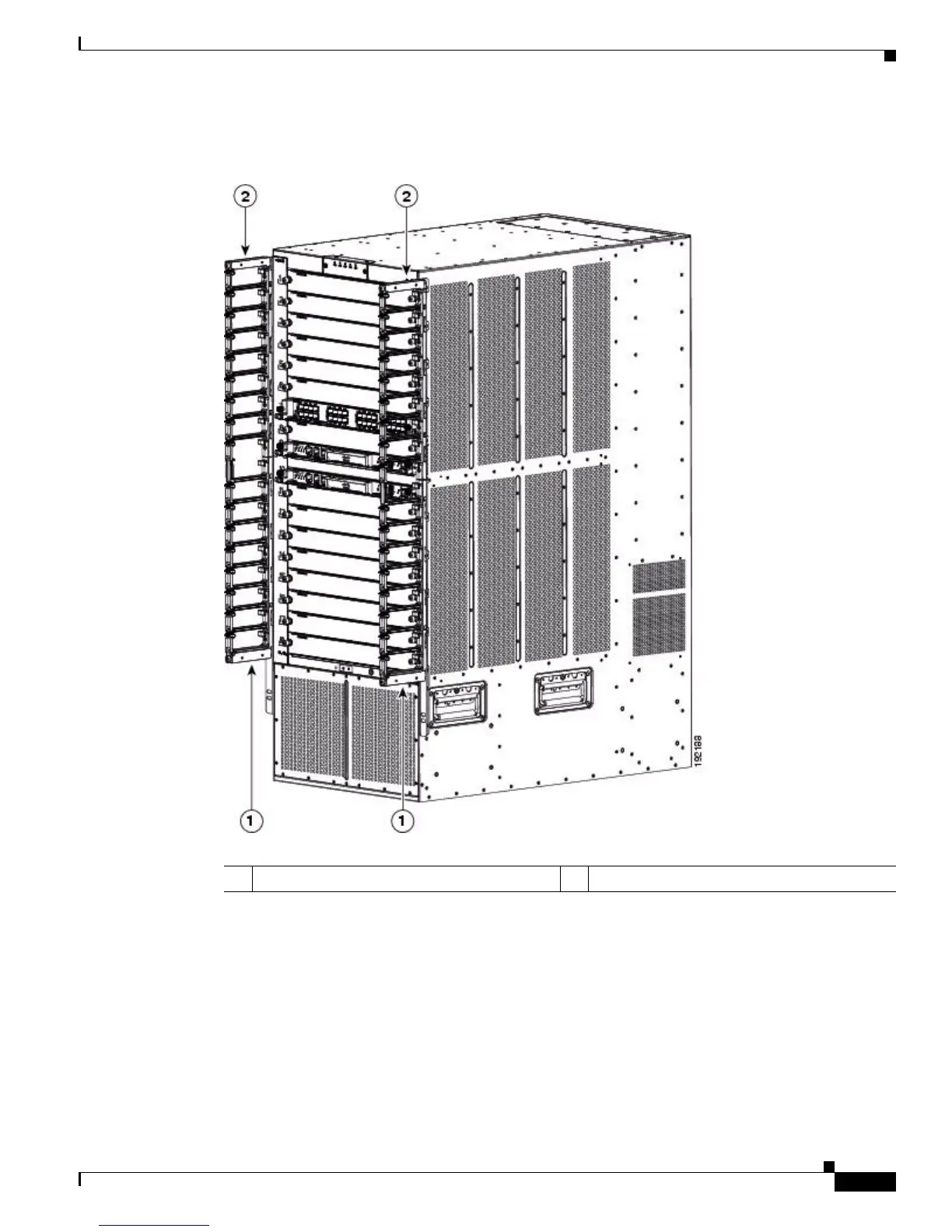

Figure 5-10 Cable Management Assemblies Attached to the Rack-Mount Brackets
Step 5
Place the top hood (800-31269-01) on top of the two upper cable management assemblies that are
already installed. Make sure that the side of the top hood that is closest to the chassis has two alignment
pins that align with the alignment holes in the chassis as shown in Figure 5-11. Push the top hood toward
the chassis so that its alignment pins enter the alignment holes and the top hood rests against the chassis.
1 Lower cable management assembly 2 Upper cable management assembly
