Chapter 5 Installing a Cisco Nexus 7018 Chassis
Installing the Cable Management Frame

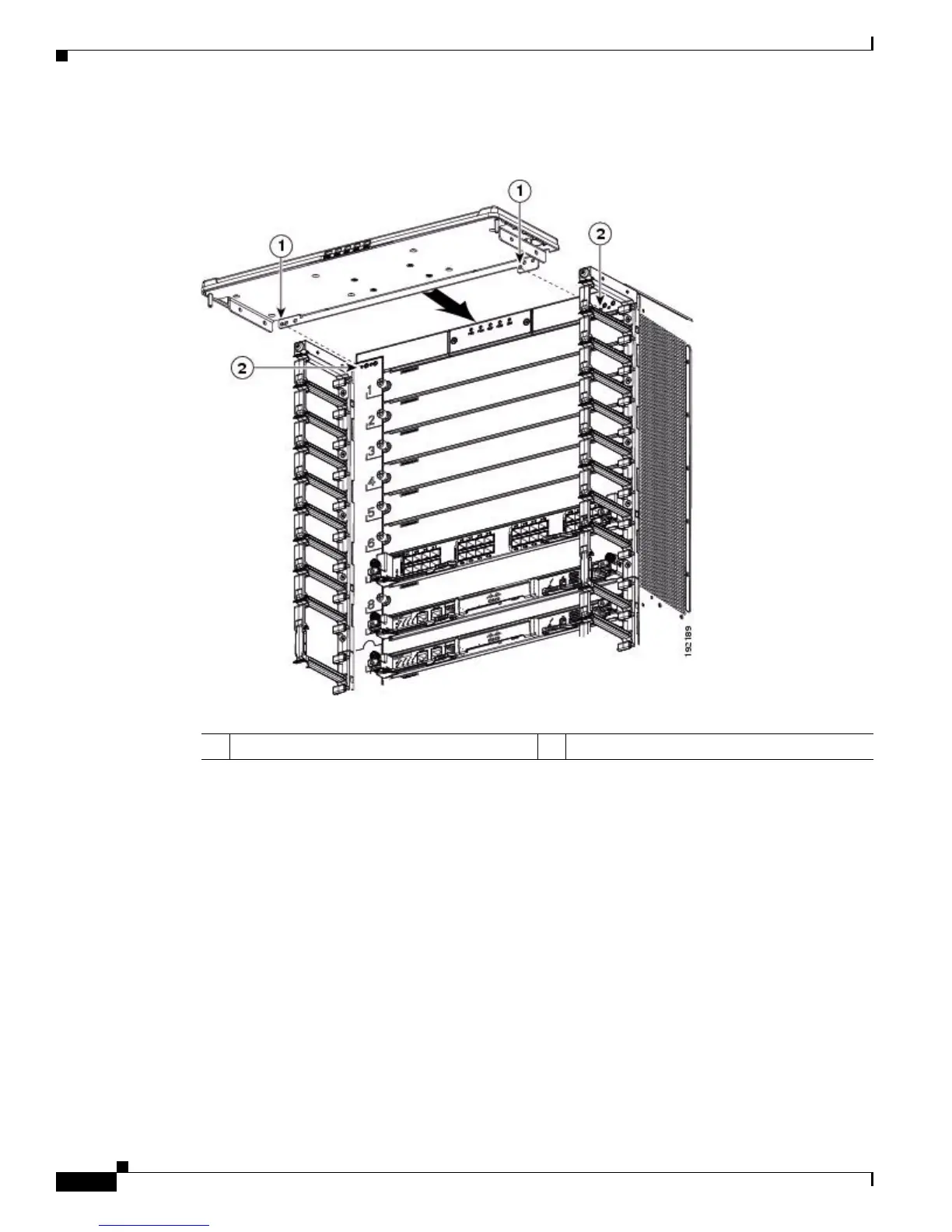

Figure 5-11 Positioning the Top Hood with the Upper Cable Management Assemblies and the
Switch Chassis
Step 6
Use four M4x8 pan-head screws to loosely fasten the top hood to the chassis as shown in Figure 5-12.
1 Alignment pins 2 Alignment holes
