5-23
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 5 Installing a Cisco Nexus 7018 Chassis
Installing the Front Door and Air Intake Frame

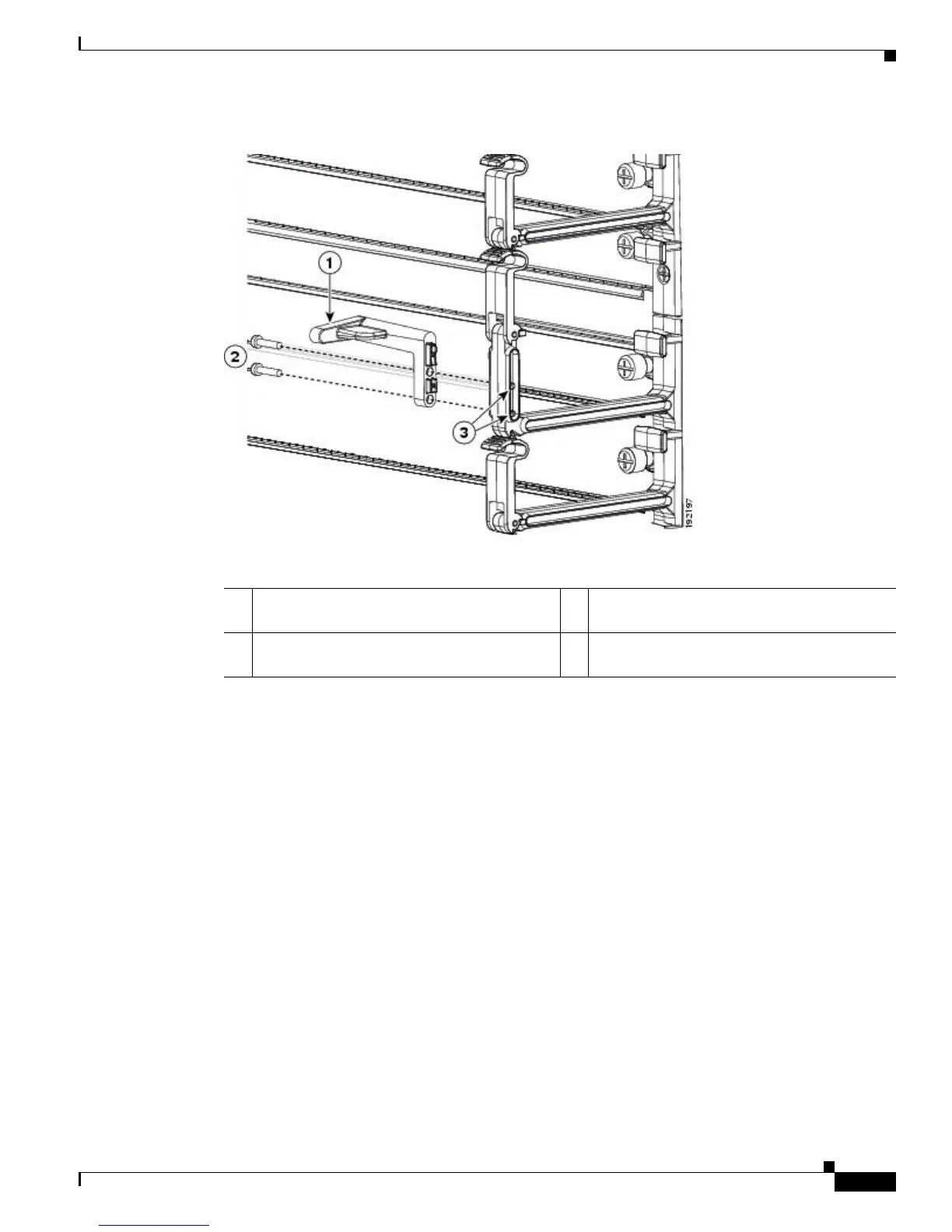

Figure 5-14 Attaching the Right Door Stopper
Step 3
Position the hinge bracket (700-28491-01) at the bottom of the cable management frame and the chassis
as shown in Figure 5-15.
1 Right door stopper identified with an R on the
bottom of the base.
3 Screw holes on the right side of the cable
management frame.
2 Two M3x10 screws that fasten the stopper to
the right side of the cable management frame.
