Chapter 6 Installing Power Supplies
Connecting a DC Power Supply to DC Power Sources

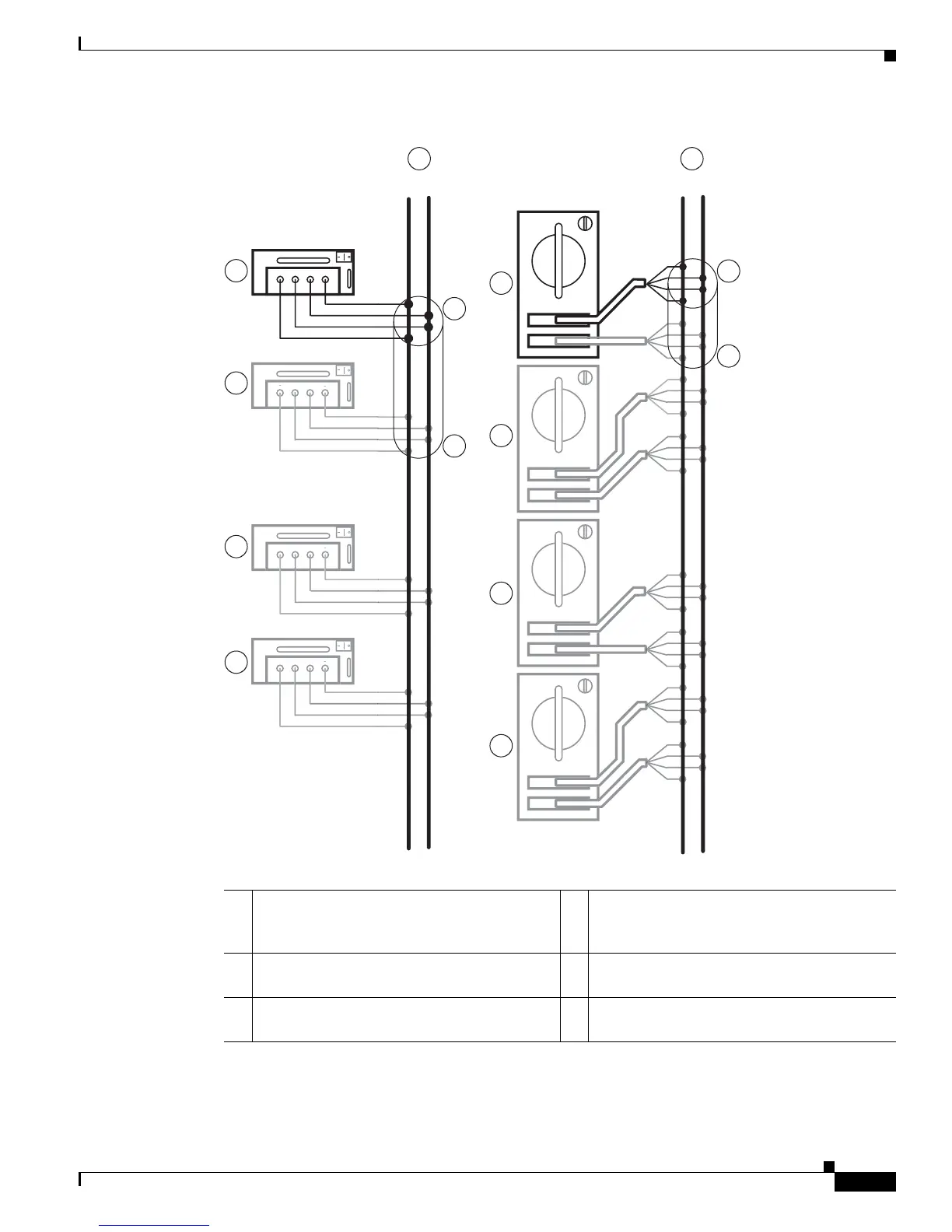

Figure 6-3 Connecting Power Supplies to the Grid for Combined Power Mode
+
+- +
-
+
-
+
-
+
-
+
-
+
-
+
-
-+
-+
1
3
5
5
3
1
1
1
4
4
4
4
2 2
334718
1 3-kW DC power supply 4 6-kW DC power supply with one or two
power cables plugged in (each cable for 3 kW
of power)
2 DC power source 5 Connections required for 6 kW of available
power
3 Connections required for 3 kW of available
power
