Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 10 Installing or Replacing Components
Replacing or Upgrading a Cisco Nexus 7010 or 7018 Fabric Module During Operations
Step 9 Place the module on the antistatic mat or repack it in its original packing materials. If you are packing a
Cisco Nexus 7010 fabric module (N7K-C7010-FAB-1), see Figure 10-15. If you are packing a Cisco
Nexus 7018 fabric module (N7K-C7018-FAB-1), see Figure 10-16 on page 10-52.

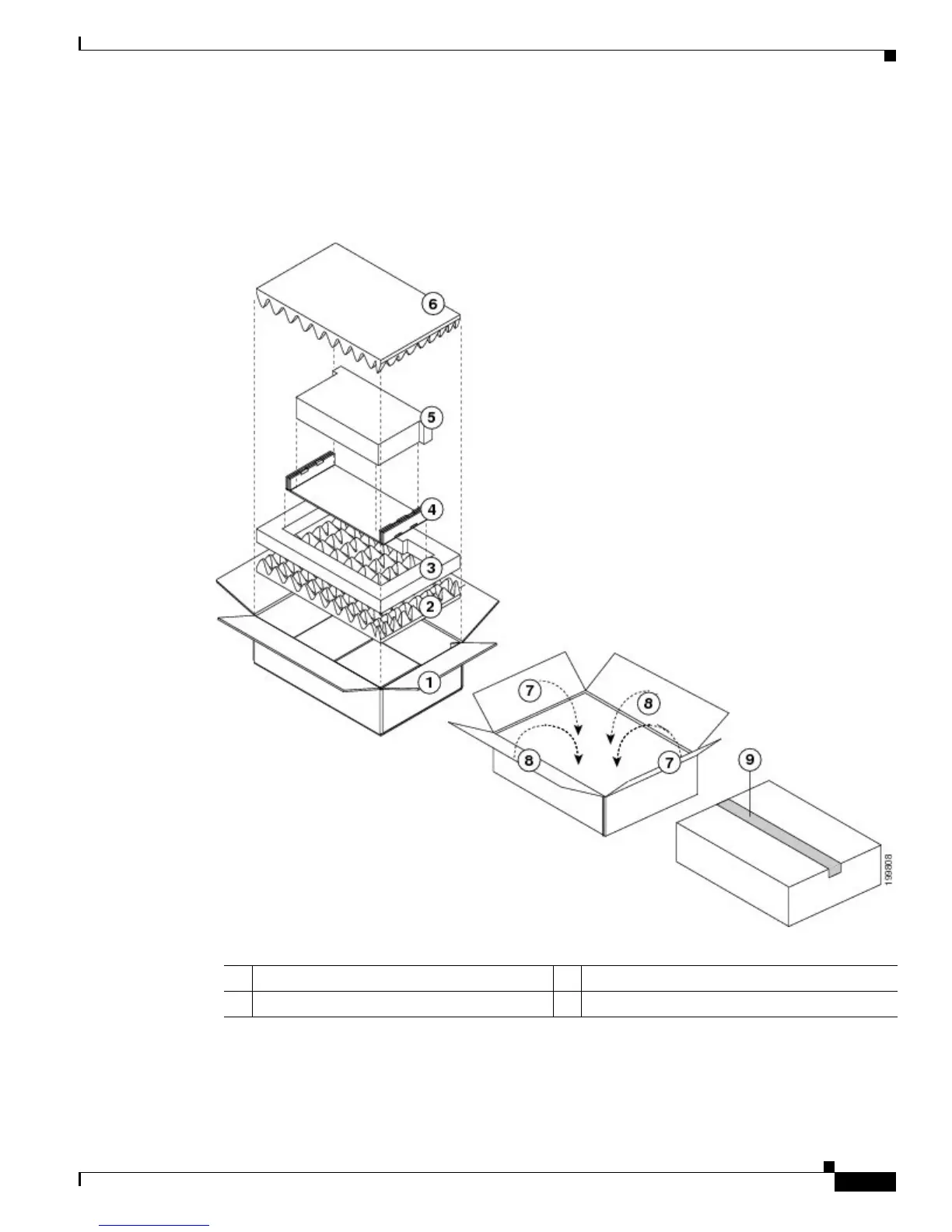

Figure 10-15 Packing a Cisco Nexus 7010 Fabric Module (N7K-C7010-FAB-1)
1 Open the box. 6 Place the foam padding on top of the module.
2 Place the foam padding on the bottom. 7 Fold the narrow flaps over the top of the box.
