Replacing or Upgrading a Cisco Nexus 7010 or 7018 Fabric Module During Operations

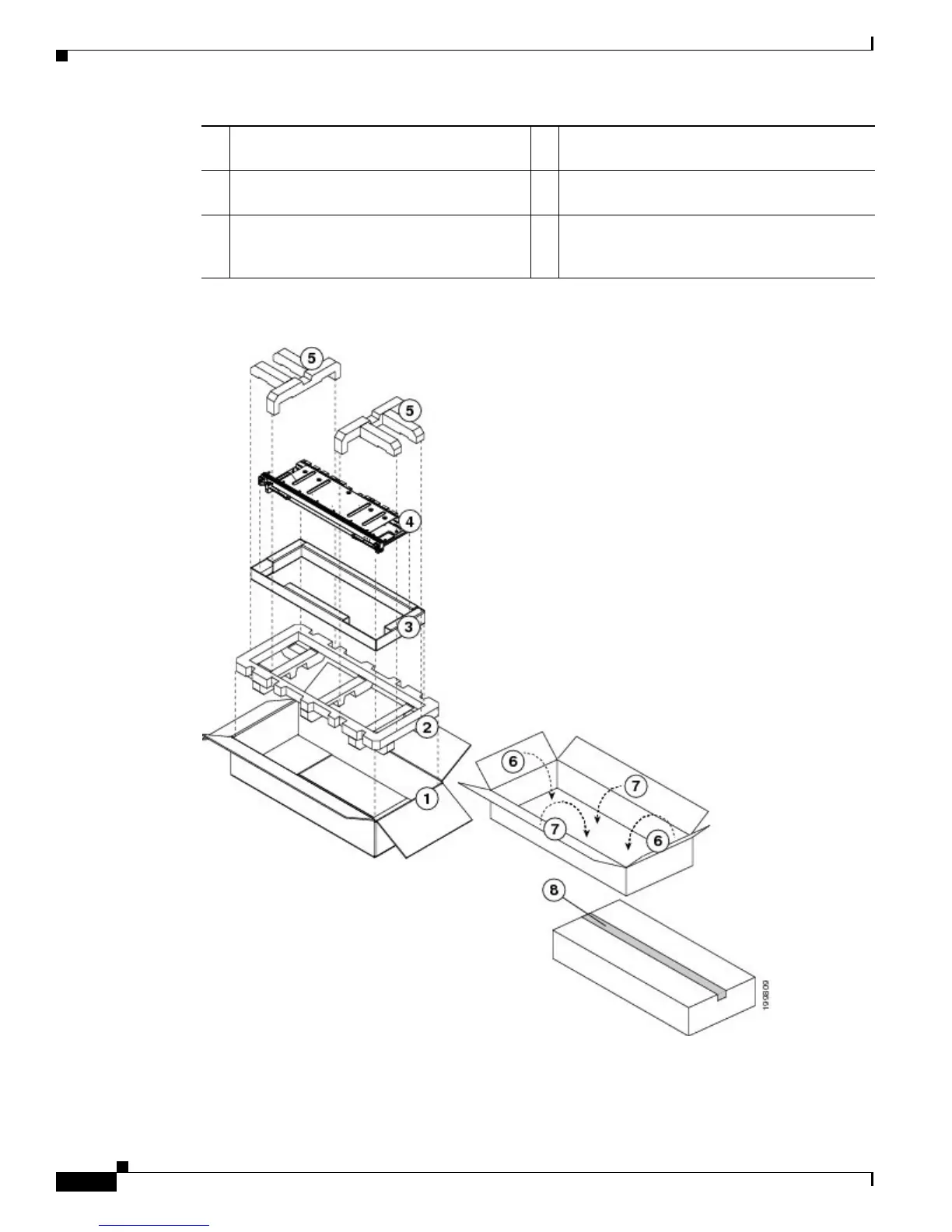

Figure 10-16 Packing a Cisco Nexus 7018 Fabric Module (N7K-C7018-FAB-1)
3 Place the foam padding with the middle cut
out on top of the foam padding in the box.
8 Fold the wide flaps over the top of the box.
4 Place the trifold piece of cardboard inside the
hole in the foam padding.
9 Tape the wide flaps together and to the box.
5 Put the fabric module in an ESD bag (not
shown) and then place the bagged module in
the hole of the padding.
