10-68
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 10 Installing or Replacing Components
Replacing the Front Doors and Frame Assembly on the Cisco Nexus 7010 Chassis
Step 2 For each of the two front doors, match the two alignment pins on the door frame to the alignment holes
on the chassis. Position each door frame immediately under the cable management area (see
Figure 10-23).

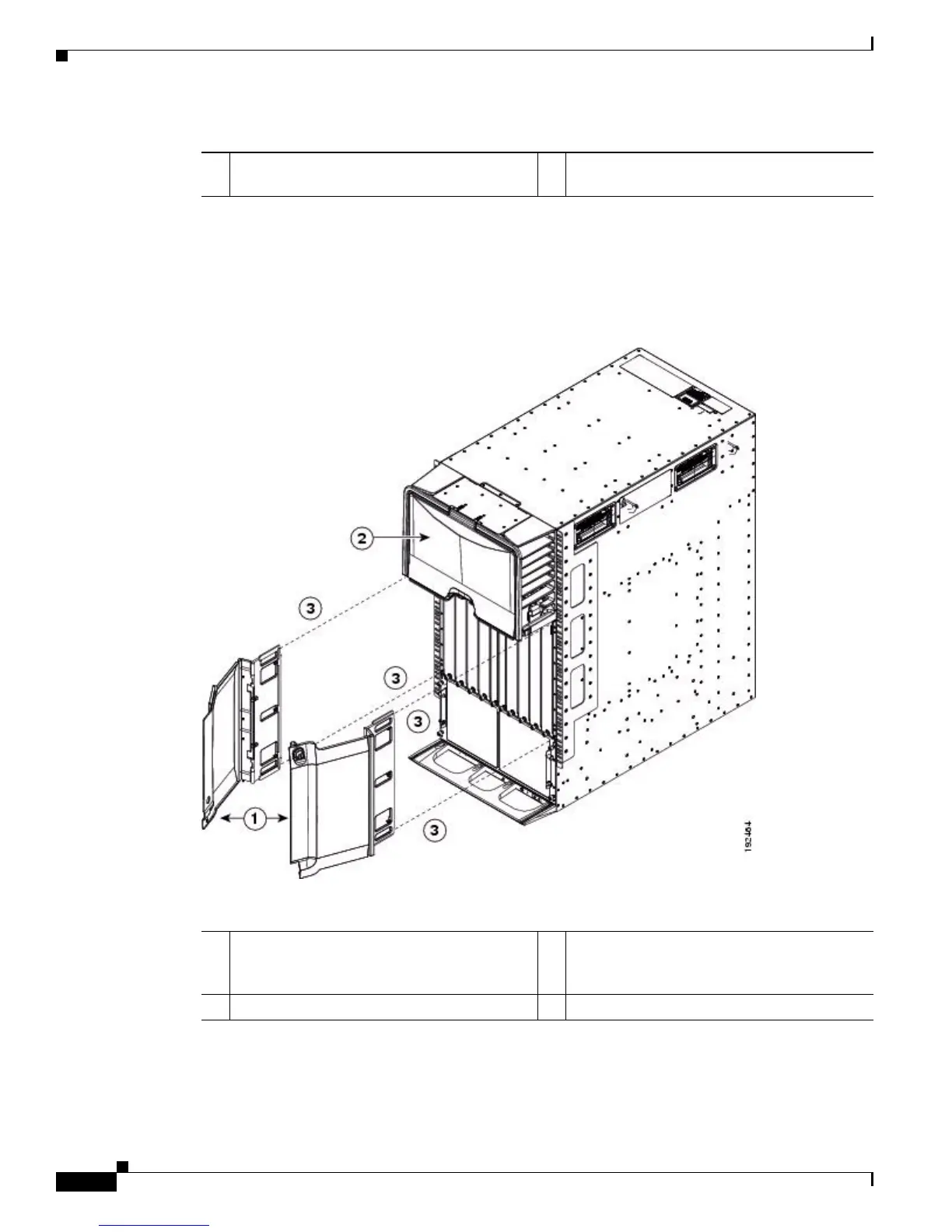

Figure 10-23 Installing the Front Doors
Step 3 Tighten three captive screws for each door frame (see Figure 10-24).
1 Bottom frame assembly with screw holes
aligned to screw holes in chassis.
2 Tighten four M4 x 6 mm screws.
1 Front door frames. 3 Place each door frame on front edge of chassis
and immediately under the cable management
area.
2 Cable management area.
