Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 10 Installing or Replacing Components
Replacing the Front Doors and Frame Assembly on the Cisco Nexus 7010 Chassis

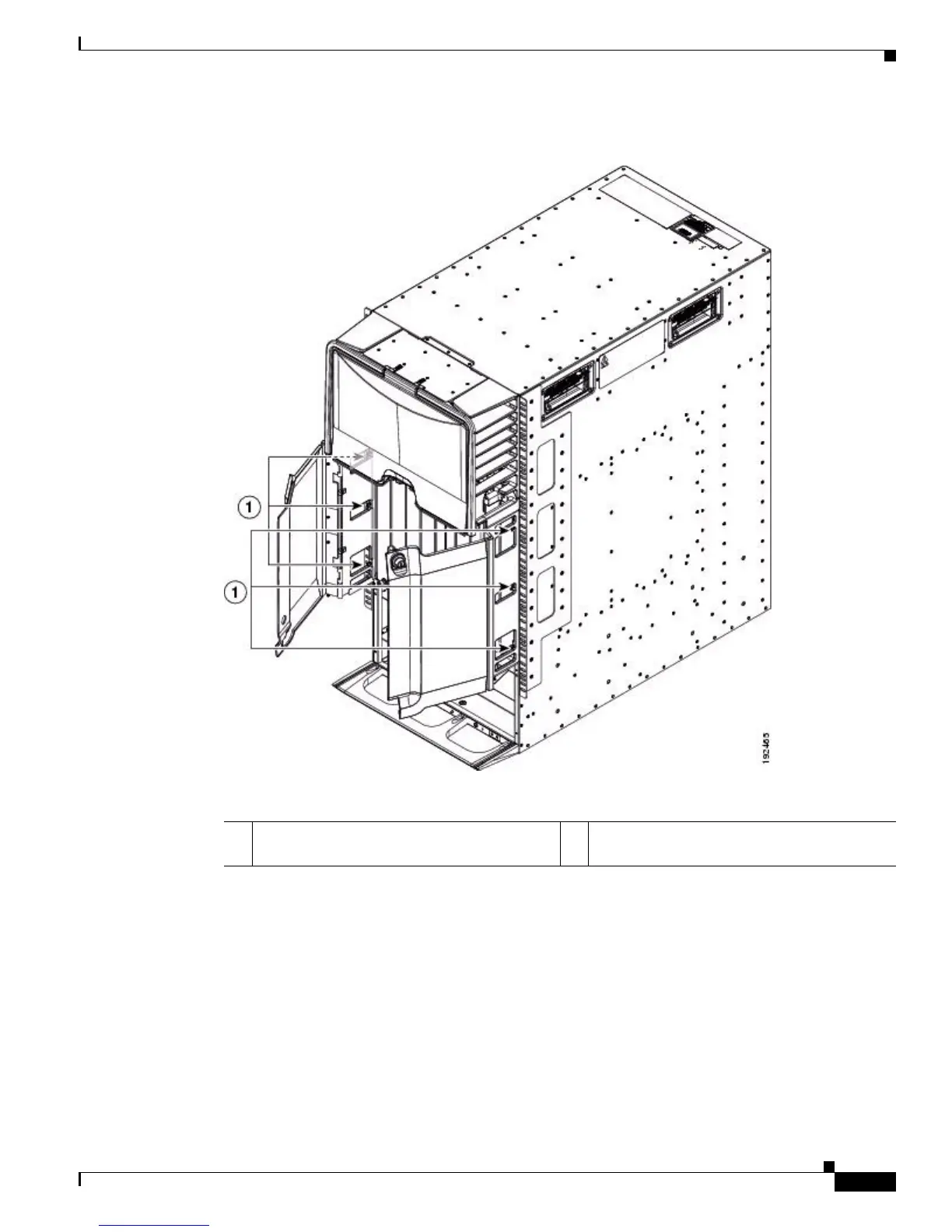

Figure 10-24 Attaching the Door Frames to the Chassis
Step 4
On the EMI panel, unscrew four captive screws and remove the panel from the chassis (see
Figure 10-25).
1 Tighten three captive screws for each door
frame.
