10-73
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 10 Installing or Replacing Components
Replacing the Cable Management Frame on the Cisco Nexus 7018 Chassis

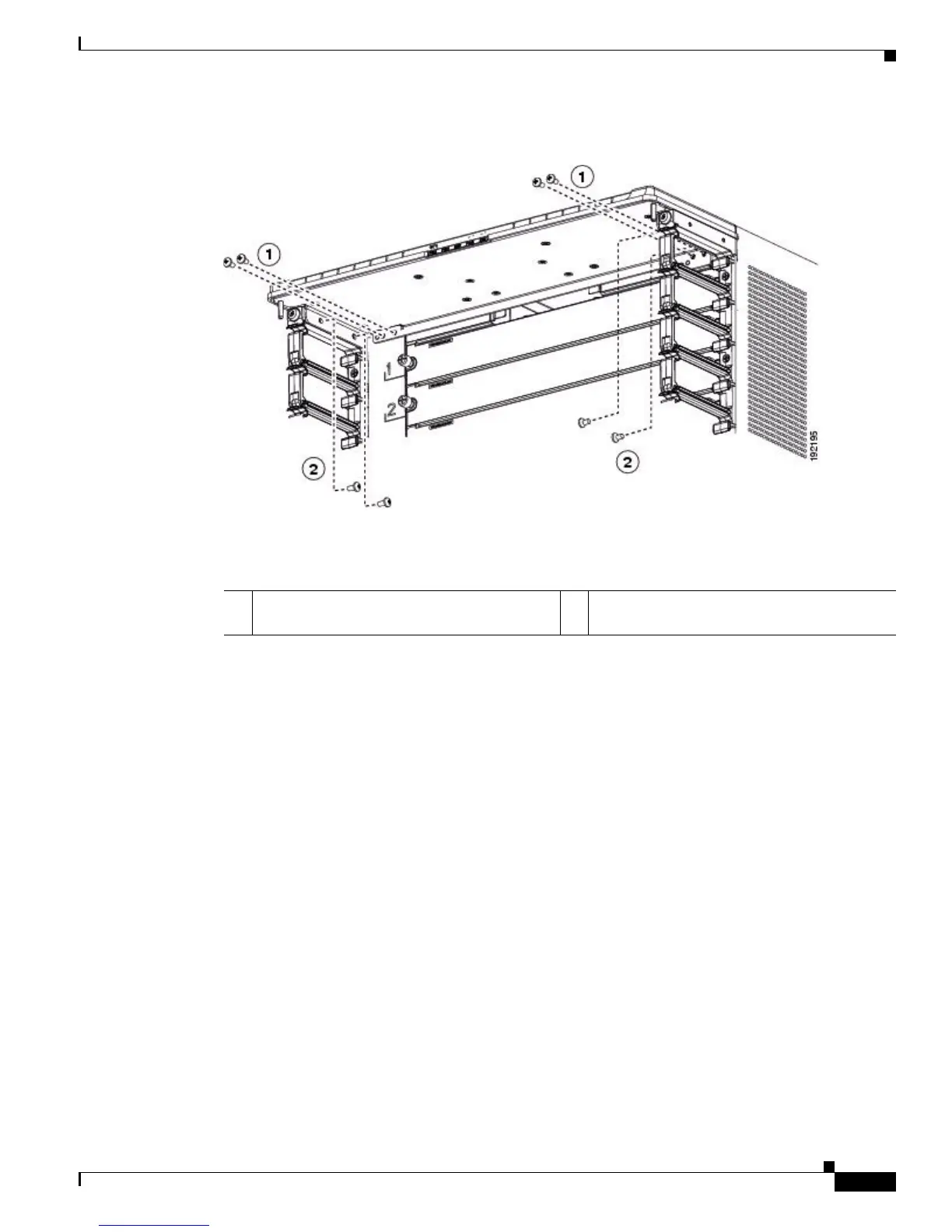

Figure 10-27 Detaching the Top Cover from the Upper-Cable-Management Assemblies and Chassis
Step 2
Remove the top cover from the chassis and the two upper cable management assemblies.
Step 3 For the upper cable management assembly on the left, loosen and remove five M4x10 screws, and then
lift off the assembly as shown in Figure 10-28.
Step 4 Repeat Step 3 for the upper cable management assembly on the right side.
1 Four M4x8 pan-head screws fastened to the
chassis
2 Four M4x8 pan-head screws fastened to the
two upper cable management assemblies
