10-74
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 10 Installing or Replacing Components
Replacing the Cable Management Frame on the Cisco Nexus 7018 Chassis

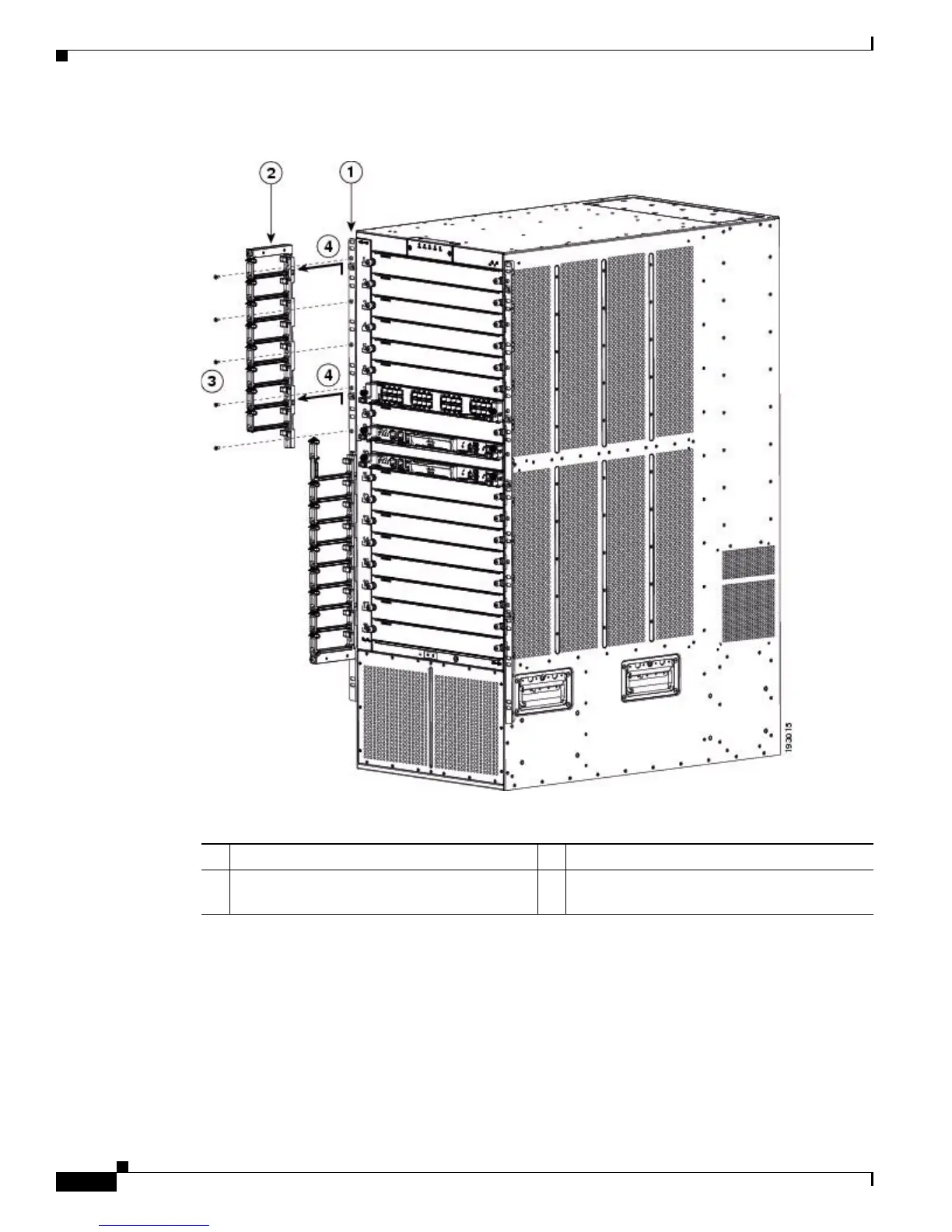

Figure 10-28 Removing an Upper-Cable-Management Assembly
Step 5
For the lower cable management assembly on the left, loosen and remove four M4x10 screws, and then
lift off the assembly as shown in Figure 10-29.
1 Rack-mount bracket. 3 Loosen and remove five M4x10 screws.
2 Upper cable management assembly. 4 Lift the upper cable management assembly off
the rack-mount bracket hooks.
