Replacing the Cable Management Frame on the Cisco Nexus 7018 Chassis

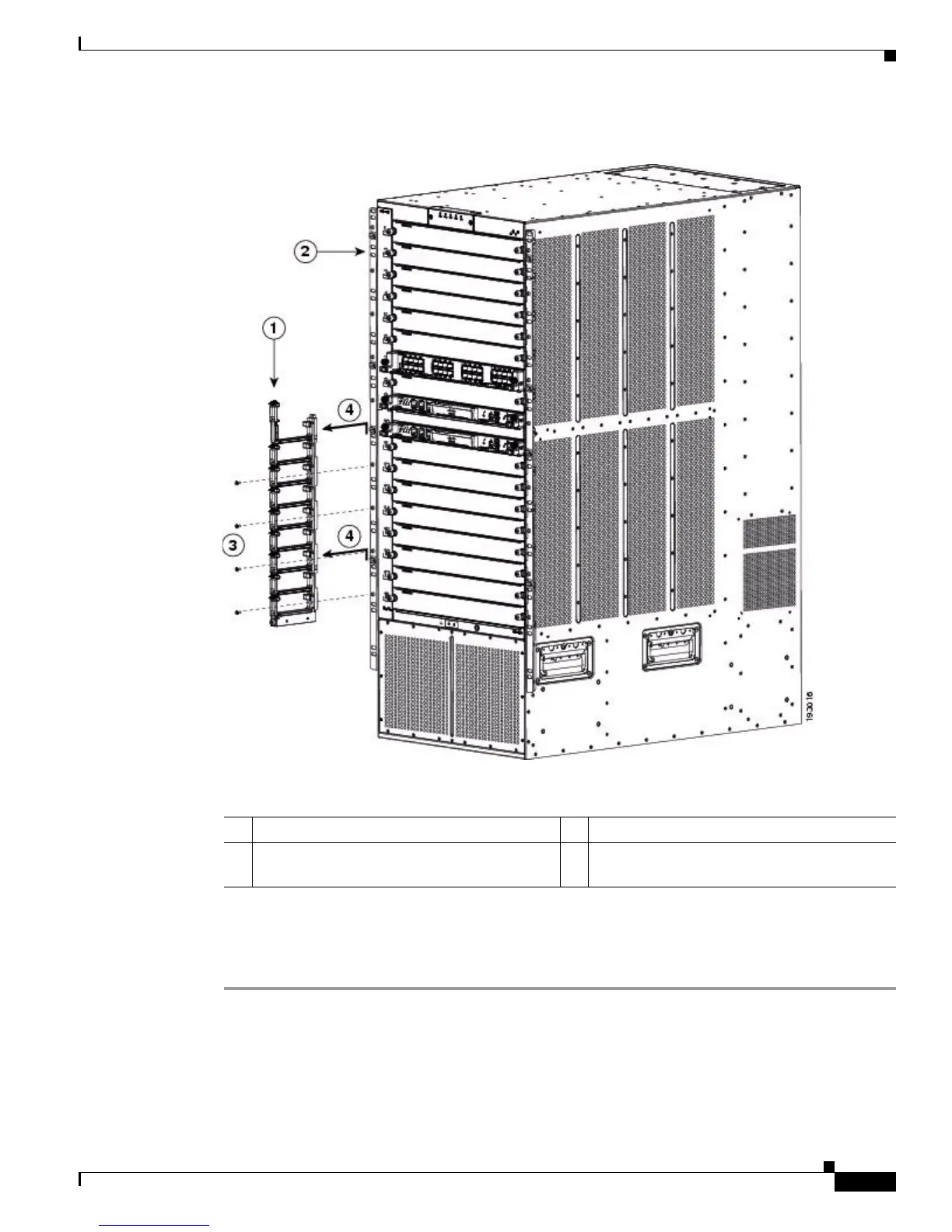

Figure 10-29 Removing a Lower Cable Management Assembly
Step 6
Repeat Step 5 for the lower cable management assembly on the right side.
Step 7 Pack the two lower cable management assemblies, two upper cable management assemblies, the top
cover, and their screws in their original packing materials.
1 Lower cable management assembly. 3 Loosen and remove four M4x10 screws.
2 Left rack-mount bracket. 4 Lift the lower cable management assembly off
the rack-mount bracket hooks.
