Replacing the Cable Management Frame on the Cisco Nexus 7018 Chassis

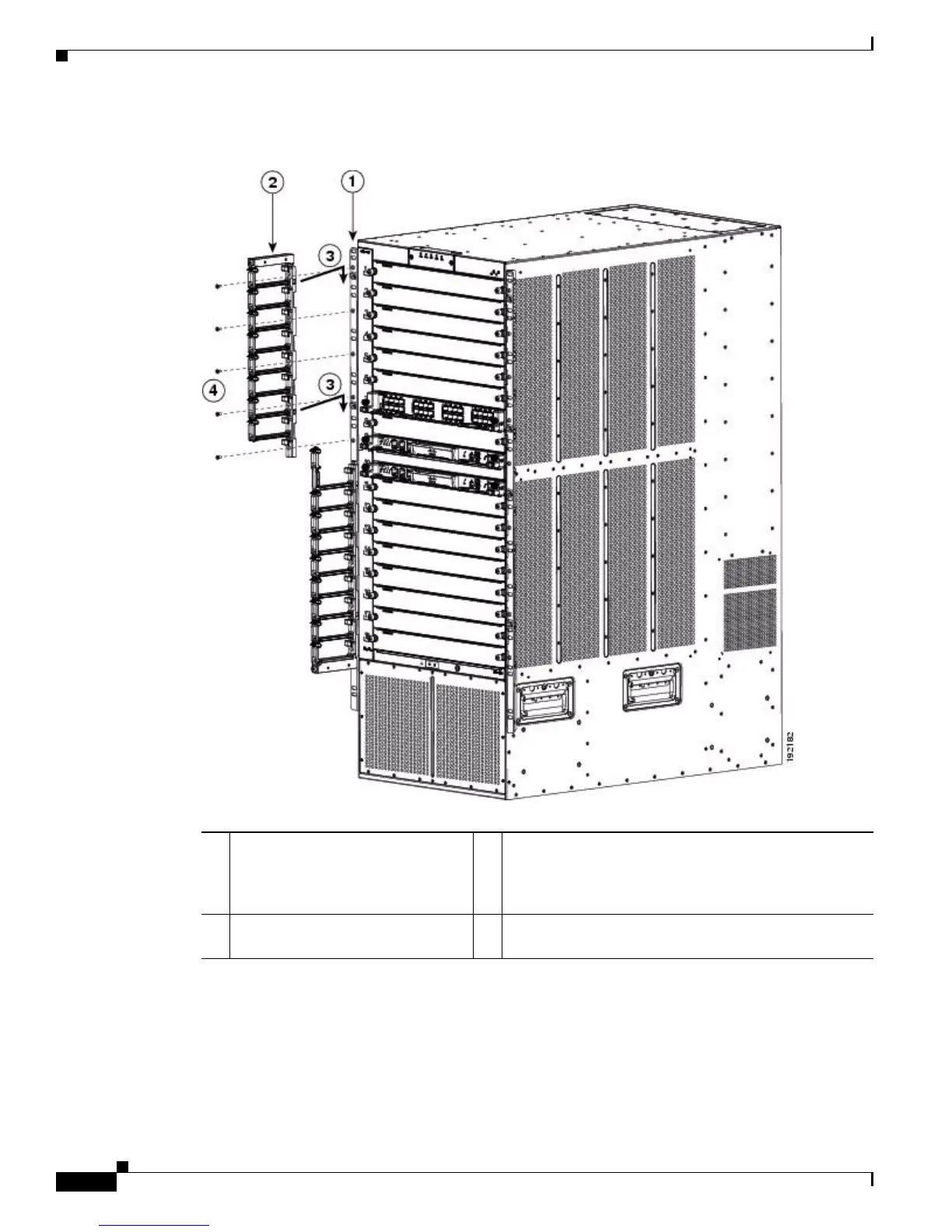

Figure 10-31 Attaching an Upper Cable Management Assembly to a Rack-Mount Bracket
Step 5
Repeat Step 3 to attach an upper cable management assembly to the upper right side of the chassis. When
completed, the chassis will appear as shown in Figure 10-32.
1 Rack-mount bracket. 3 Position the assembly so that the two upper hooks on the
rack-mount bracket fit inside the two holes on the
assembly, and then slide the assembly down so that it is
held by the hooks.
2 Upper cable management assembly. 4 Loosely fasten the assembly to the rack-mount bracket
with four M4x10 screws. Do not tighten these screws.
