10-93
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 10 Installing or Replacing Components
Replacing the Front Door and Air Intake Assemblies on the Cisco Nexus 7018 Chassis

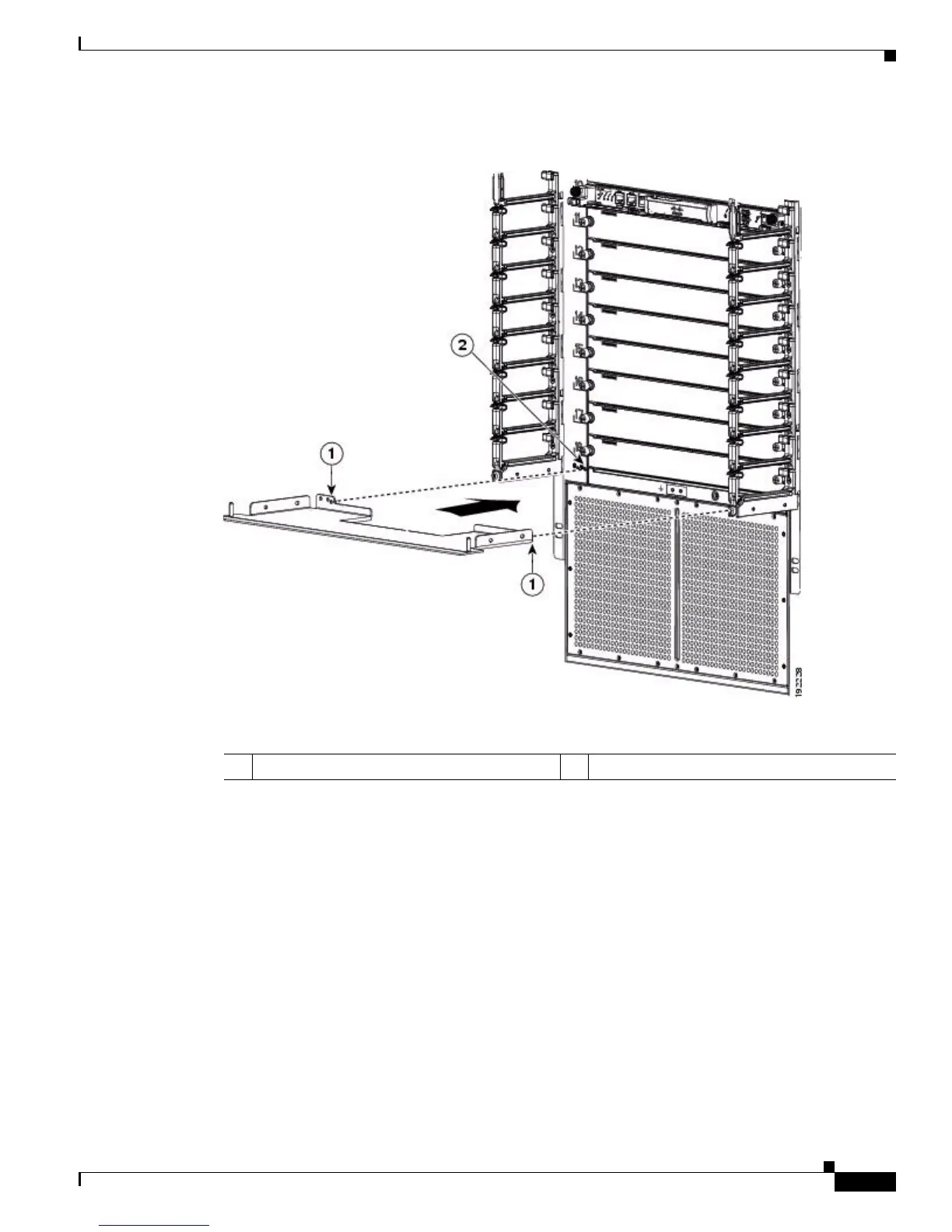

Figure 10-45 Positioning the Hinge Bracket to the Cable Management Frame and Chassis
Step 5
Attach the bottom hinge bracket to the chassis with eight loosely fastened M4x8 screws (see Callout 1
in Figure 10-46).
Step 6 Attach the bottom hinge bracket to the bottom of both sides of the cable management frame (see Callout
2 in Figure 10-46).
1 Alignment pins 2 Alignment holes
