Chapter 10 Installing or Replacing Components
Replacing the Front Door and Air Intake Assemblies on the Cisco Nexus 7018 Chassis

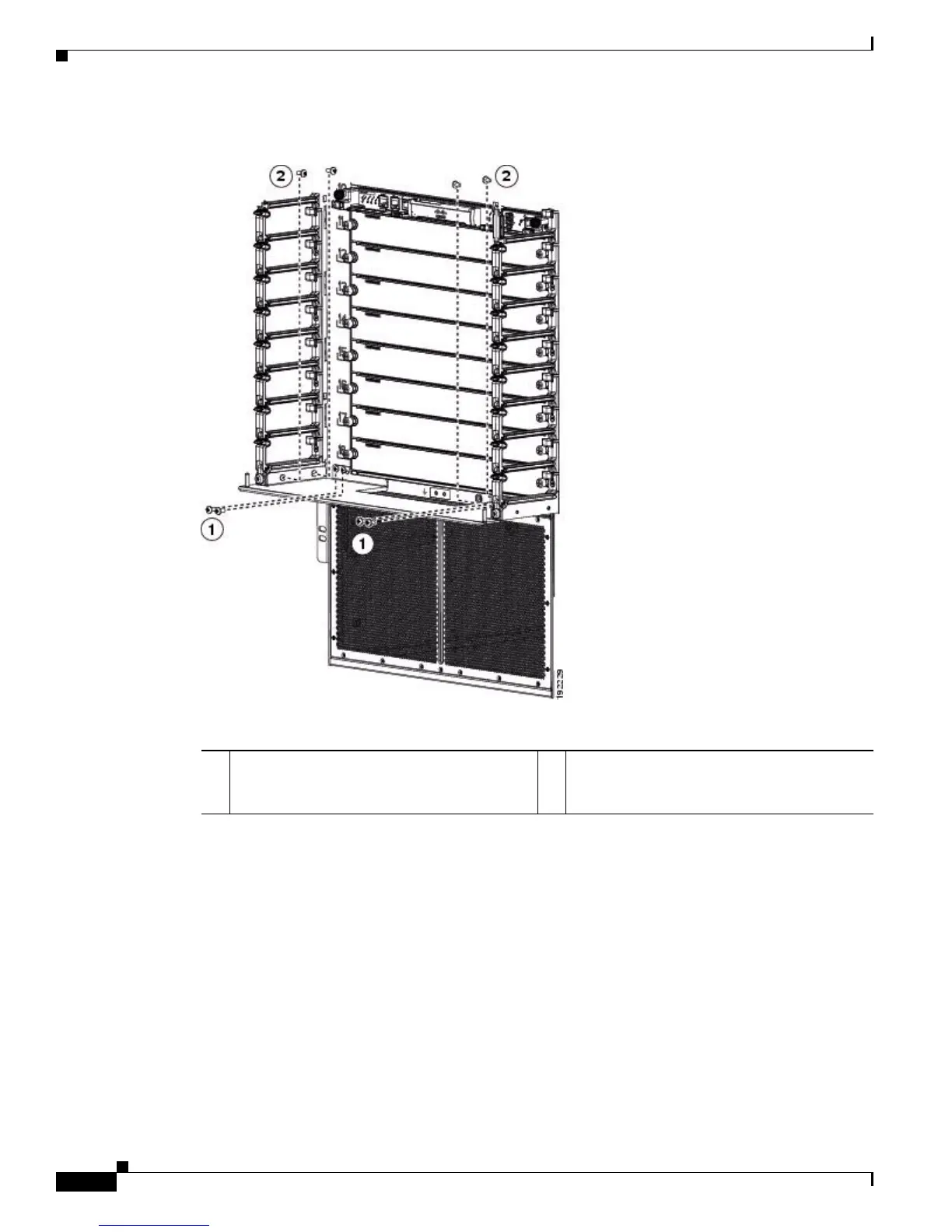

Figure 10-46 Attaching the Hinge Bracket to the Cable Management Frame and Chassis
Step 7
Tighten the four M4x8 screws that fasten the bottom hinge bracket to the chassis to 11 to 15 in-lb (1.2
to 1.7 N·m).
Step 8 Tighten the four M4x8 screws that fasten the bottom hinge bracket to the cable management frame to 11
to 15 in-lb (1.2 to 1.7 N·m).
Step 9 Fasten the four ball-point studs to the bottom portion of the chassis, one stud by each corner of the air
intake area as shown in Figure 10-47.
1 Four M4x8 pan-head screws that fasten the
bottom hinge bracket to the chassis.
2 Four M4x8 pan-head screws that fasten the
bottom hinge bracket to the left and right sides
of the cable management frame.
