Chapter 10 Installing or Replacing Components
Replacing the Front Door and Air Intake Assemblies on the Cisco Nexus 7018 Chassis

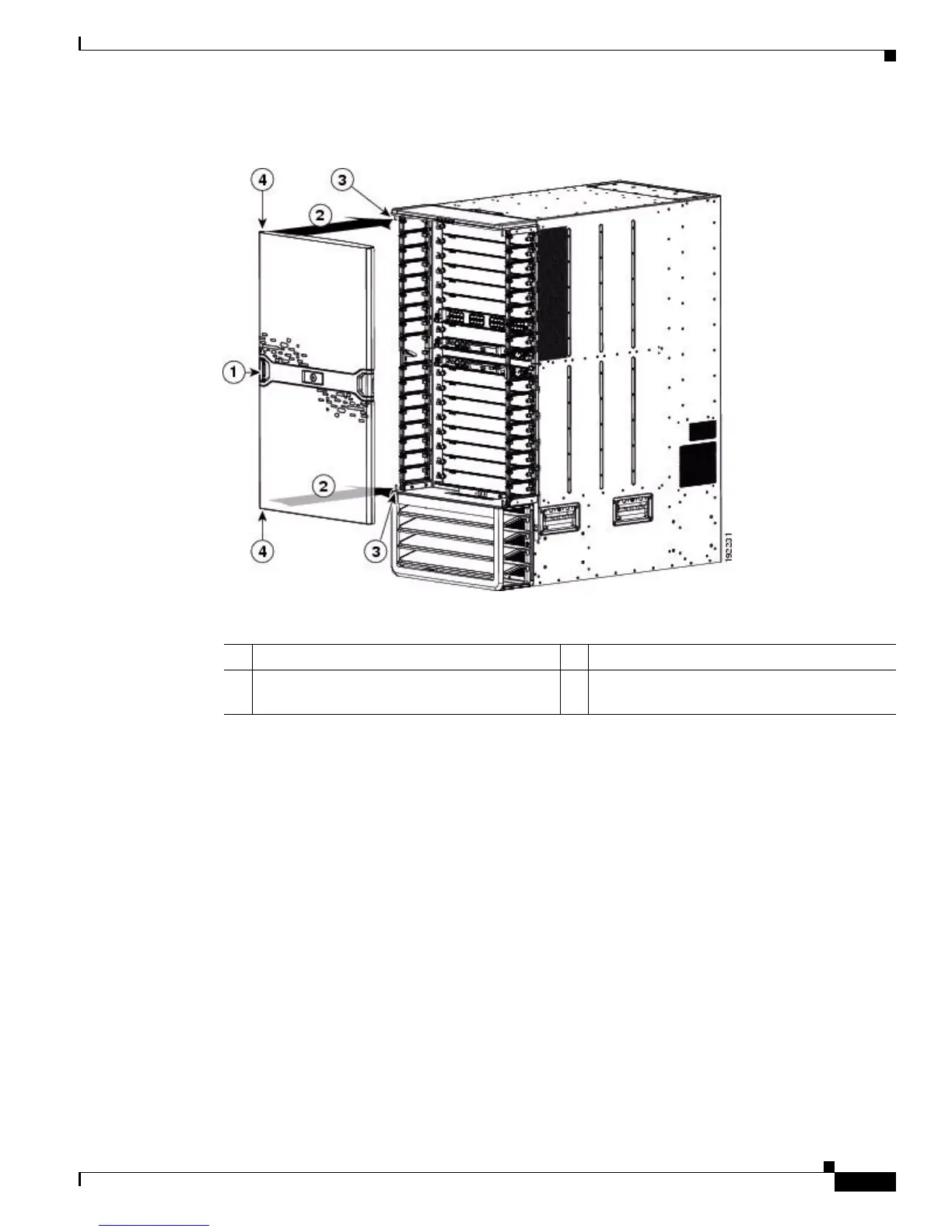

Figure 10-49 Attaching One Side of the Door to the Chassis
Step 14 Use one hand to hold the door on the hinge pins and use your other hand to press the locking button on
the interior side of the door (see Figure 10-50). This action locks the latches on one side of the door to
the hinge pins so that you no longer need to hold the door.
1 Open the latch handle until it clicks. 3 Hinge.
2 Move one side of the door to the hinge pins on
the same side of the chassis.
4 Slot for hinge pin.
