Replacing the Front Door and Air Intake Assemblies on the Cisco Nexus 7018 Chassis

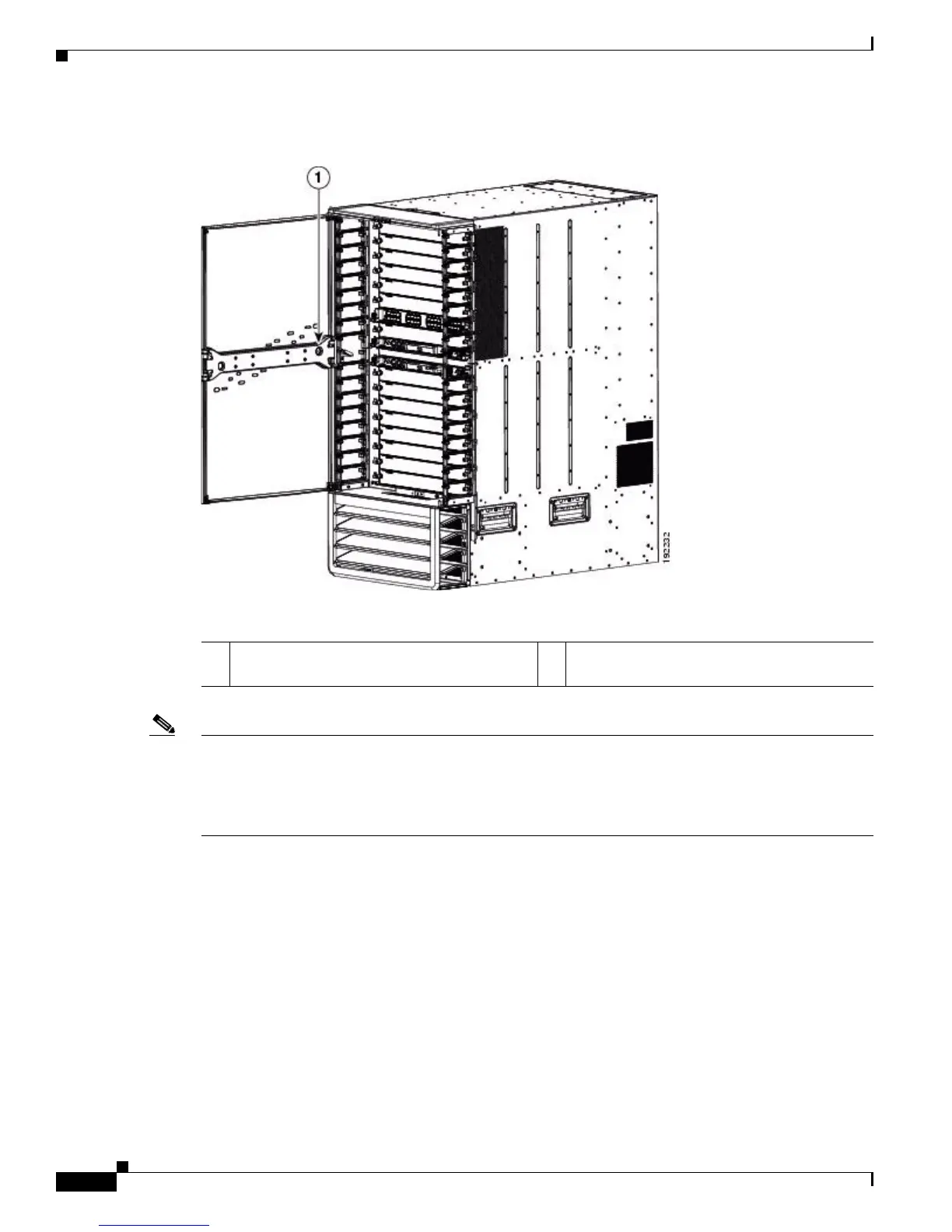

Figure 10-50 Locking the Door onto the Chassis
Note Be sure that the door is firmly latched to the two hinge pins. If both of the hinge pins are not secured
behind the door latch, hold the door securely with one hand while opening the door handle for the
unsecured side until the handle clicks, press that side of the door so that both of the pins are positioned
all the way inside the door slots, press the door latch button on the interior side of the door, and then
make sure that the door is firmly secured to both hinge pins.
Step 15 Open the door handle on the open side of the door until it clicks. This action opens the latches on the
open side of the door. See Figure 10-51.
1 Press the locking button to lock the door onto
the hinge pins.
