Chassis Airflow

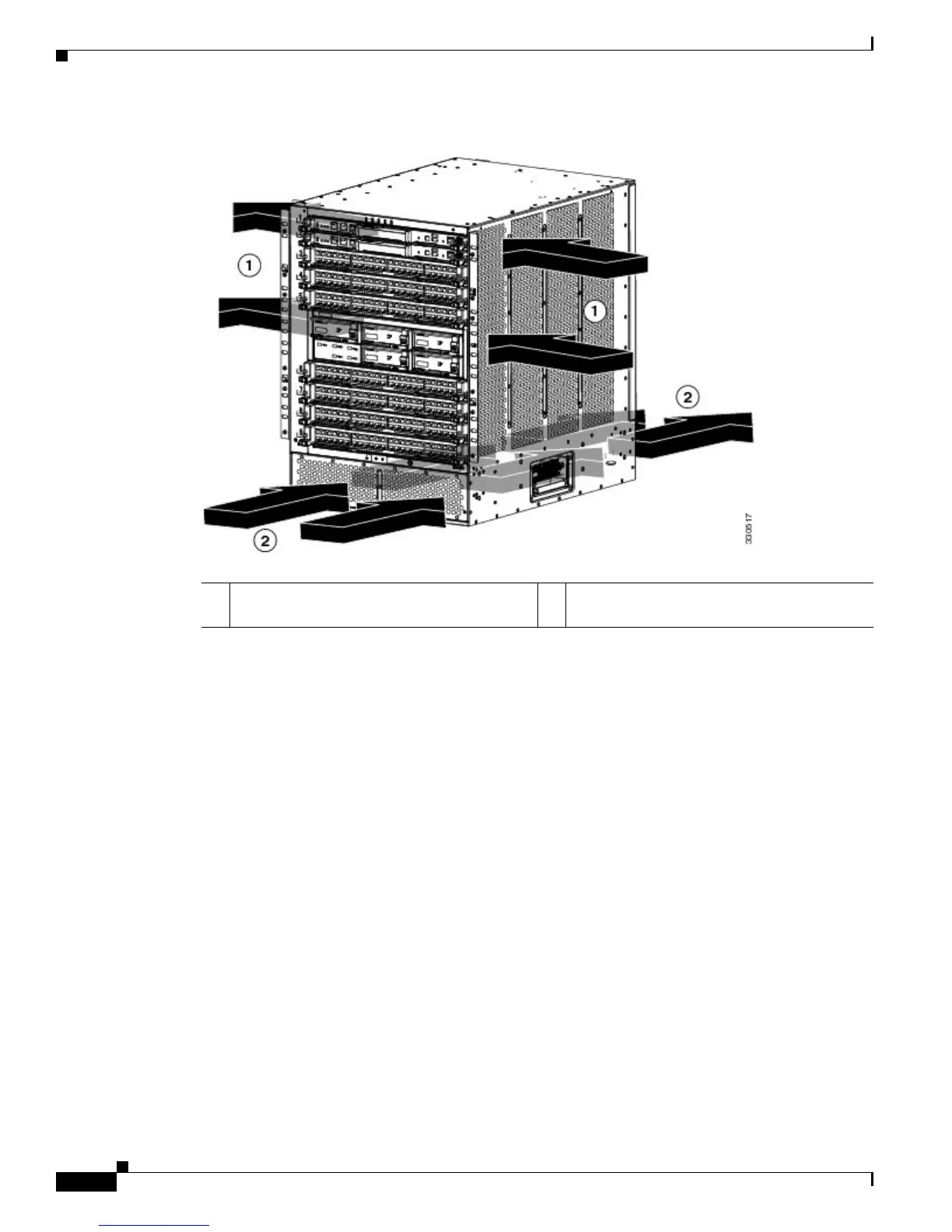

Figure A-23 Airflow for the Cisco Nexus 7009 Chassis
1 Airflow for cooling the supervisor modules,
I/O modules, and fabric modules
2 Airflow for cooling the power supply units
