Appendix E Repacking the Cisco Nexus 7000 Series Switch for Shipment
Repacking the System Components

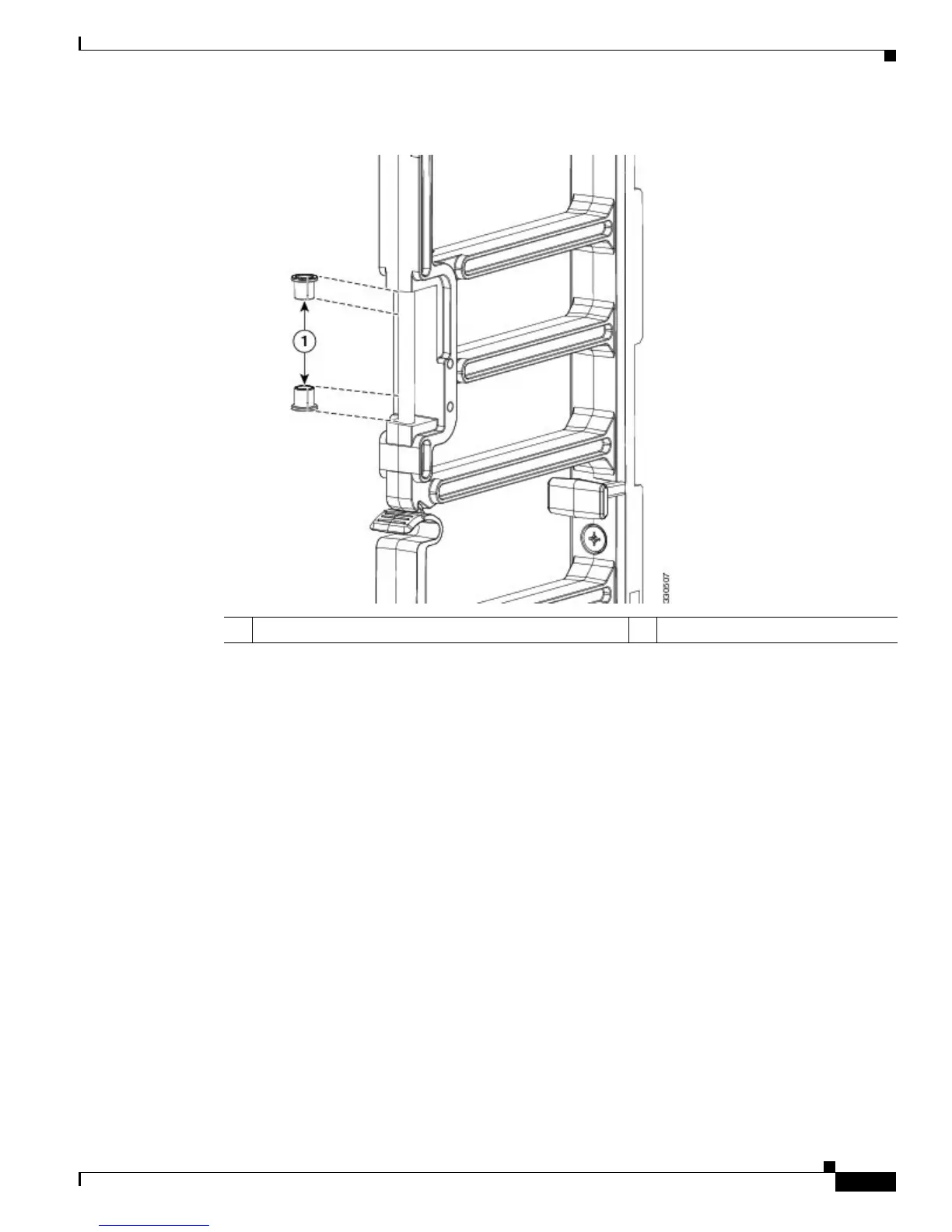

Figure E-8 Removing the Bushings from the Right Cable Management Frame
i.
Remove the door stop on the left cable management frame by loosening and removing its two M3
screws (see Figure E-9). Place the door stop and screws in the small parts bag.
1 Bushings removed from right cable management frame
