E-16
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Appendix E Repacking the Cisco Nexus 7000 Series Switch for Shipment
Repacking the System Components

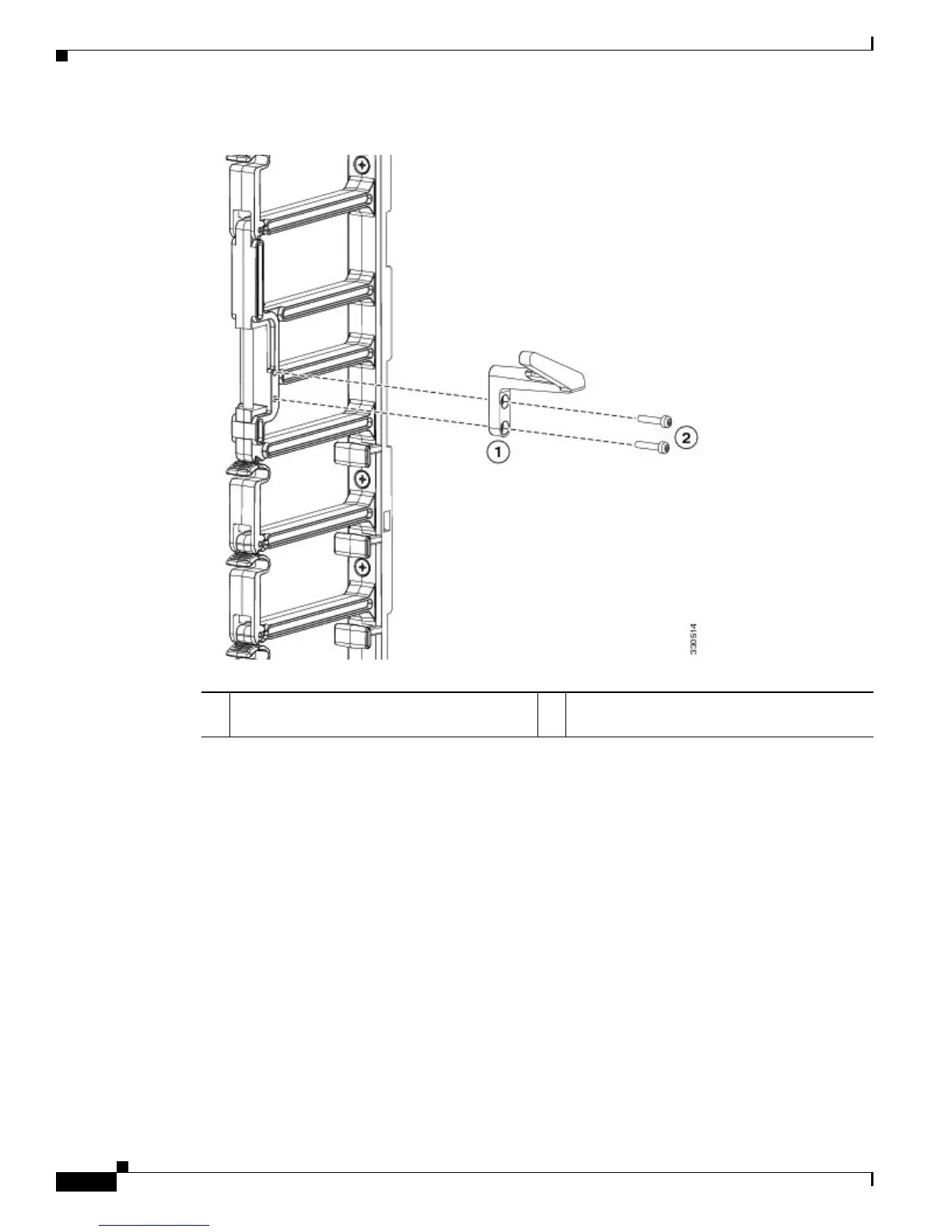

Figure E-9 Removing the Door Stop from the Left Cable Management Frame
j.
Remove the air-intake frame by unscrewing its two captive screws (one screw on each side) and
pulling the frame off the chassis.
k. Open the box for the front door and air-intake frame kit (see Callout 1 in Figure E-10).
1 Door stop for the left cable managment frame 2 Two M3 screws that hold the door stop to the
cable management frame.
