E-20
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Appendix E Repacking the Cisco Nexus 7000 Series Switch for Shipment
Repacking the System Components

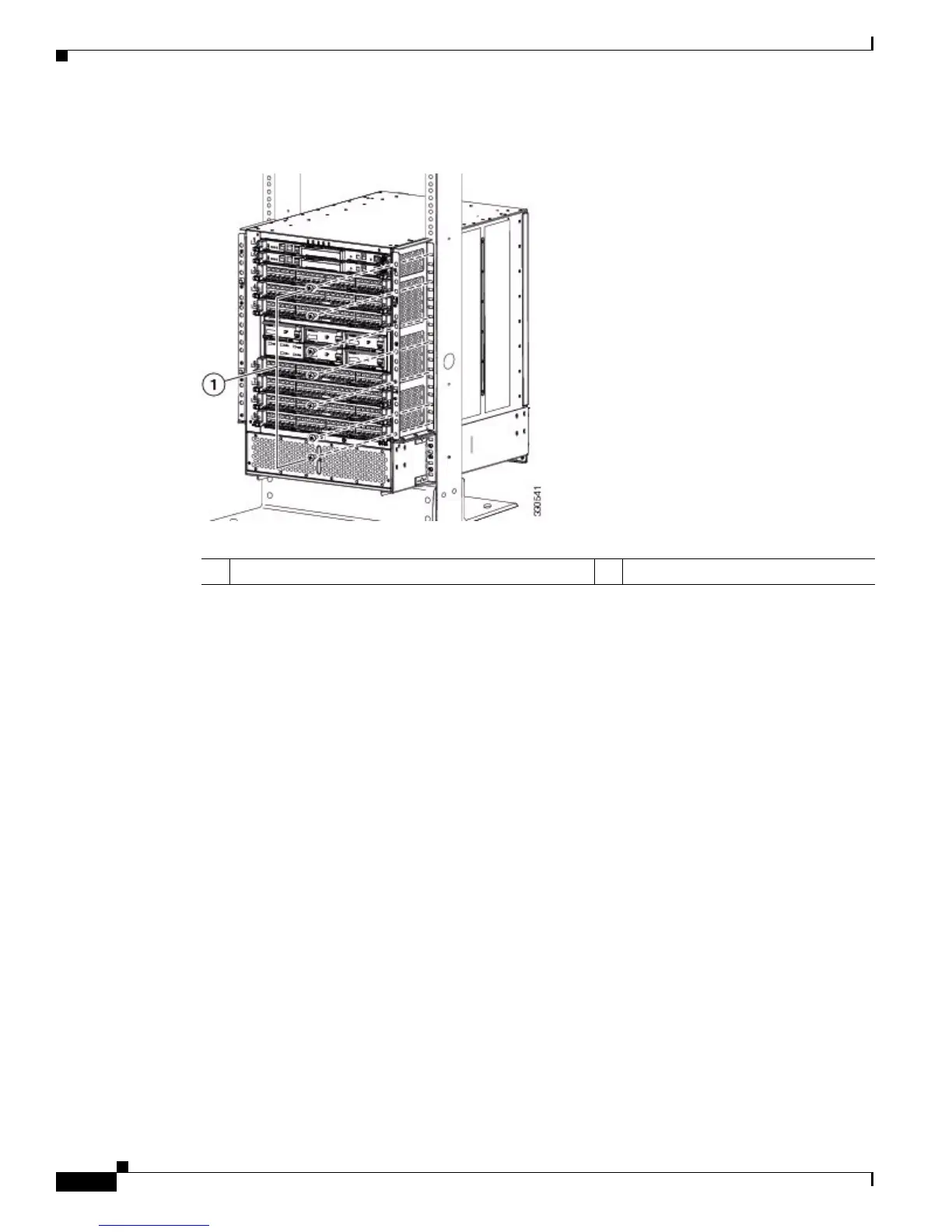

Figure E-13 Screws to Remove to Detach the Chassis from the Rack (Center-Mount Bracket
Shown)
b.
Place a mechanical lift in front of the rack and elevate its platform to the bottom of the chassis (or
no more than 0.25 inches [0.6 cm] below the bottom of the chassis).
c. Use two persons to push the chassis fully onto the mechanical lift.
d. Use the mechanical lift to move the chassis to its pallet. Position the lift next to the pallet and elevate
the bottom of the chassis to the level of the top of the pallet (or no more than 0.25 inches [0.6 cm]
above the pallet).
e. Use two persons to push the chassis fully onto the pallet, and center the chassis on the pallet.
Step 11 Attach two angle brackets to the raised portion of the pallet between the chassis and the pallet edge. Do
not tighten the screws that hold these brackets to the pallet—you will need to adjust their placement after
you place the chassis on the pallet (see Callout 2 in Figure E-3).
1 Six screws to be removed from each side of the chassis
