Appendix E Repacking the Cisco Nexus 7000 Series Switch for Shipment
Repacking the System Components

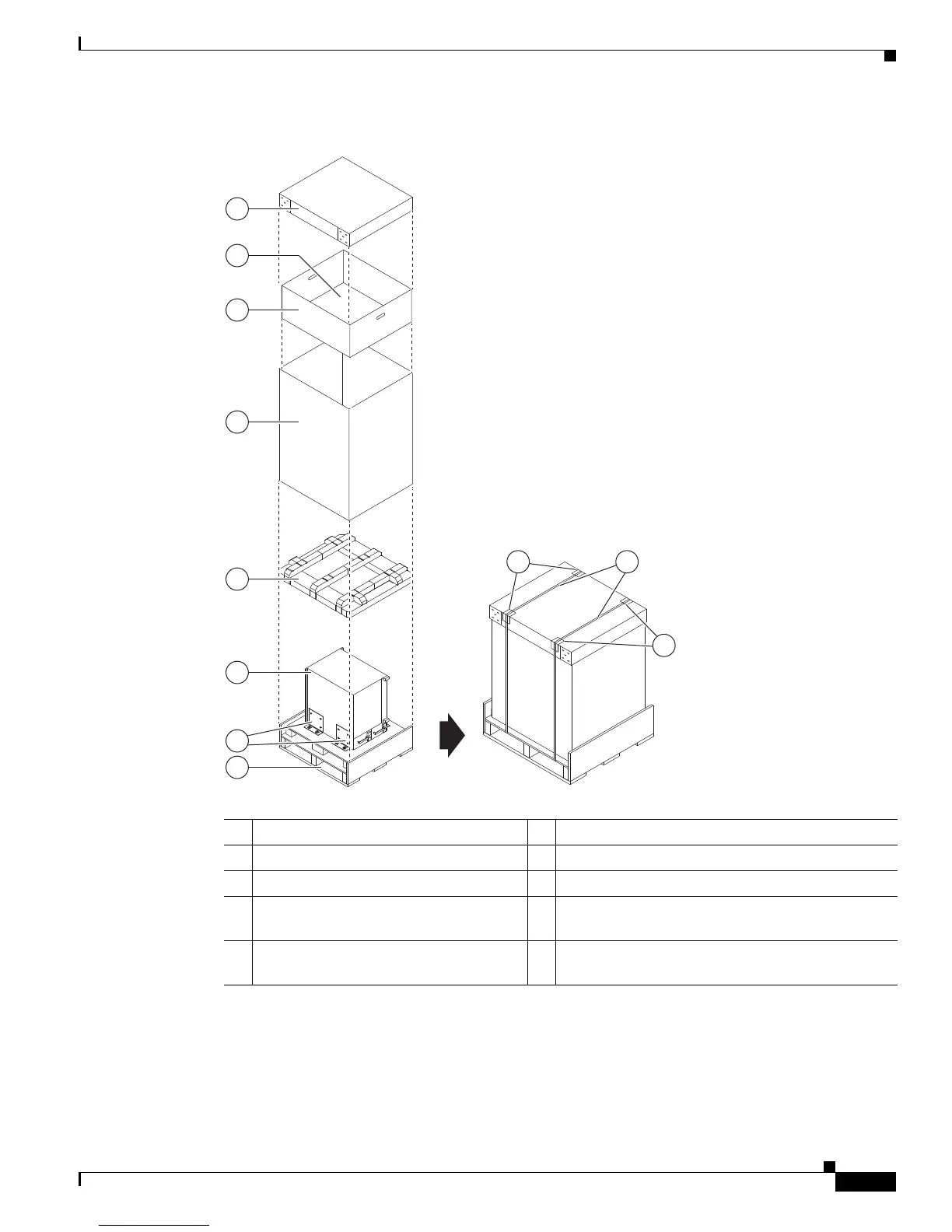

Figure E-14 Packing the Cisco Nexus 7009 Chassis
Step 12
Attach two more angle brackets to the pallet on the other side of the chassis.
Step 13 Attach each of the four brackets to the chassis using two screws and tighten each screw.
Step 14 Tighten the two screws that hold each of the four brackets so that the chassis cannot move on the pallet.
Step 15 Place the foam padding on top of the chassis (see Callout 4 in Figure E-3).
8
6
5
4
3
1
9
9
10
2
7
336020
1 Pallet with smaller platform on top 6 Accessories tray placed on top of chassis padding
2 Angle brackets (four, two on each side) 7 Accessory kit and front door kit placed in box
3 Chassis centered on pallet 8 Cardboard top placed on top
4 Padding on top of chassis 9 Cardboard edge protectors (four) placed on top of
box top
5 Four-sided box placed around chassis
and top layer of pallet
10 Packing straps (two)
