Chapter 3 Installing a Cisco Nexus 7009 Chassis
Installing the Front Door and Air Intake Frame

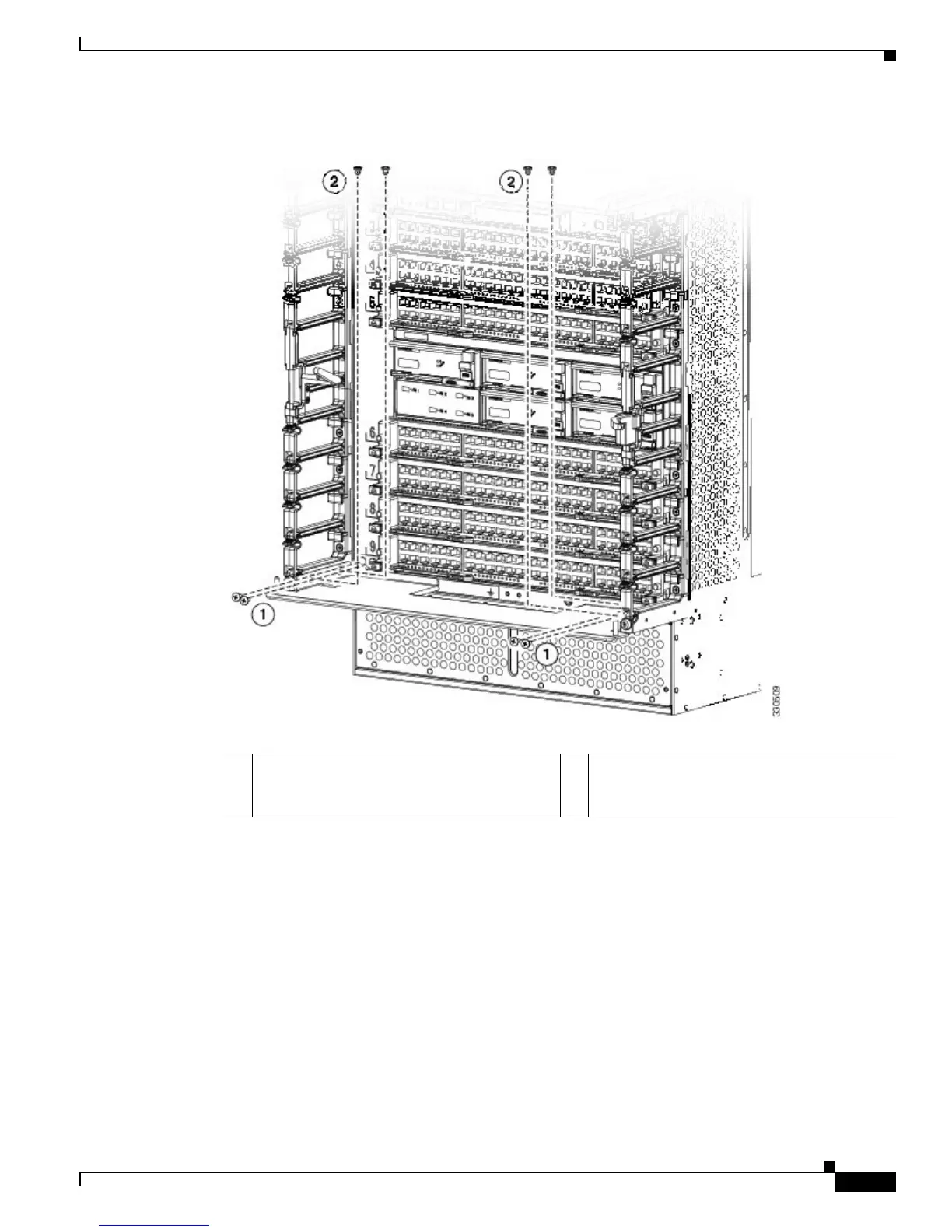

Figure 3-21 Attaching the Hinge Bracket to the Cable Management Frames and Chassis
Step 6
Tighten the four M4x8 screws that fasten the hinge bracket to the chassis to 11 to 15 in-lb (1.2 to
1.7 N·m).
Step 7 Tighten the four M4x8 screws that fasten the hinge bracket to the cable management frame to 11 to
15 in-lb (1.2 to 1.7 N·m).
Step 8 Align the two captive screws on the air intake frame to the two screw holes below the cable management
frames on the chassis as shown in Figure 3-22.
1 Four M4x8 pan-head screws that fasten the
hinge bracket to the chassis.
2 Four M4x8 pan-head screws that fasten the
hinge bracket to the left and right cable
management assemblies.
