Cisco RV180 Administrator's Manual

Introduction
Connecting the Equipment
Cisco RV180/RV180W Administration Guide 12
1

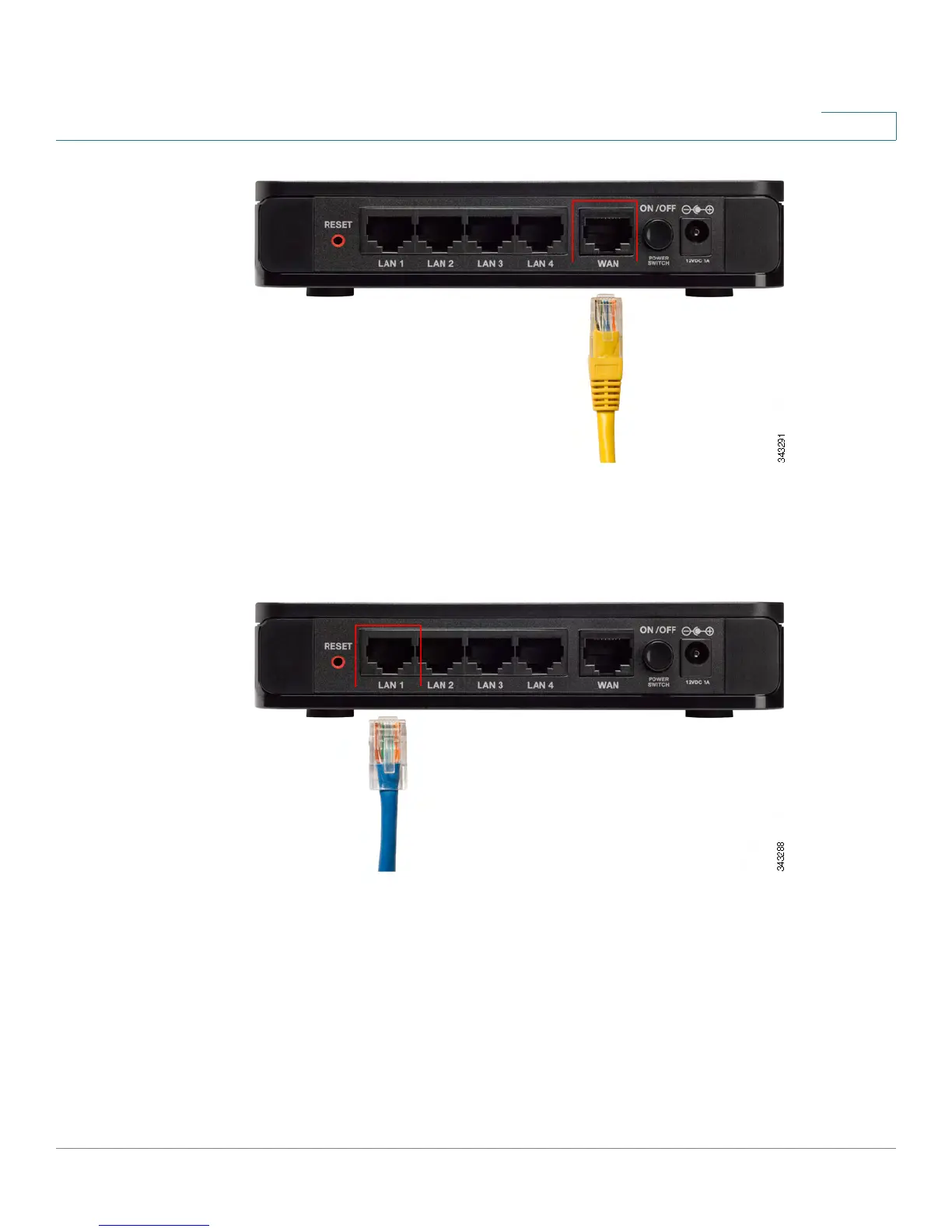

STEP 3 Using the Ethernet cable included in the Cisco RV180/180W box, connect one end
of the cable to one of the LAN ports of the router. (In this example, the LAN 1 port is
used.) Connect the other end of the cable to an Ethernet port on the PC that will be
used to connect to the Cisco RV180/180W Device Manager.
STEP 4 Power on the cable or DSL modem and wait until the connection is active.

Cisco RV180 Specifications

General

WAN Ports	1
LAN Ports	4
VPN Support	Yes
Wireless Support	No
Firewall	Yes
Device Type	VPN Router
VPN Tunnels	10
Authentication	MD5, SHA1
Power Supply	12V DC, 1A
Encryption	3DES, AES
VPN Protocols	IPSec
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 70 °C
Humidity	10% to 85% non-condensing
Dimensions	130 x 130 x 35 mm
Weight	0.28 kg
