Cisco Wireless LAN Controller Configuration Guide

OL-9141-03

Chapter 7 Controlling Lightweight Access Points

Performing a Link Test

Using the GUI to Perform a Link Test

Follow these steps to run a link test using the GUI.

Step 1 Click Wireless > Clients to access the Clients page (see Figure 7-11).

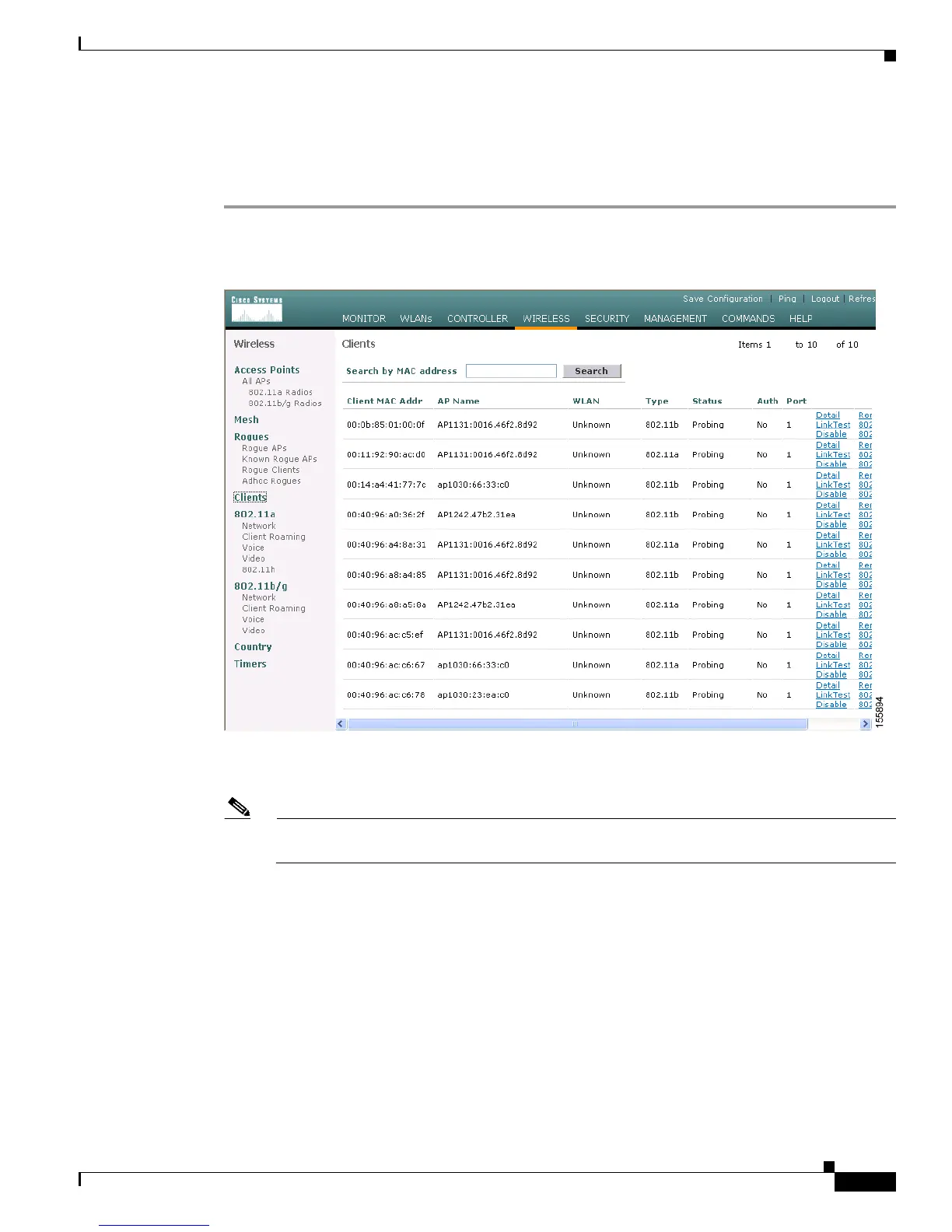

Figure 7-11 Clients Page

Step 2

Click the LinkTest link for the desired client. A link test page appears (see Figure 7-12).

Note You can also access this screen by clicking the Detail link for the desired client and then clicking

the Link Test button on the top of the Clients > Detail page.
