1-5

Cisco Wireless LAN Controller Configuration Guide

OL-9141-03

Chapter 1 Overview

Operating System Software

Figure 1-3 shows a typical multiple-controller deployment. The figure also shows an optional dedicated

Management Network and the three physical connection types between the network and the controllers.

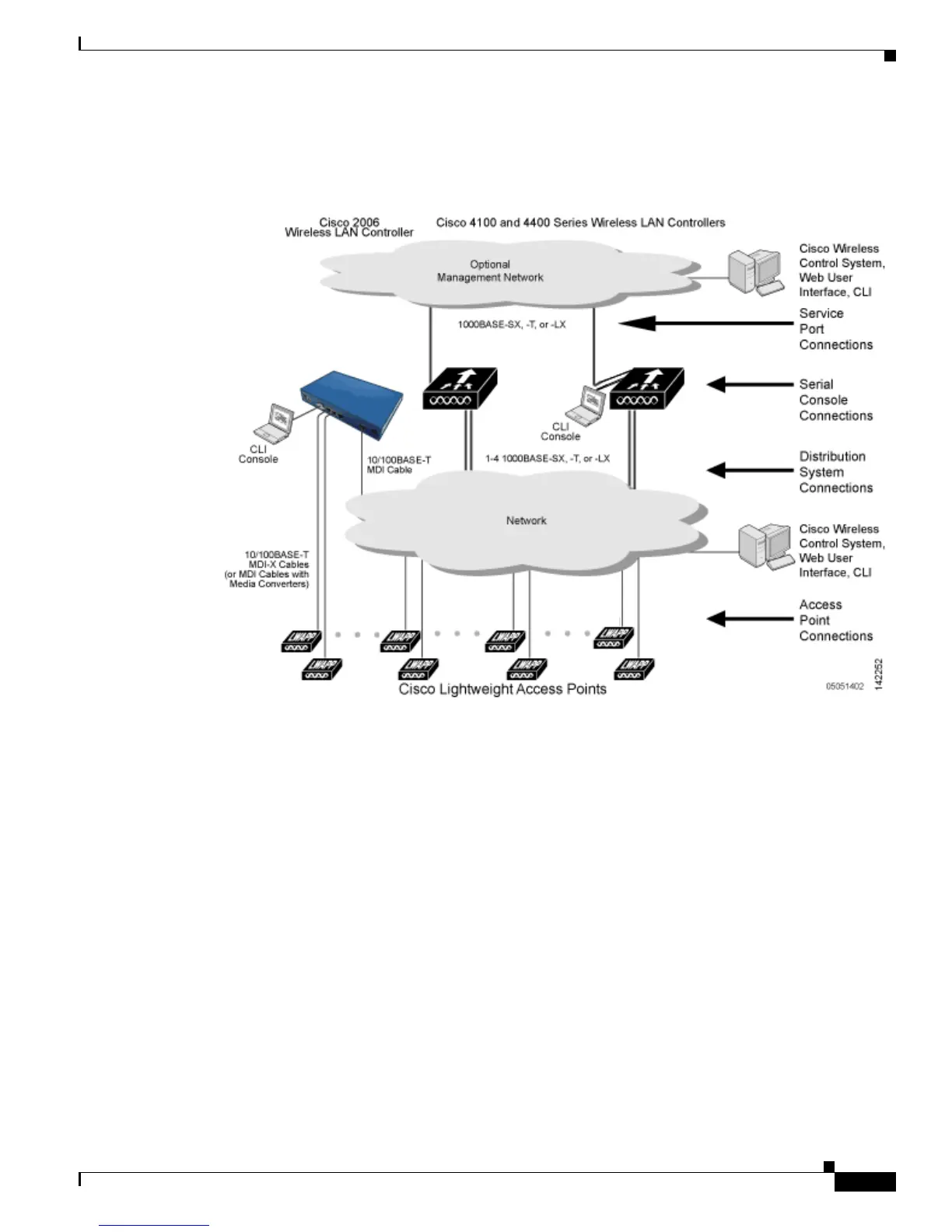

Figure 1-3 Typical Multi-Controller Deployment

Operating System Software

The operating system software controls Cisco Wireless LAN Controllers and Cisco 1000 Series

Lightweight Access Points. It includes full operating system security and Radio Resource Management

(RRM) features.
