Spanning Tree
RSTP Port Settings
SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 198
10
The
RSTP Port Table
contains a list of the interface RSTP configurations on the
device.

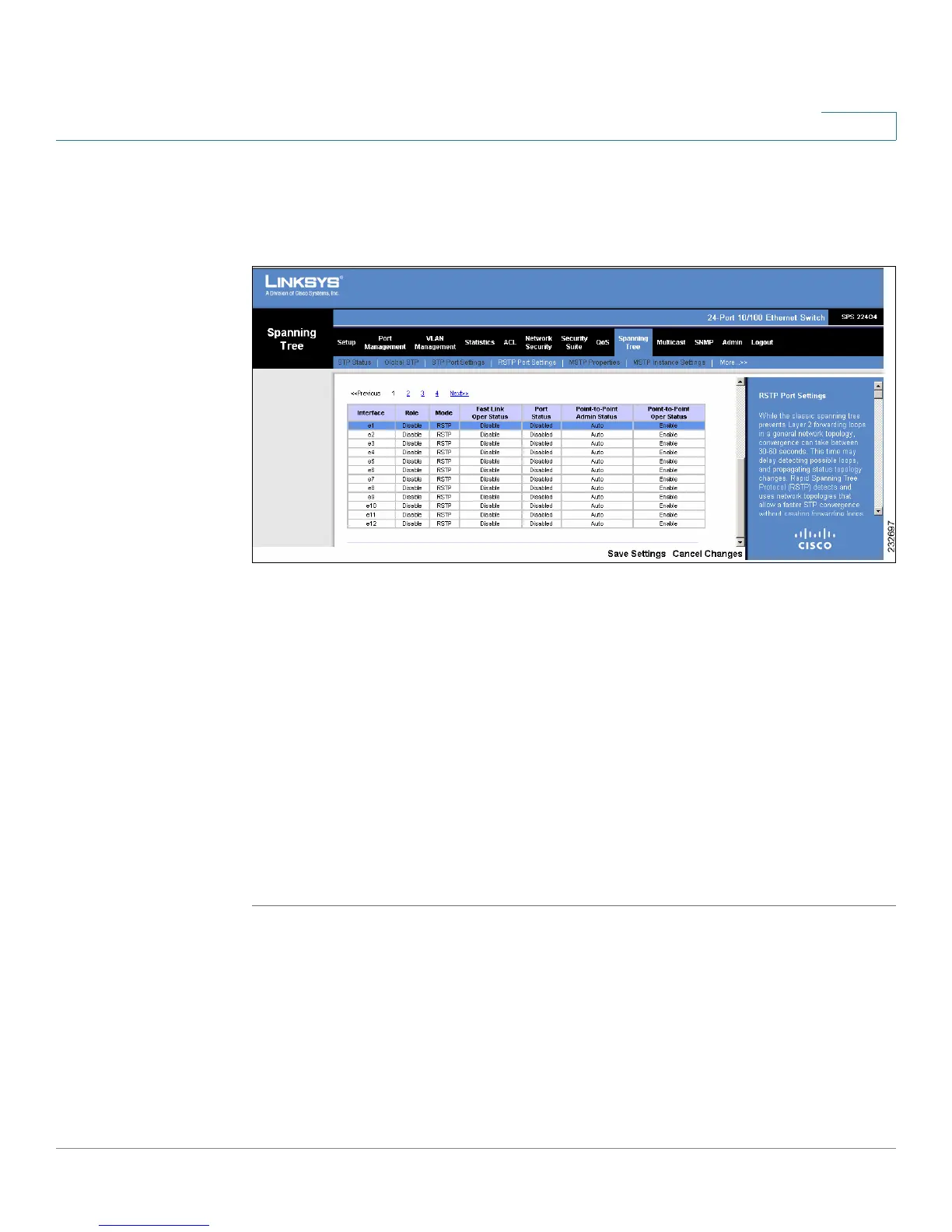

Figure 88 RSTP Port Table
For 8-port devices, the RSTP Port Table displays the interfaces on multiple
screens. To browse to a specific interface entry, click the Previous, 1, 2, and Next
links above the table.
For 24-port devices, the RSTP Port Table displays the interfaces on multiple
screens. To browse to a specific interface entry, click the Previous, 1, 2, 3, and Next
links above the table.
STEP 2 In the RSTP Port Table, select the interface.
STEP 3 Define the point-to-point status of the interface.
STEP 4 Click Update. The interface RSTP configuration is defined and is displayed in the
RSTP Port Table.
STEP 5 Click Save Settings. The RSTP configuration is saved and the device is updated.
