Cisco TelePresence SX10 User Manual

19
D1509712 User Guide
Cisco TelePresence SX10, SX20
Produced: June 2017 for CE9.1
All contents © 2010–2017
Cisco Systems, Inc. All rights reserved.
Your system can be set up so that it
does not respond to incoming calls.
When set to Do Not Disturb,
ringtones are muted and call
attempts made by others to reach
you will appear as missed calls. You
may, however, place calls as much
as you like.
As default, there is a 60 minutes
timeout on the Do not disturb (after
which the system will return to
normal operation), but this may have
been changed to a dierent setting
by your Video Support Team.
Enable Do Not Disturb
Video Calls
About Do Not Disturb

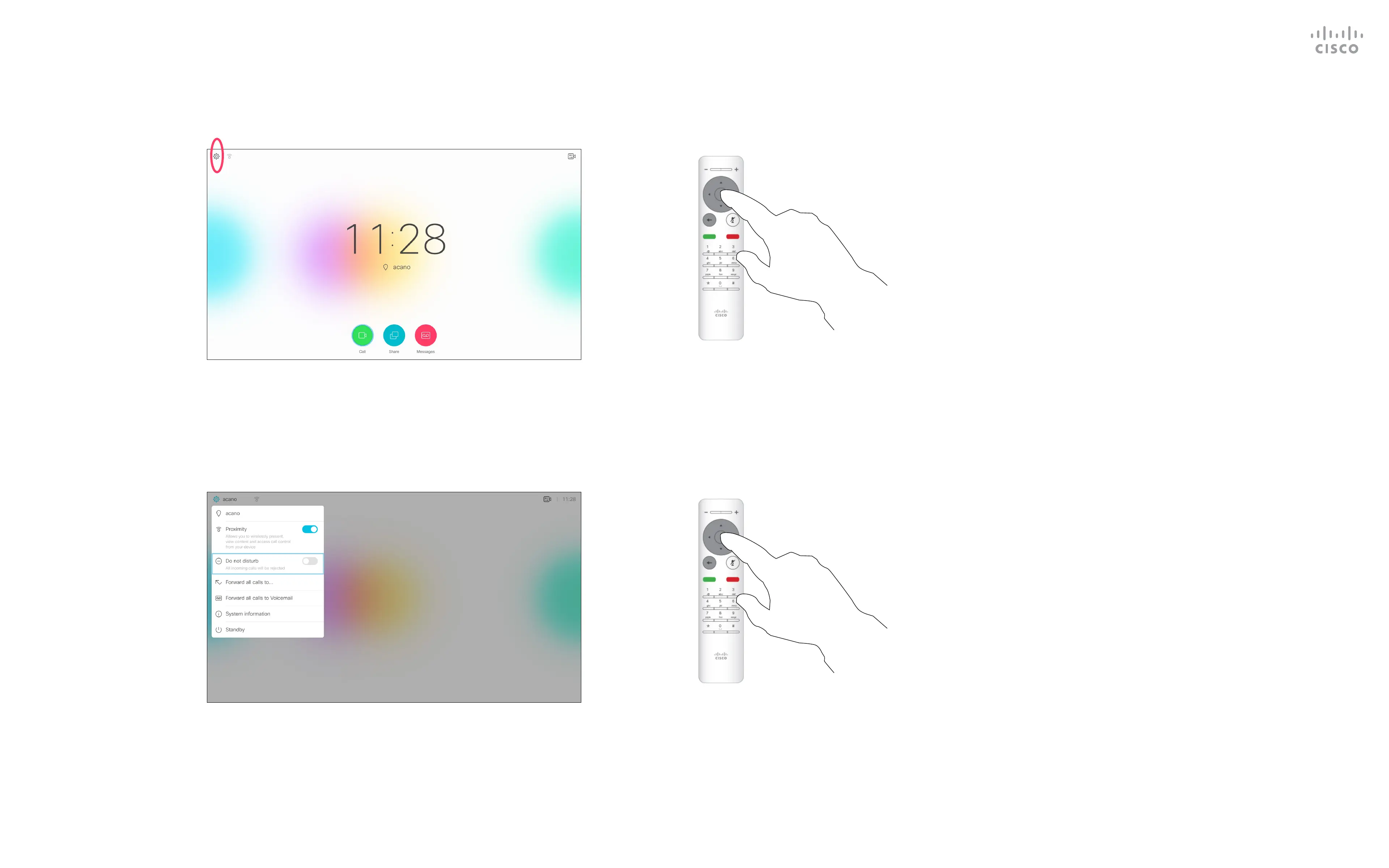

Starting from Home screen, use the Cursor keys on the remote
control to select the Settings icon in the upper left corner of
the screen.
Press OK on the remote control.
Use the Cursor keys on the remote control to navigate down to
Do Not Disturb and use the OK button on the remote control to
set it to On or O (toggling).
Press the OK key on the remote control to exit the menu, putting
changes into eect.
1 2
3 4

Cisco TelePresence SX10 Specifications

General

Digital zoom	2 x
Optical zoom	2.65 x
Supported video modes	1080p, 720p
Video formats supported	H.263, H.264, MPEG4
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Voice codecs	G.711, G.711a, G.722, G.722.1, G.729, G.729A
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	12 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	91 mm
Width	275 mm
Height	117 mm
Weight	900 g
