Cisco TelePresence SX10 User Manual

31
D1509712 User Guide
Cisco TelePresence SX10, SX20
Produced: June 2017 for CE9.1
All contents © 2010–2017
Cisco Systems, Inc. All rights reserved.
Favorites is your own personal di-
rectory. Entries may come from the
corporate directory (for more on
this, see the previous page) or they
may come from someone you call or
someone who call you.

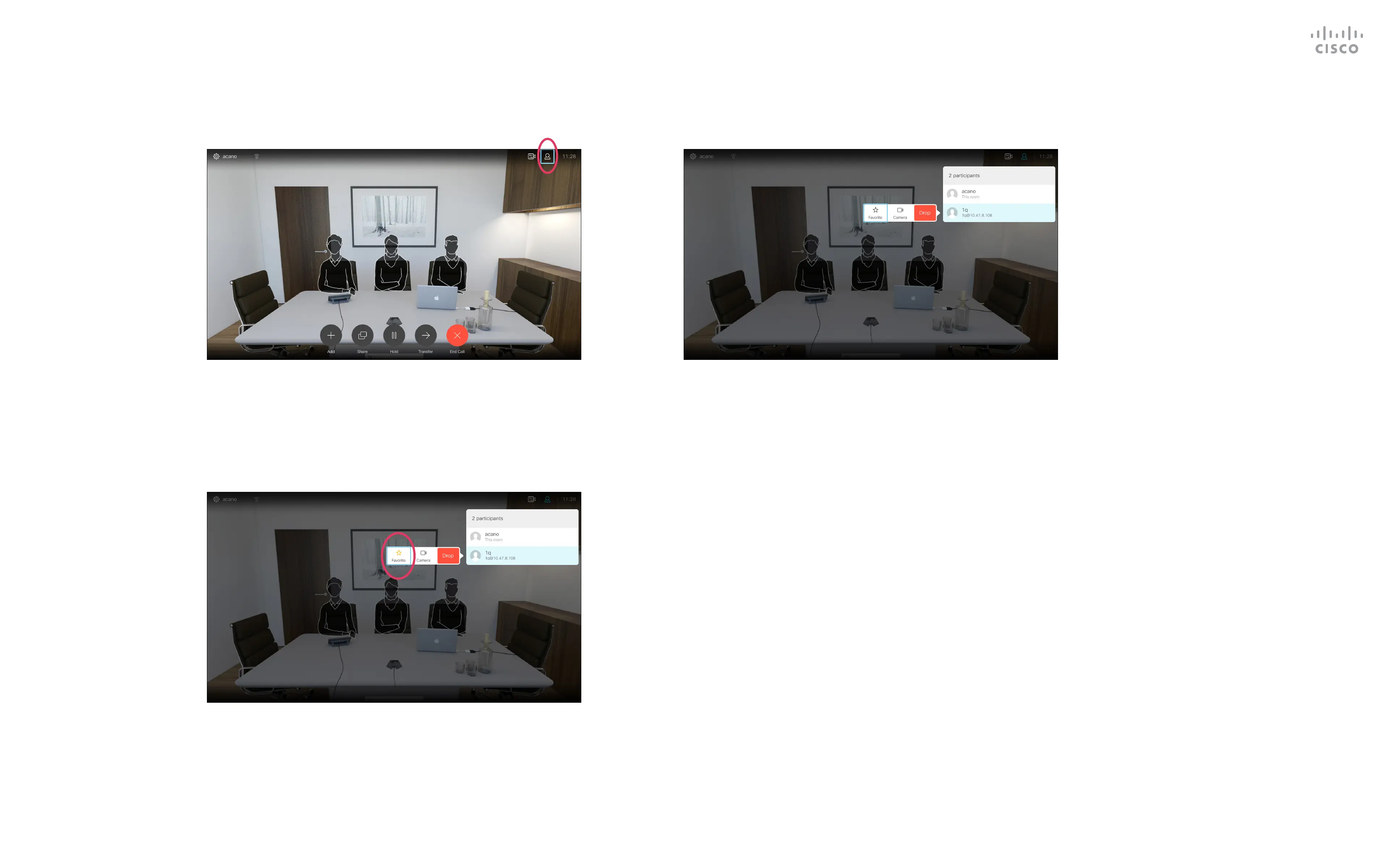

Add Someone to Favorites, While in a Call
Contacts
About Favorites
A menu showing a list of the participants in the call will now
appear. Use the Cursor keys to navigate to the participant to
become a favorite and press OK on the remote control. A
submenu will appear.
In a call, use the remote control to navigate to the Participants
icon in the upper right corner, and press OK on the remote
control.
Then navigate to Favorite in this submenu (far left) and press
OK on the remote control. The selected participant has now
become a Favorite.
Repeat to undo.
1 2
3

Cisco TelePresence SX10 Specifications

General

Digital zoom	2 x
Optical zoom	2.65 x
Supported video modes	1080p, 720p
Video formats supported	H.263, H.264, MPEG4
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Voice codecs	G.711, G.711a, G.722, G.722.1, G.729, G.729A
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	12 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	91 mm
Width	275 mm
Height	117 mm
Weight	900 g
