Cisco TelePresence SX10 User Manual

7
D1509712 User Guide
Cisco TelePresence SX10, SX20
Produced: June 2017 for CE9.1
All contents © 2010–2017
Cisco Systems, Inc. All rights reserved.
The Keypad is used to
dial someone or input
numerals. There is a
raised bump on digit 5 to
identify the keys.
The key below the Mute
key is the Reject incoming
call / End call / Cancel /
Back to Home screen
(outside calls).
1 2 3
4 5 6
7 8 9
*
0
#
.@
pqrs tuv wxyz
defabc
ghi jkl mno
1 2 3
4 5 6
7 8 9
*
0
#
.@
pqrs tuv wxyz
defabc
ghi jkl mno
1 2 3
4 5 6
7 8 9
*
0
#
.@
pqrs tuv wxyz
defabc
ghi jkl mno
1 2 3
4 5 6
7 8 9
*
0
#
.@
pqrs tuv wxyz
defabc
ghi jkl mno
Microphone mute/unmute
is the right circular key.
1 2 3
4 5 6
7 8 9
*
0
#
.@
pqrs tuv wxyz
defabc
ghi jkl mno
The key below the Go back is
the green Call button /
Accept incoming call.
Use the Cursor controls to move
about the screen and press OK/
Enter to open the selected menu
eld.
Use the Cancel key to exit a menu
(and return to the Home screen)
undoing any changes. Use the Back
key to go just one step back.I

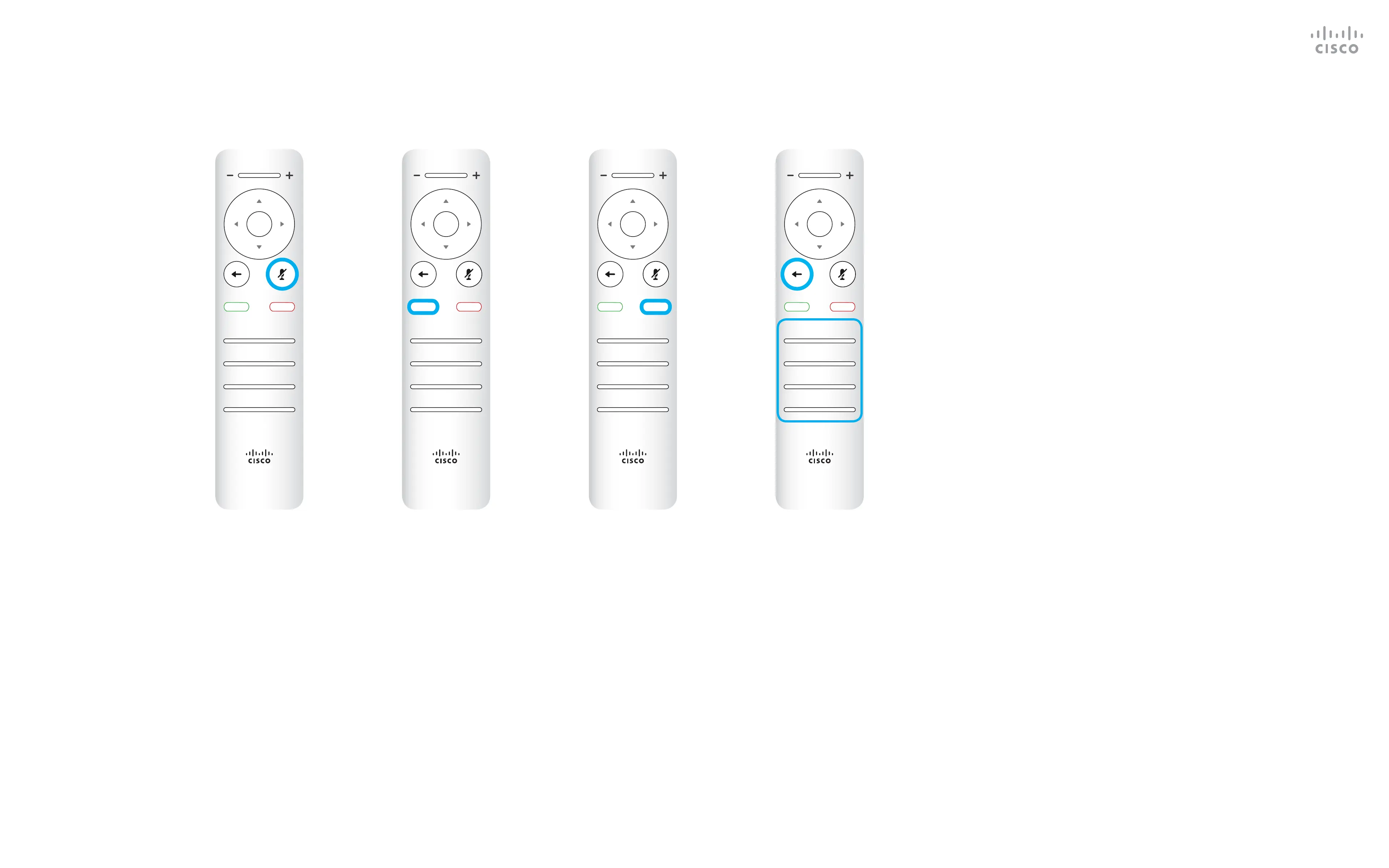

Tour the Remote Control (II)
Introduction
Operating tips

Cisco TelePresence SX10 Specifications

General

Digital zoom	2 x
Optical zoom	2.65 x
Supported video modes	1080p, 720p
Video formats supported	H.263, H.264, MPEG4
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Voice codecs	G.711, G.711a, G.722, G.722.1, G.729, G.729A
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	12 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	91 mm
Width	275 mm
Height	117 mm
Weight	900 g
