Cisco TelePresence SX10 User Manual

6
D1509712 User Guide
Cisco TelePresence SX10, SX20
Produced: June 2017 for CE9.1
All contents © 2010–2017
Cisco Systems, Inc. All rights reserved.

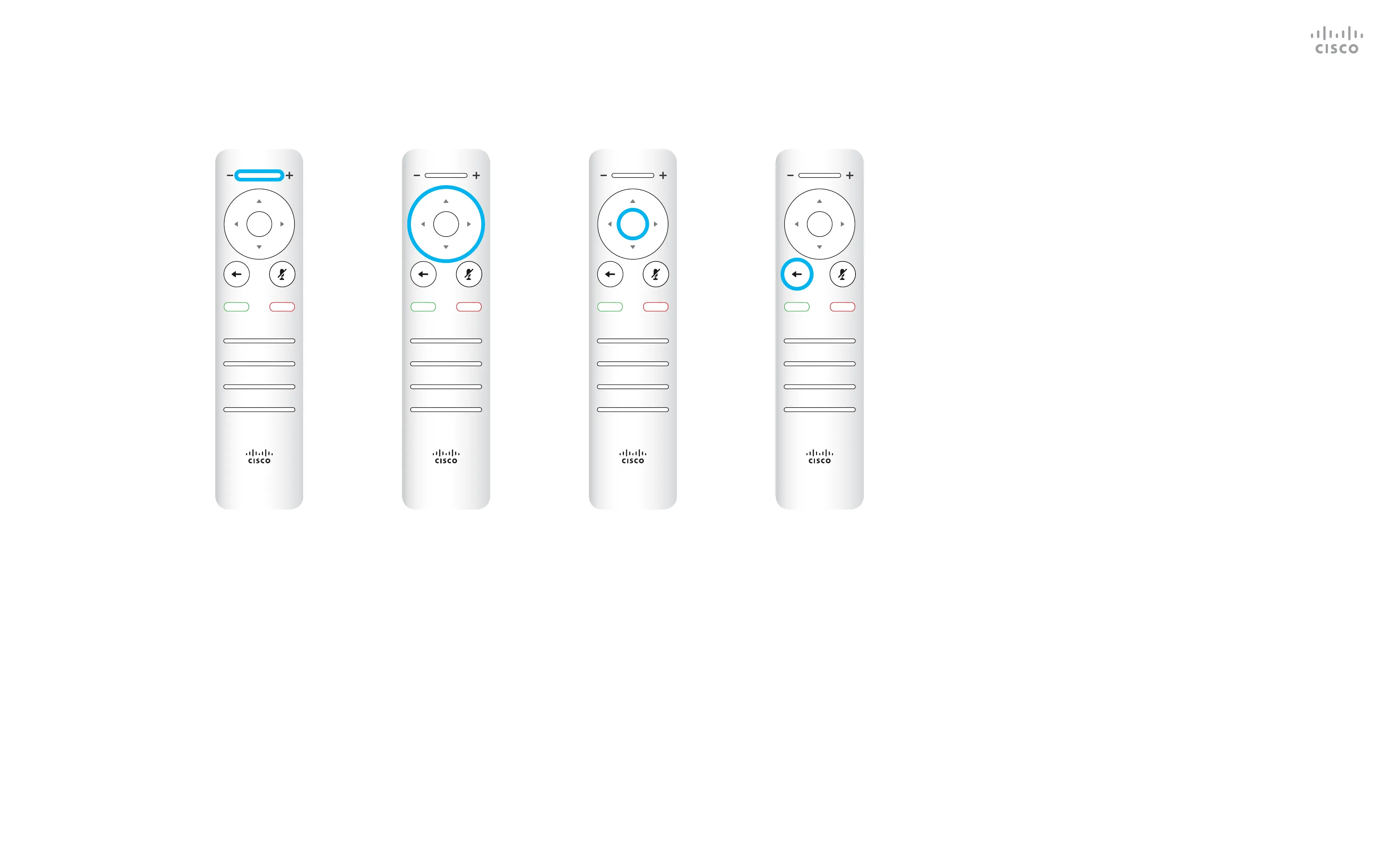

Left part of the uppermost
button controls
Lower volume /Decrease.
Right part of the uppermost
button controls
Higher volume /Increase.
1 2 3
4 5 6
7 8 9
*
0
#
.@
pqrs tuv wxyz
defabc
ghi jkl mno
OK / Enter is
done by means
of the center
circular key.
1 2 3
4 5 6
7 8 9
*
0
#
.@
pqrs tuv wxyz
defabc
ghi jkl mno
Go back one step
is done by means of
the left circular key
1 2 3
4 5 6
7 8 9
*
0
#
.@
pqrs tuv wxyz
defabc
ghi jkl mno
1 2 3
4 5 6
7 8 9
*
0
#
.@
pqrs tuv wxyz
defabc
ghi jkl mno
To operate
Field selector /Cursor
keys use the perimeter
keys of the circular eld
(Left/Right/Up/Down).
Use the Cursor controls to move
about the screen and press OK/
Enter to open the selected menu
eld.
Use the Cancel key to exit a menu
(and return to the Home screen)
undoing any changes. Use the Back
key to go just one step back.I
Tour the Remote Control (I)
Introduction
Operating tips

Cisco TelePresence SX10 Specifications

General

Digital zoom	2 x
Optical zoom	2.65 x
Supported video modes	1080p, 720p
Video formats supported	H.263, H.264, MPEG4
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Voice codecs	G.711, G.711a, G.722, G.722.1, G.729, G.729A
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	12 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	91 mm
Width	275 mm
Height	117 mm
Weight	900 g
