View Camera Settings (Local camera)
Camera Control
The camera settings let you control
the zoom, pan and tilt of your own
camera.
The self-view (the image that the
others see from your system) can
be turned on and o as well as be
shown minimized or maximized (full
screen).
You may want the self-view to be
always shown, this is called to make
it sticky.
About Camera Settings

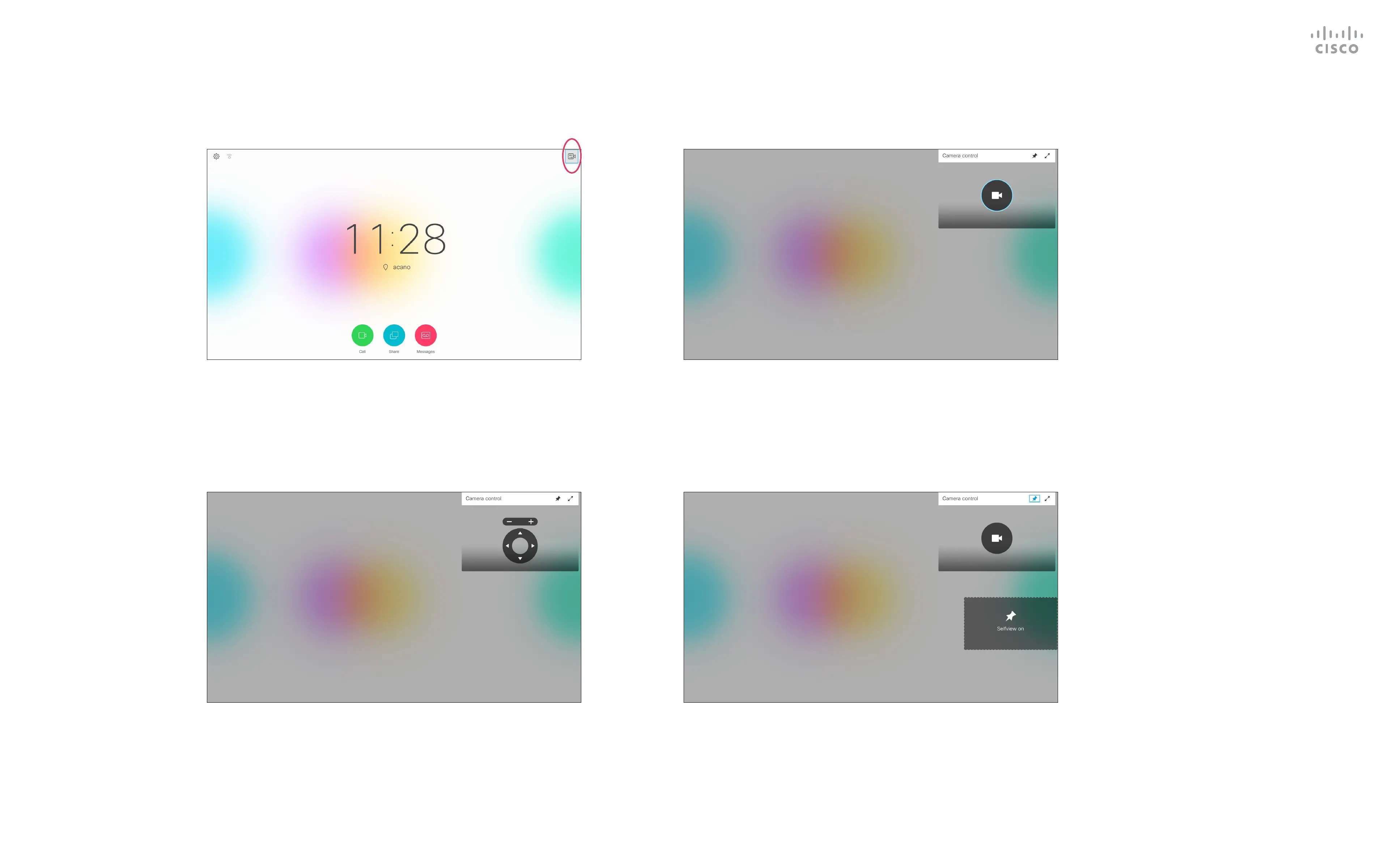

The camera icon will now appear. Press OK again on the remote
control.
In a call or outside a call (as shown here), move cursor up to
the upper right corner to the Camera icon. Press OK on the
remote control.
You may now make the adjust the pan, zoom and tilt of the
camera. Use the Increase/Decrease controls of the remote
control to adjust the zoom and the Cursor keys to adjust pan
and tilt.
You may also make the self-view image sticky (always shown) and/
or maximize it by selecting the icons in the upper right corner of this
menu.
Press Back on the remote control to exit the menu.
1 2
3 4

Cisco TelePresence SX10 Specifications

General

Digital zoom	2 x
Optical zoom	2.65 x
Supported video modes	1080p, 720p
Video formats supported	H.263, H.264, MPEG4
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Voice codecs	G.711, G.711a, G.722, G.722.1, G.729, G.729A
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	12 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	91 mm
Width	275 mm
Height	117 mm
Weight	900 g
