Cisco TelePresence SX10 User Manual

34
D1509712 User Guide
Cisco TelePresence SX10, SX20
Produced: June 2017 for CE9.1
All contents © 2010–2017
Cisco Systems, Inc. All rights reserved.
Far end Camera Control
Camera Control
Many video systems have a
remotely controllable camera. Such
systems allow you to use a remote
control to change pan, tilt, and
zoom.
If the far end (those you are in a
meeting with) have such a system,
you may be able to control their
camera during the call.
About Far End
Camera Control

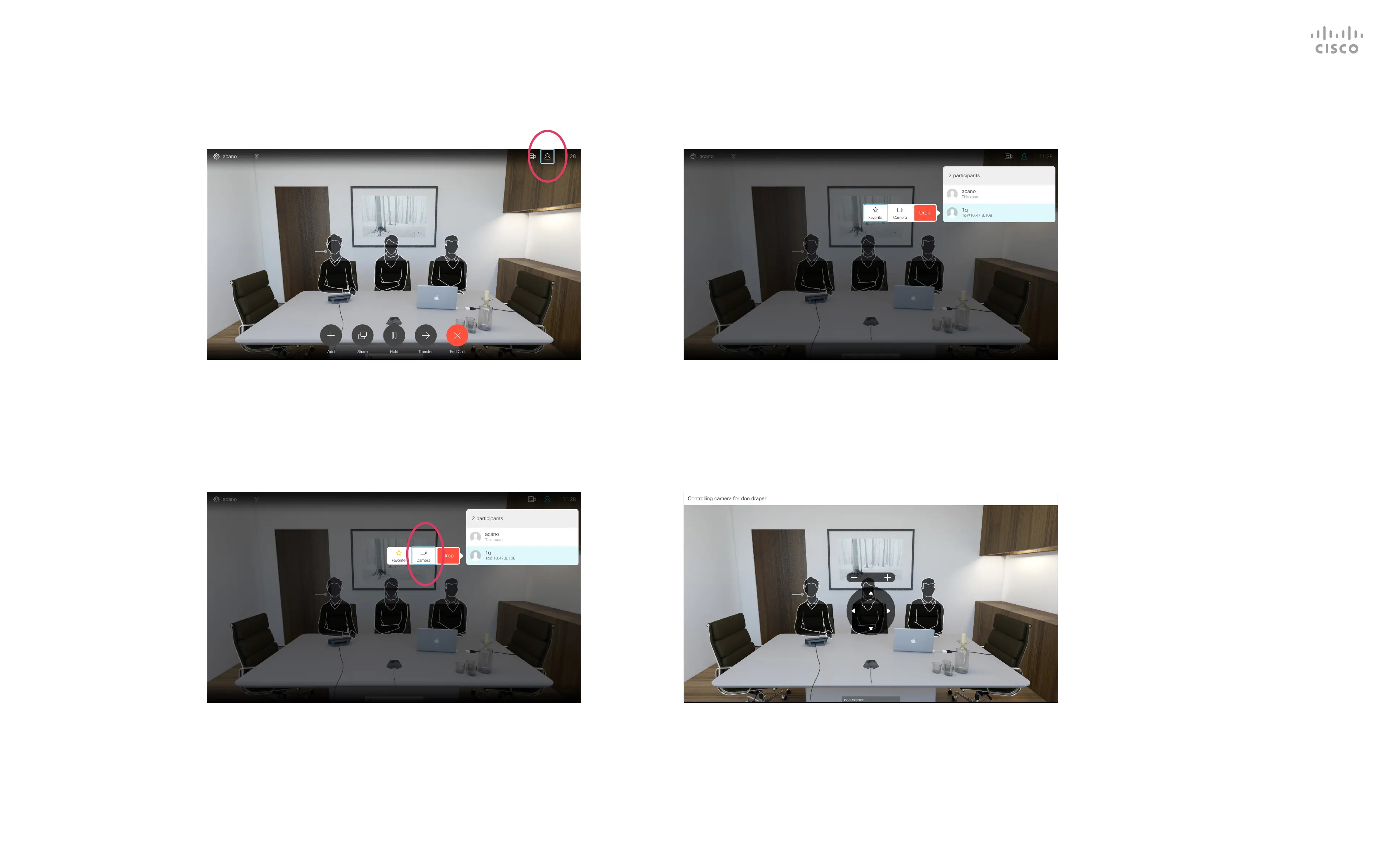

A menu showing a list of the participants in the call will now appear.
Navigate to the participant, whose camera you want to control and
press OK on the remote control. A submenu will now appear.
Navigate to Participants in the upper right corner and press OK
on the remote control.
To control the far end camera navigate to Camera (number two
from the right) and click OK on the remote control.
Adjust Pan, Tilt and Zoom as per your liking. Use OK or Back on the
remote control to exit.
1 2
3 4

Cisco TelePresence SX10 Specifications

General

Digital zoom	2 x
Optical zoom	2.65 x
Supported video modes	1080p, 720p
Video formats supported	H.263, H.264, MPEG4
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Voice codecs	G.711, G.711a, G.722, G.722.1, G.729, G.729A
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	12 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	91 mm
Width	275 mm
Height	117 mm
Weight	900 g
