Setting Up and Configuring the WRVS4400N Wireless-N Router
Configuring the VPN Settings
Cisco WRVS4400N Wireless-N Gigabit Security Router with VPN Administration Guide 106
5

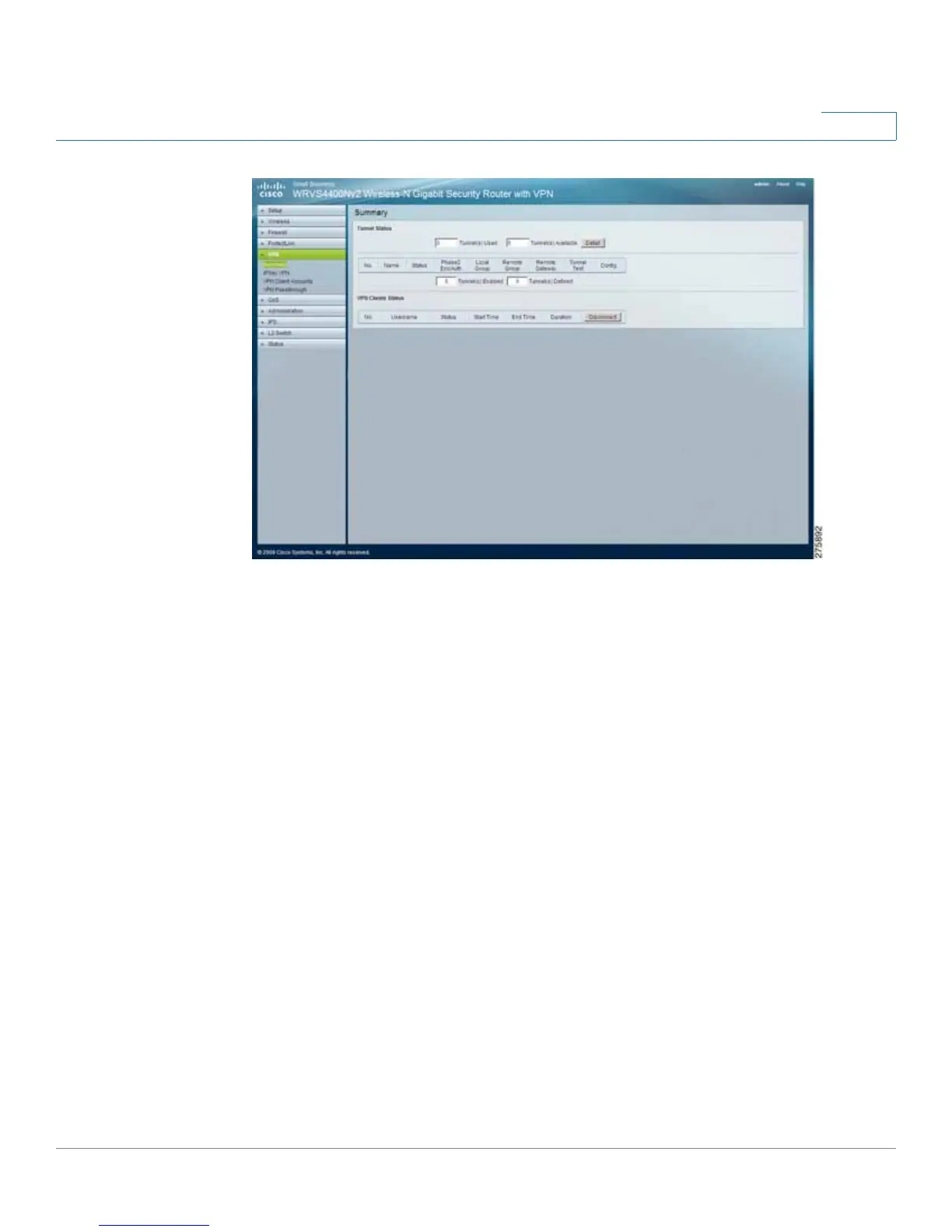

• Tunnel Status
- Tunnels(s) Used—Displays the number of tunnels used.
- Tunnel(s) Available—Displays the number of available tunnels.
- Detail button—Click Detail to display more tunnel information.
- No—Displays the number of the tunnel.
- Name—Displays the name of the tunnel, as defined by the Tunnel Name
field on the VPN > IPSec VPN window.
- Status—Displays the tunnel's status: Connected, Hostname Resolution
Failed, Resolving Hostname, or Waiting for Connection.
- Phase Enc/Auth—Displays the Phase 2 Encryption type (3DES),
Authentication type (MD5 or SHA1), and Group (768-bit, 1024-bit, or
1536-bit) that you chose in the VPN > IPSec VPN window.
- Local Group—Displays the IP address and subnet of the local group.
- Remote Group—Displays the IP address and subnet of the remote
group.
- Remote Gateway—Displays the IP address of the remote gateway.
