Chapter 31 Configuring Network Security with ACLs

Using VLAN Maps with Router ACLs

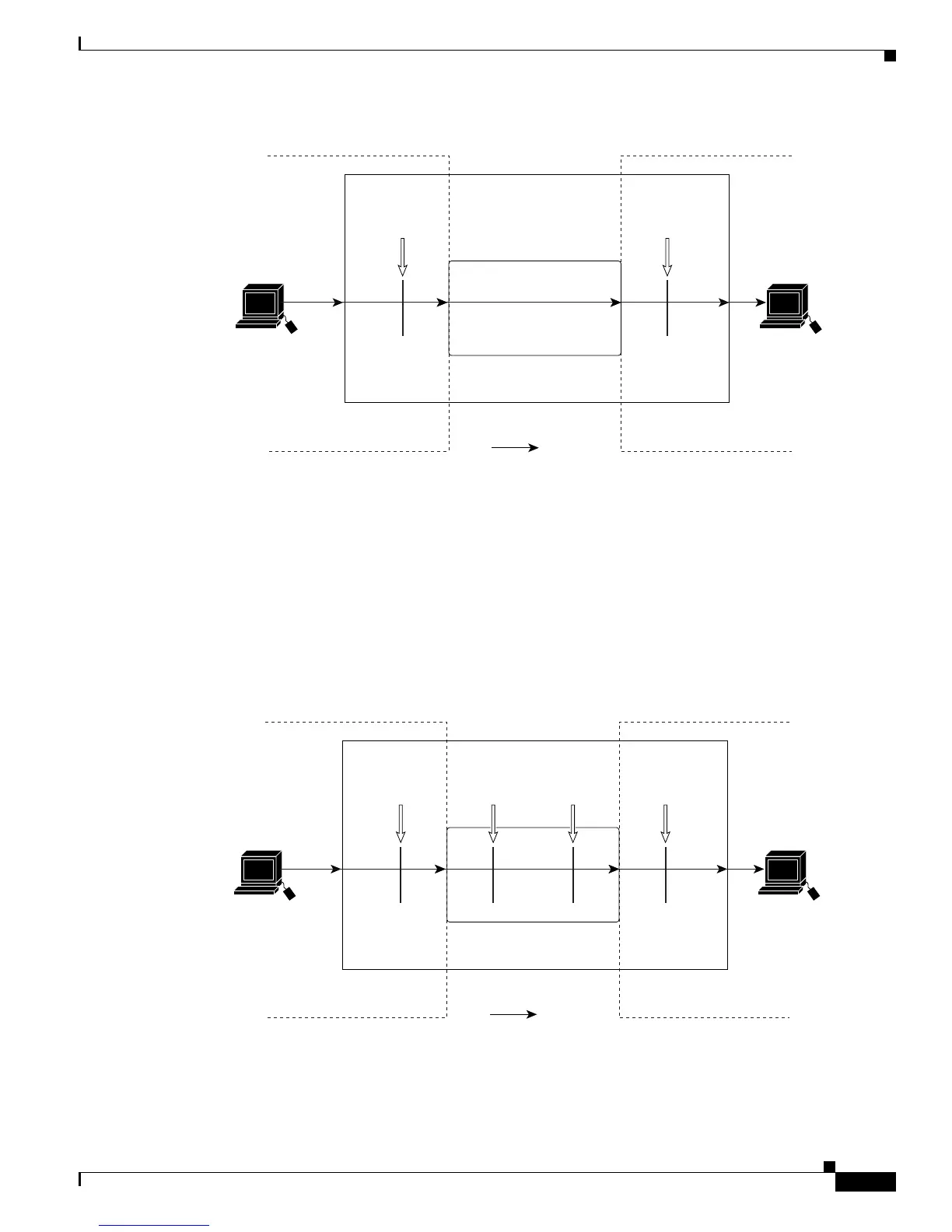

Figure 31-7 Applying ACLs on Bridged Packets

ACLs and Routed Packets

Figure 31-8 shows how ACLs are applied on routed packets. For routed packets, the ACLs are applied

in this order:

1. VLAN map for input VLAN

2. Input router ACL

3. Output router ACL

4. VLAN map for output VLAN

Figure 31-8 Applying ACLs on Routed Packets

Frame

Fallback bridge

VLAN 10

Host A

(VLAN 10)

Packet

101358

VLAN 20

Host B

(VLAN 20)

VLAN 10

map

VLAN 20

map

Frame

Routing function

VLAN 10

Host A

(VLAN 10)

Packet

101359

VLAN 20

Host B

(VLAN 20)

VLAN 10

map

Input

router

ACL

Output

router

ACL

VLAN 20

map
