Citizen CL-E331 - Page 39

39
——
5.

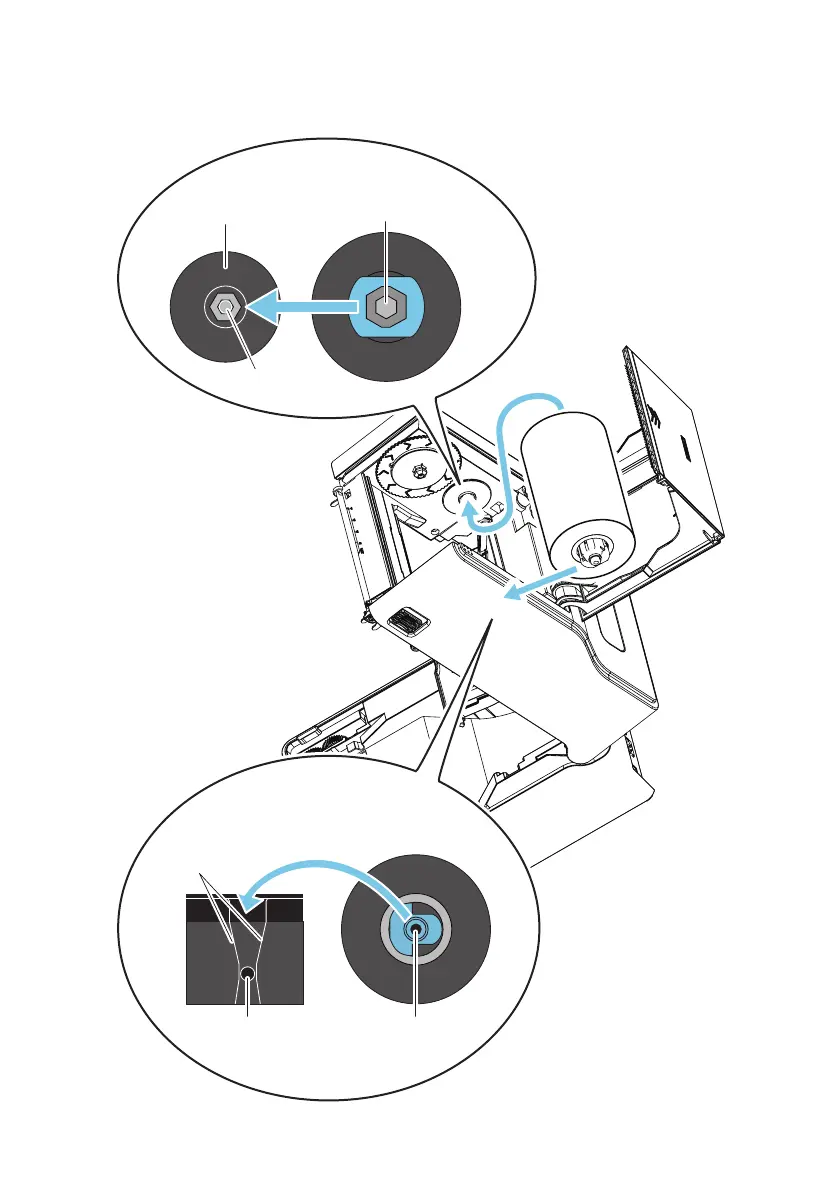

Set the ribbon shaft with the loaded ribbon on the delivery side of the ribbon drive part.
Insert the right part of the ribbon shaft along the attachment guides and into the attachment
hole while pressing the left part of the ribbon shaft against the protruding part of the ange.
Protruding
part
Flange
on delivery side
Attachment hole in
left part of ribbon shaft
Ribbon shaft
attachment guides
on delivery side
Ribbon shaft
attachment hole
on delivery side
Protrusion of
right part of
ribbon shaft
