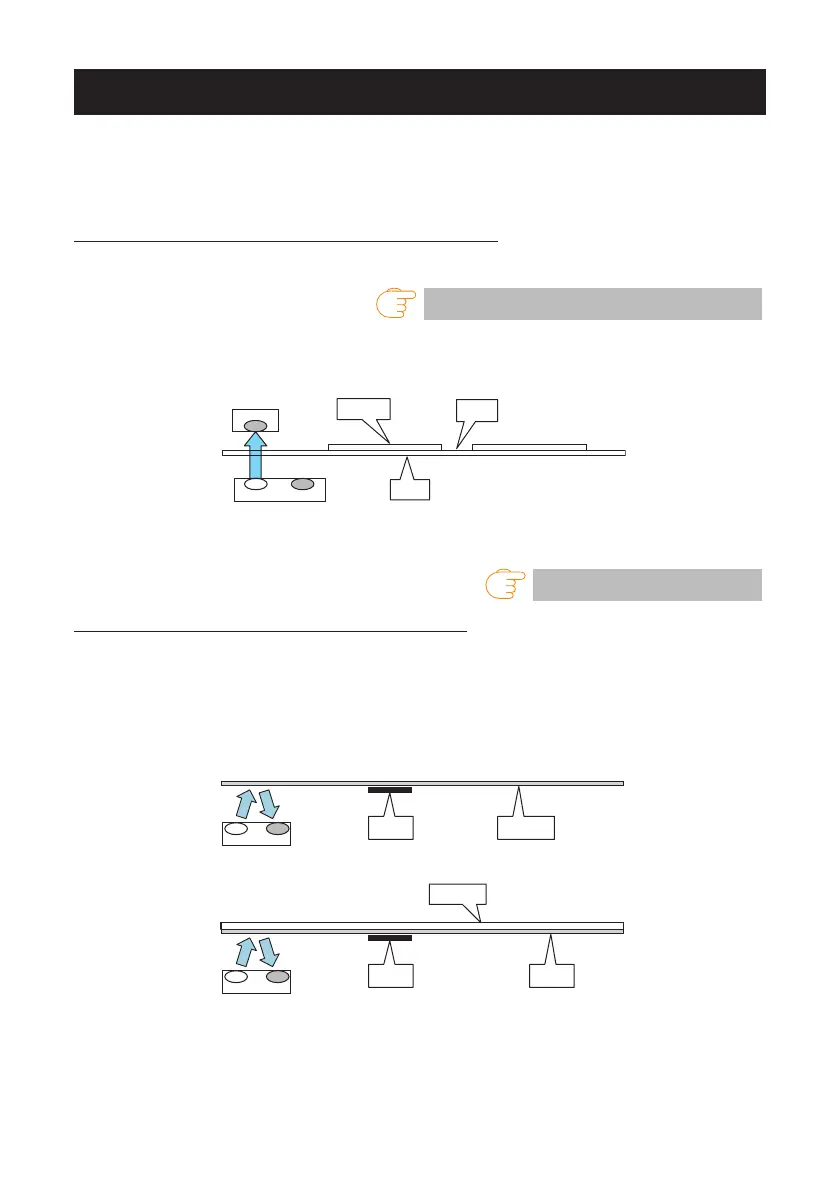

7.1 Sensor Adjustment Mode
Use this mode to adjust media sensors (upper or lower) in accordance with the media
used.
Set the sensor position and media before starting this adjustment procedure.
Setting transmissive sensor positions and media
1. Align the bottom sensor and upper sensor with each other at the same position.
Refer to Transmissive Sensor Adjustment
2. Peel a label and set the media so that only the backing paper (glassine paper) reaches
the platen roller and media sensor.
If the media has black lines, do not set the media so that a black line is between the sensors.
Label
Liner
media
Media
gap
Bottom sensor
Upper sensor
3. Adjust the sensors.
Refer to Sensor adjustment
Setting reflective sensor positions and media
1. Adjust the reective sensor so that it is underneath the media.
2. Set the media so that the media covers the platen roller and media sensor.
Set that media so that black lines or gaps between labels do not cover the sensor.
 Using continuous media and label media without gaps between labels
Set the media so that a section without a black line (or label face stock for label media)
does not cover the platen roller and media sensor.
Black
mark
Label
Liner
media
Bottom sensor
Black
mark
Continuous
media
Bottom sensor

Citizen CL-E331 Specifications

General

Product color	Black
Print technology	Thermal transfer
Printing media thickness	63.5 - 190 µm
Sustainability compliance	Yes
Sustainability certificates	CE, Federal Communications Commission (FCC), TUV, UL ECOLOGO, VCCI
Display	-
Control type	Buttons
Color	No
Maximum resolution	- DPI
Printable dot numbers	300 dot
Ribbon width	60 mm
Core diameter	25 mm
Ribbon length	300 m
Media thickness	0.150 mm
Maximum label width	118 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
RS-232 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Flash memory	16 MB
Internal memory	32 MB
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, ITF, PDF417, QR Code, UPC-A, UPC-E
Server operating systems supported	Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Windows operating systems supported	Windows 10, Windows 11, Windows 7

Weight and Dimensions

Depth	266 mm
Width	178 mm
Height	173 mm
Weight	2600 g
Label width	104 mm
