Citrix NetScaler SDX 11500, SDX 13500, SDX 14500,
SDX 16500, SDX 18500, and SDX 20500
Oct 25, 2013
The Citrix NetScaler models SDX 11500/13500/14500/16500/18500/20500 are 2U appliances. Each model has two 6-core
processors for a total of 12 physical cores (24 cores with hyper-threading), and 48 gigabytes (GB) of memory.

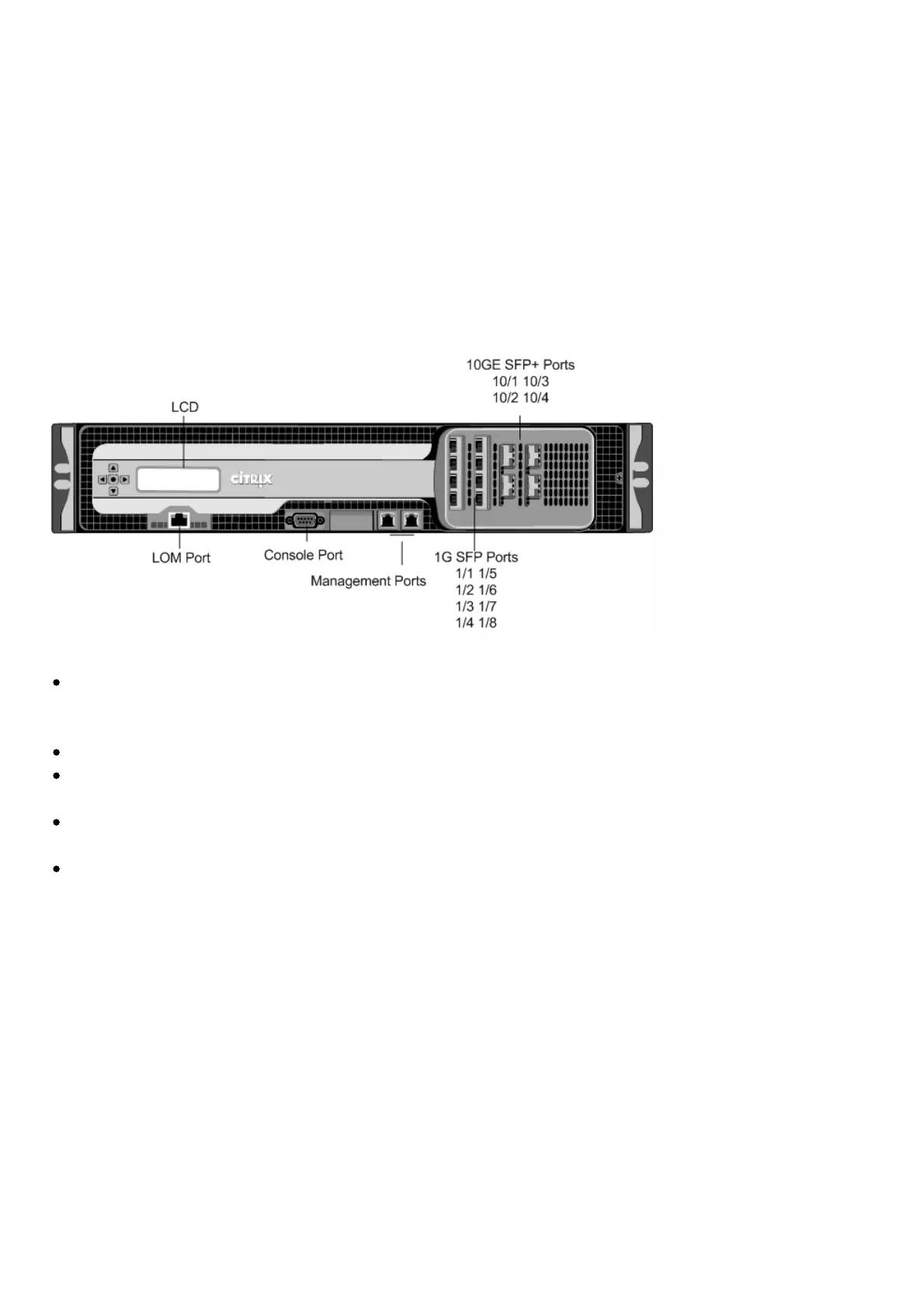

The following figure shows the front panel of the SDX 11500/13500/14500/16500/18500/20500 appliance.
Figure 1. Citrix NetScaler SDX 11500/13500/14500/16500/18500/20500 appliance, front panel
The SDX 11500/13500/14500/16500/18500/20500 appliances have the following ports:
10/100Base-T copper Ethernet Port (RJ45), also called LOM port. You can use this port to remotely monitor and manage
the appliance independently of the NetScaler software.
Note: The LEDs on the LOM port are not operational by design.
RS232 serial console port.
Two 10/100/1000Base-T copper Ethernet management ports (RJ45), numbered 0/1 and 0/2 from left to right. These
ports are used to connect directly to the appliance for system administration functions.
Eight 1G SFP ports numbered 1/1, 1/2, 1/3, 1/4 from top to bottom in the first column, and 1/5, 1/6, 1/7, and 1/8 from
top to bottom in the second column.
Four 10GE SFP+ ports numbered 10/1 and 10/2 from top to bottom in the first column, and 10/3 and 10/4 from top to
bottom in the second column.
The following figure shows the back panel of the SDX 11500/13500/14500/16500/18500/20500 appliance.
Figure 2. Citrix NetScaler SDX 11500/13500/14500/16500/18500/20500 appliance, back panel
