Citrix NetScaler SDX 25100-40G, SDX 25160-40G
Mar 24, 2016
The Citrix NetScaler SDX 25100-40G, SDX 25160-40G are 2U appliances. Each model has two 10-core processors, 256
gigabytes (GB) of memory, four 40G QSFP+ ports, and sixteen 10G SFP+ ports (4x40G QSFP+ + 16x10G SFP+).
The following figure shows the front panel of the SDX 25100-40G, SDX 25160-40G (4x40G QSFP+ + 16x10G SFP+)
appliance.

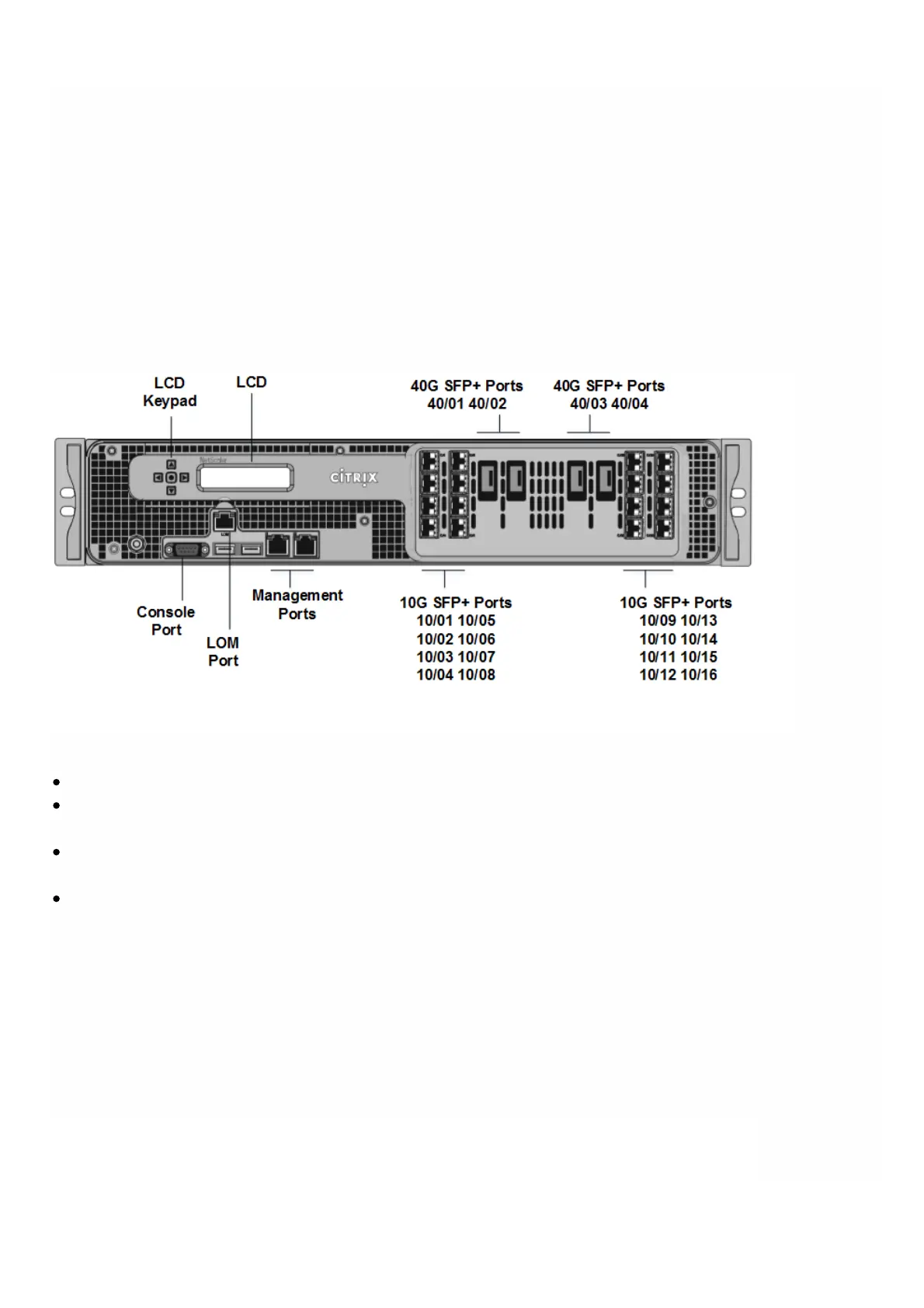

Figure 1Figure 1. Citrix NetScaler SDX 25100-40G, SDX 25160-40G (4x40G QSFP+ + 16x10G SFP+), front panel
The NetScaler SDX 25100 40G, SDX 25160 40G appliances have the following ports:
RS232 serial Console Port.
10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can usethis port to remotely monitor and
manage the appliance independently of the NetScaler software.
Two 10/100/1000Base-T copper Ethernet Management Ports (RJ45), numbered 0/1and 0/2 from left to right. These
ports are used to connect directly to the appliancefor system administration functions.
Network Ports, four 40G QSFP+ ports and sixteen 10G SFP+ ports (4x40G QSFP+ + 16x10G SFP+).
Note the following points regarding the network ports on SDX 25100-40G, SDX 25160-40G appliances:
o 10G ports do not support 1G copper or 1G fiber transceivers.
o 40G ports do not support 10G and 1G transceivers.
The following figure shows the back panel of the SDX 25100-40G, SDX 25160-40G appliance.
Figure 2Figure 2. Citrix NetScaler SDX 25100-40G and SDX 25160-40G back panel
