appliance.

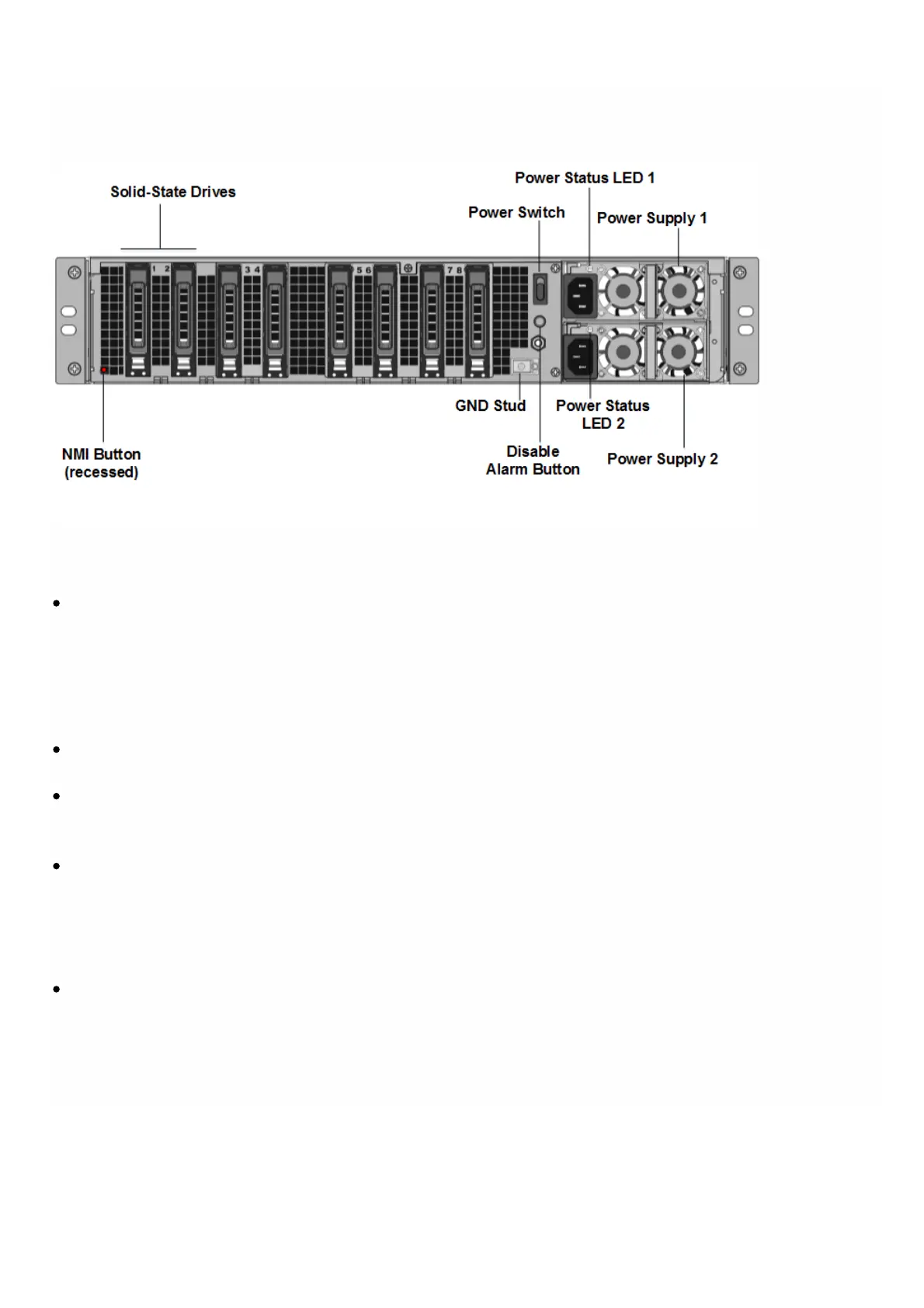

Figure 2. Citrix NetScaler SDX 14020 40G, SDX 14040 40G, SDX 14060 40G, SDX 14080 40G, back panel
The following components are visible on the back panel of the SDX 14020 40G, SDX 14040 40G, SDX 14060 40G, SDX
14080 40G appliance:
Two 240 GB removable solid-state drives (SSDs). The two leftmost solid-state drives store the NetScaler software. The
next two solid-state drives store user data. The remaining four solid-state drives are reserved for future use.These
appliances are redundant array of independent disks (RAID) devices. In a RAID configuration, the same data is stored on
multiple drives to improve performance, increase storage capacity, lower the risk of data loss, and provide fault tolerance.
The two SSDs store the same data. If one fails and you replace it, the new SSD mirrors the other one.
Power switch, which turns power to the appliance on or off. Press the switch for lessthan two seconds to turn off the
power.
Two power supplies, each rated at 1000 watts, 100-240 volts. Each power supply hasan LED that indicates the status of
the power supply, as described in http://docs.citrix.com/en-us/netscaler/10-1/ns-gen-hardware-wrapper-10-con/ns-
hardware-common-components-ref.html.
Disable alarm button, which is functional only when the appliance has two powersupplies.
Press this button to stop the power alarm from sounding when you have plugged the appliance into only one power
outlet, or when one power supply is malfunctioning and you want to continue operating the appliance until it is
repaired.
Non-maskable interrupt (NMI) Button, used at the request of Technical Support toinitiate a core dump. To press this red
button, which is recessed to preventunintentional activation, use a pen, pencil, or other pointed object. The NMI Button
is also available remotely over the network in the LOM GUI, in the Remote Control menu. For more information about
the lights out management port of the appliance, see http://docs.citrix.com/en-us/netscaler/10-1/ns-gen-hardware-
wrapper-10-con/ns-hardware-lom-intro-wrapper-con.html.
