3. Install the adjustable rail assembly into the rack as shown in the following figures. Use a screw to lock the rear rail flange
into the rack. With the screw securing the rail in place, you can optionally remove the latching spring.

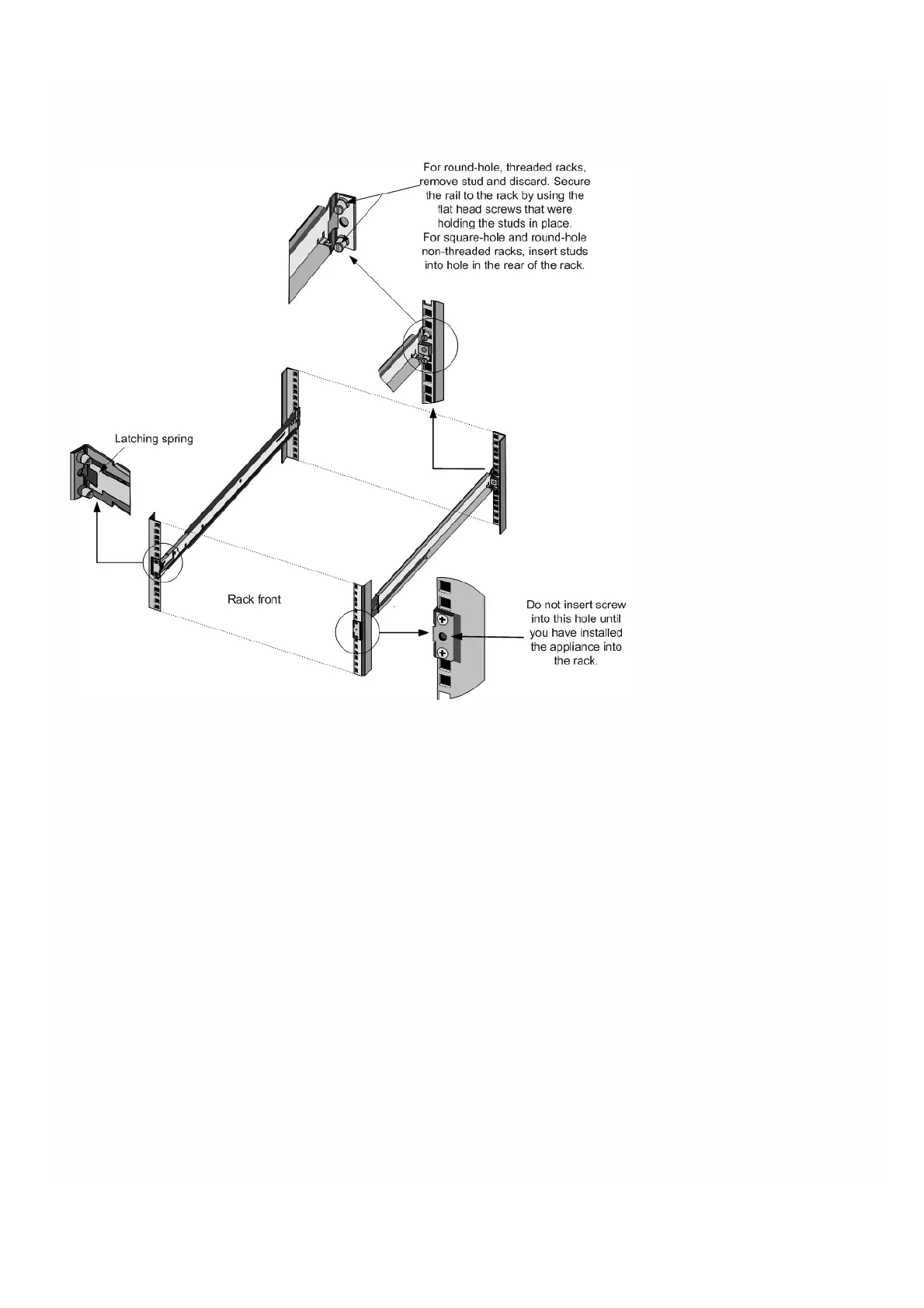

Figure 4. Installing the Rail Assembly to the Rack
To install the appliance in the rack
1. Align the inner rails, attached to the appliance, with the rack rails.
2. Slide the appliance into the rack rails, keeping the pressure even on both sides.
3. Verify that the appliance is locked in place by pulling it all the way out from the rack.
Figure 5. Rack Mounting the Appliance
