ENGINE
187
CHECKING AND SETTING THE VALVE TIMING
Engine : WJY
TOOLS
- [1] HM screw : (-) 0 188 E
- [2] Locating peg Ø 6 mm : (-) 0 188 H
- [3] Flywheel locating peg : (-) 0 188 D ( or 7014-T.J) Tool kit (-) 0 188.
- [4] Toothed sector for locking the flywheel : (-) 0 188 F
- [5] Belt retaining clip : (-) 0 188 K
- [6] Square drive for adjusting the tension : (-) 0 188 J
- [7] Belt tension measuring instrument : 4122-T
- [8] Toothed sector for locking the flywheel : 6016-T
Checking the valve timing

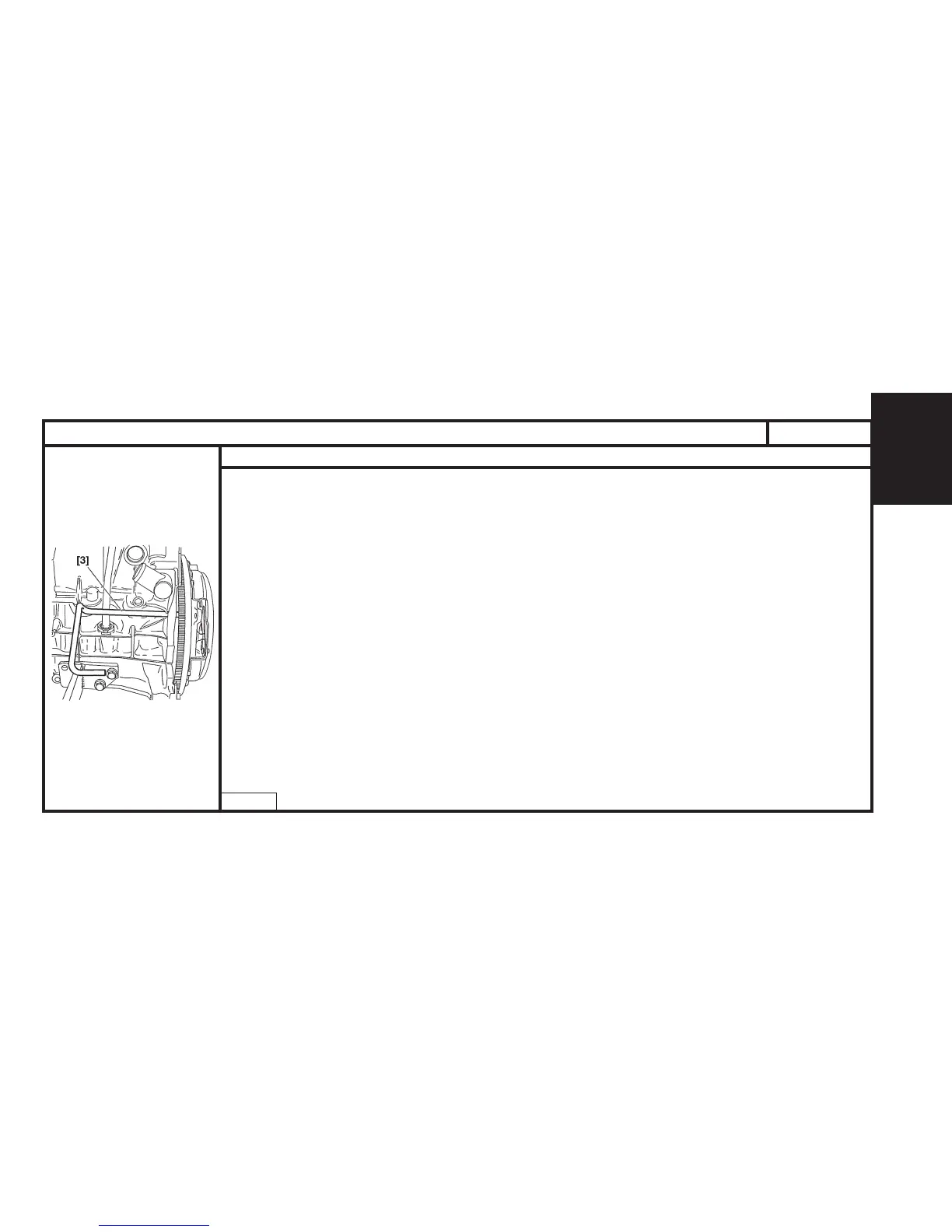

- Peg the flywheel using tool [3].
- Visually check that the offset between the camshaft and injection pump hub holes, and the corresponding
pegging holes do not exceed 1 mm.
B1CP045C
XSARA
