188
ENGINE
XSARA

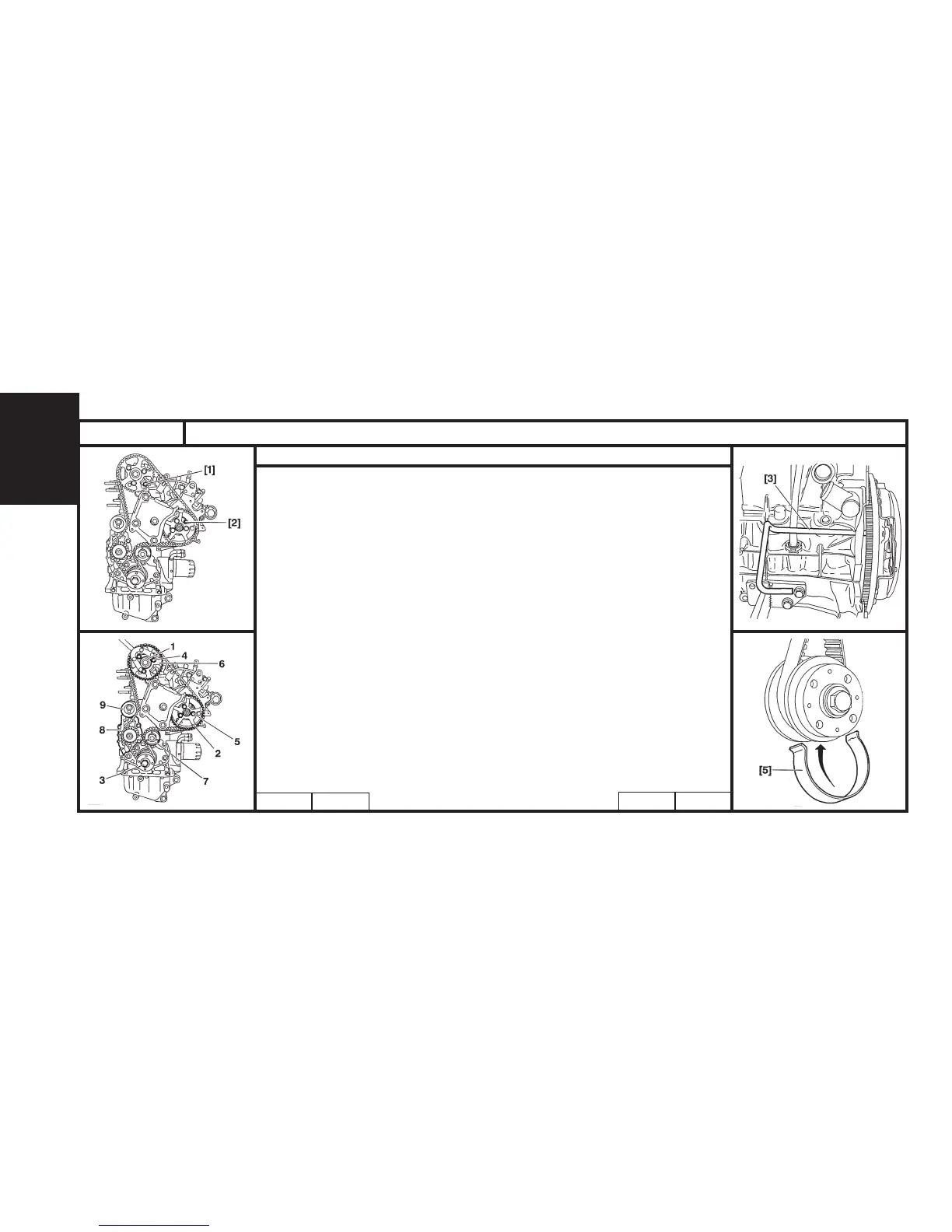

CHECKING AND SETTING THE VALVE TIMING
Engine : WJY
Setting the valve timing
Peg :
- The camshaft hub (1), using tool [1].
- The injection pump pinion (2), using tool [2].
- The flywheel, using tool [3].
- Lock the flywheel, using tool [4].
- Refit the screw (3) (without tightening it). (Coat the threads with E6).
- Tighten the screw (3) to 4 m.daN and finish by carrying out an angular tightening
of 60°.
- Remove the tool [4].
- Retighten screws (4) and (5) by hand.
- Turn the pinions (6) and (2) so that they are at the end of their stops. (Clockwise
direction).
- Place the belt on the crankshaft and hold in place using tool [5].
- Fit the belt in the following order:
Roller (7), pinion (2), pinion (6), pump (8) and roller (9).
B1EP131C
B1CP045C B1EP132C
B1EP130C
